Accuweld 2600 Silver series

Quick Learner from Pa.
Dec 7, 2016 7:04 pm
Hello,

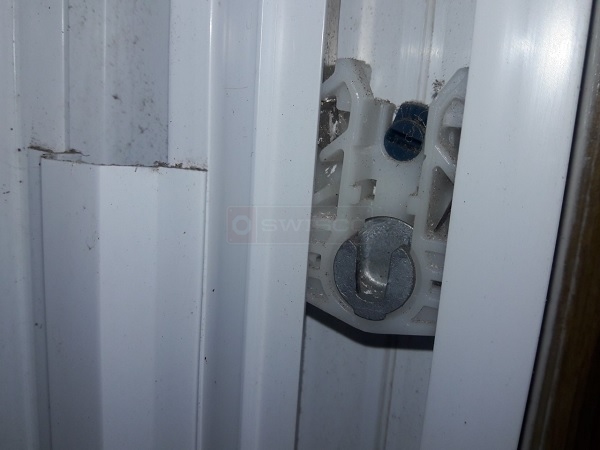

I have some Accuweld 2600 Silver Series windows with broken pivots in the coil balance shoe assembly. I have attached a photo, and it is the round pot metal piece where the pivot pin fits into. The number on the assembly is 7. Are these available? if so, can you provide the cost, please?

Thank you,
Duane
sash lock
3 Replies
+ Add a Comment
Paul
Paul from SWISCO
Dec 12, 2016 10:23 am
SWISCO
EXPERT
Hey, Duane. Please see our S140-7 coil balance. I think this may be what you need. Also see our 15-214 TamperLok, if yours is broken. If you only need the shoe by itself, and can re-use your coil springs, see our 15-215. Finally, if you also need new pivot bars, see either our 26-398 or 26-405 to start out.
Quick Learner from Pa.
Dec 13, 2016 8:01 am
Thank you, Paul. You have been very helpful! I will place my order with you shortly.

Best wishes to you and yours for the Holidays,

Duane
Paul
Paul from SWISCO
Dec 14, 2016 3:08 pm
SWISCO
EXPERT
Thanks, Duane, we appreciate it. Please let it know how it works out, and I hope you have a great holiday as well!
+ Add a Comment
Products and resources found in this discussion
Quick-Tilt TamperLok
Quick-Tilt TamperLok
15-214
$0.90
7 lb Series 140 Quick-Tilt, Single
7 lb Series 140 Quick-Tilt, Single
S140-07
$7.97
Quick-Tilt Pivot Shoe Sash Carrier
Quick-Tilt Pivot Shoe Sash Carrier
15-215
$3.38
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
