Anderson Window crank mechanism

Home Owner from Rowayton CT

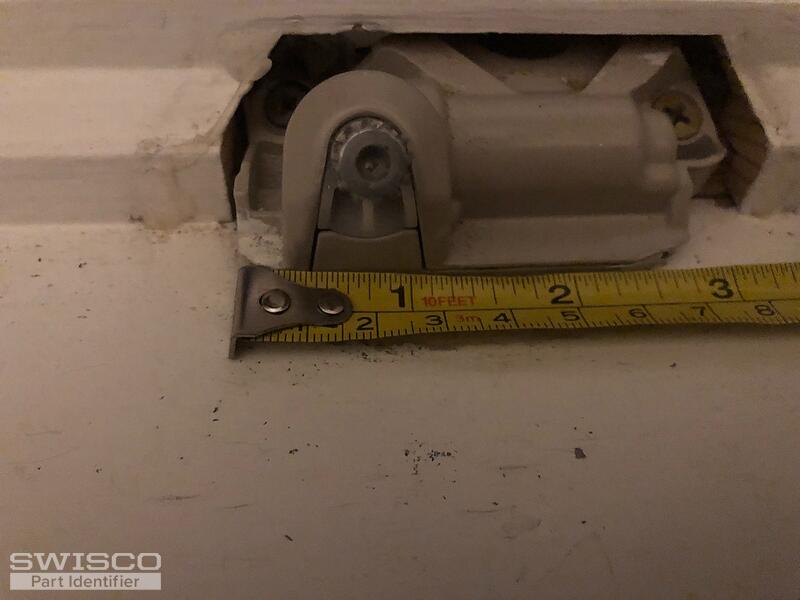

The knurled peg to which the crank adheres appears to be completely worn. I ordered a new crank handle, and that does not function. Pictures of the crank part are attached. The fact that Anderson does not make the part number easily accessible is weak.
3 user uploaded images
5 Replies
Home Owner from Rowayton CT

Additional pictures to identify correct replacement part for  Anderson Window crank. Please tell me what part I need to order to replace the defective knurled post on my Anderson Window crank.

Thanks, and hopefully the additional pictures help.

3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thanks for reaching out to us. We should be able to help with this but I'm afraid I can't ID your operator from these photos. The numbers printed on the hinge, sadly, don't tell us anything about the parts the window uses. Would it be possible for us to see a photo of your operator with the window open so that the arms that move the sash are fully visible?

Home Owner from Rowayton CT
Emily: You may not have noticed that I sent a picture of the arm in an open position, and on that arm - if you blow up the photo - you will note the following etched numbers: 1361461 7/24/14/1/A. Does that help?
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

No, the etched numbers don't help us but this new photo does! I recommend our 39-264 but you'll want to review the specifications and compare them with yours to confirm everything lines up.

Dimensions for 39-264
Dimensions for 39-264
