Anlin Window Parts

A quick learner from San Francisco says:
February 28, 2022

Hello,

I need replacement parts for 3 Anlin windows. I have attempted to attach JPG pictures but it looks like that may not have worked.

The parts nI need are; 4 Coil Balance -14, 2 coil balance 16, along balance supports, pivot shoes and 3" pivots for each of those.

I can send the pictures directly if helpful.

Thanks,

Paul

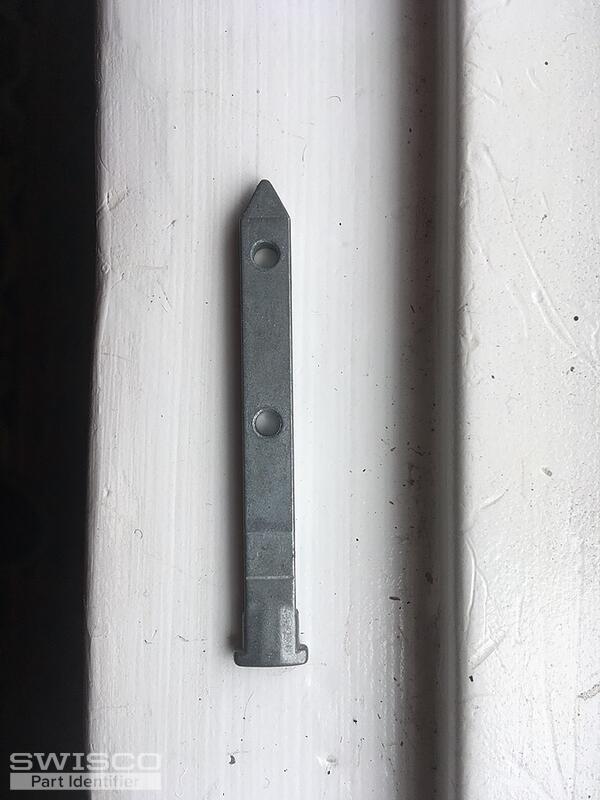

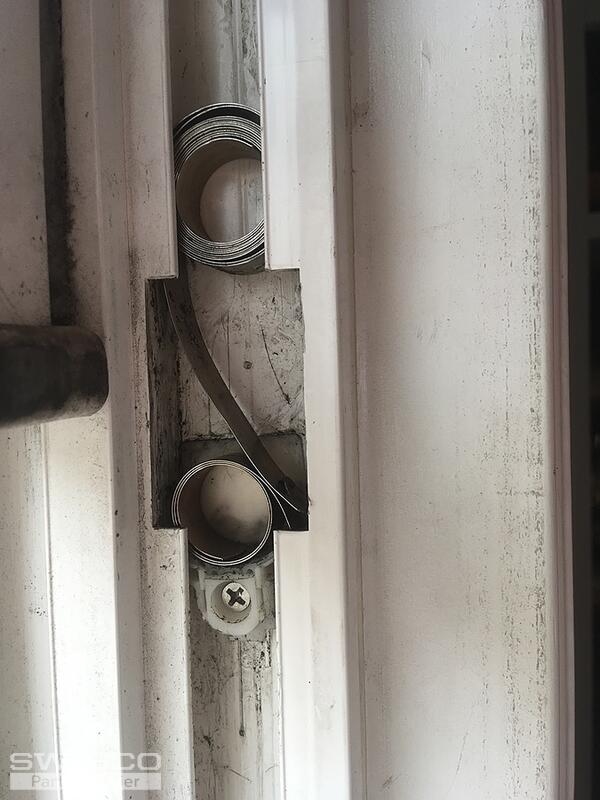

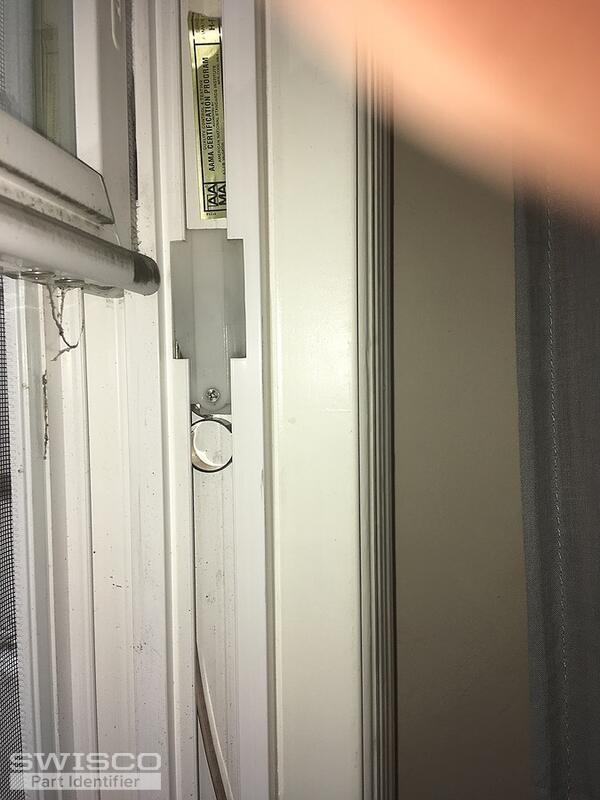

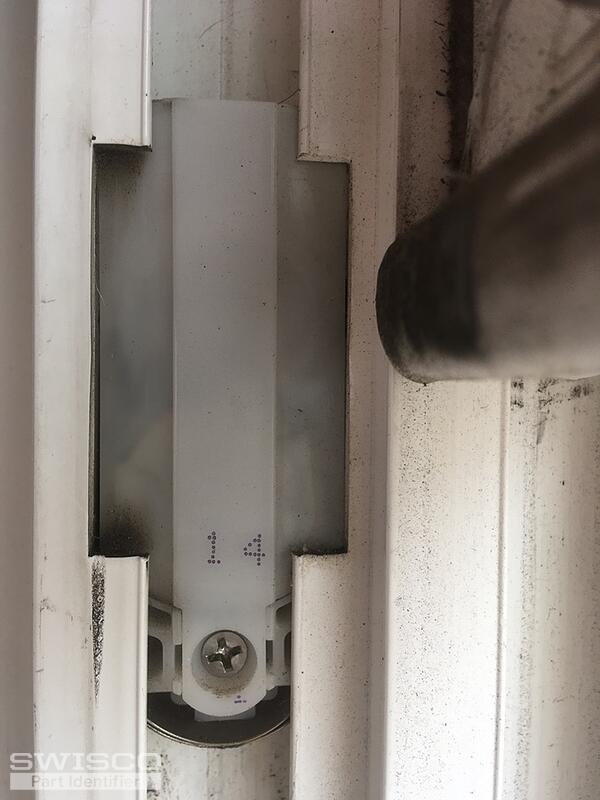

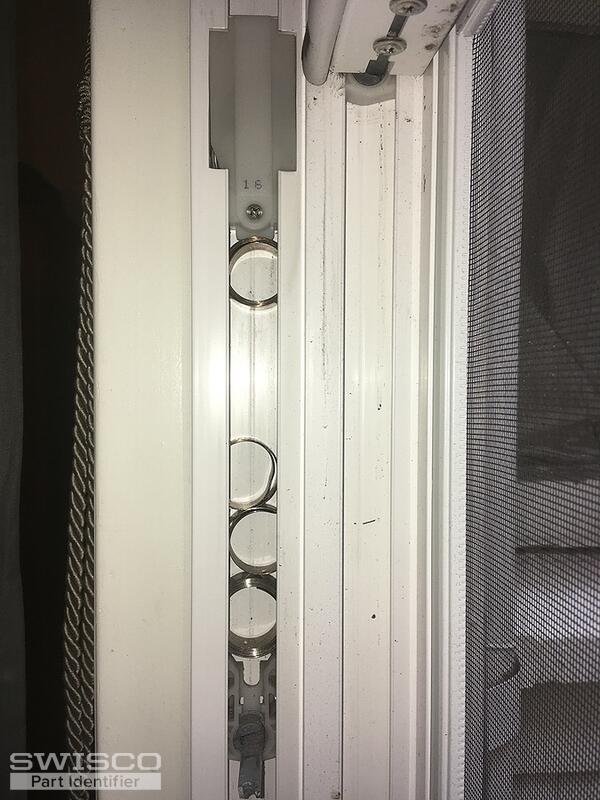

Thumbnail of the uploaded file named IMG_3345.JPG
Thumbnail of the uploaded file named IMG_3347.JPG
Thumbnail of the uploaded file named IMG_3348.JPG
Thumbnail of the uploaded file named IMG_3349.JPG
Thumbnail of the uploaded file named IMG_3342.JPG
A quick learner from San Francisco says:
February 28, 2022

One last picture.

Thanks again,

Paul

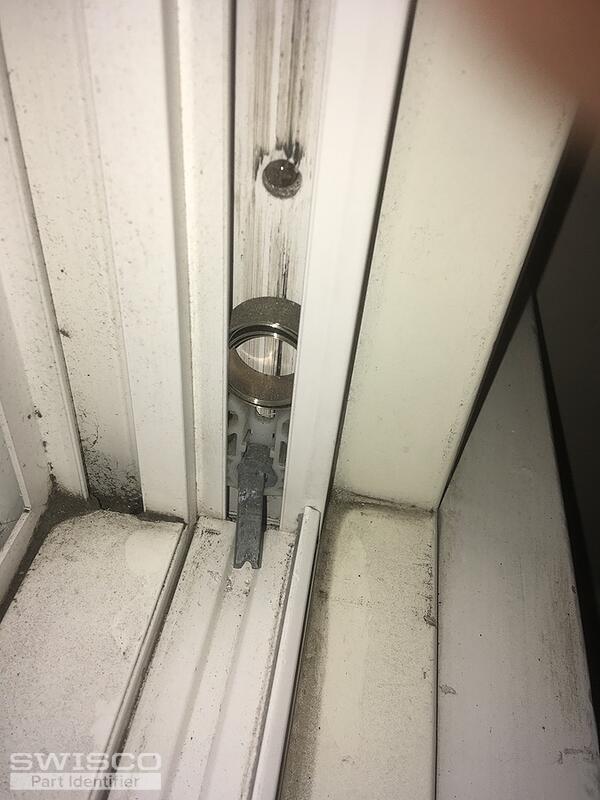

Thumbnail of the uploaded file named IMG_3344.JPG
Profile picture of Casey
Casey from SWISCO responded:
February 28, 2022

Hello,

I would recommend removing an undamaged coil balance to compare to the S140-14 and S140-16. The 26-454 pivot bar is also commonly used with the Series 140 but I would recommend making sure that at least one of the installation holes match up to yours. Thanks for posting!
14 lb Series 140 Quick-Tilt, Dual
14 lb Series 140 Quick-Tilt, Dual
S140-14
$12.58
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-454
$1.98
Tilt Window Sash Pivot Pin, 3"
Tilt Window Sash Pivot Pin, 3"
26-415
$1.97
16 lb Series 140 Quick-Tilt, Dual
16 lb Series 140 Quick-Tilt, Dual
S140-16
$12.97
