Awning Window Operator

Handy Person from Miami
Jan 21, 2023 9:57 pm

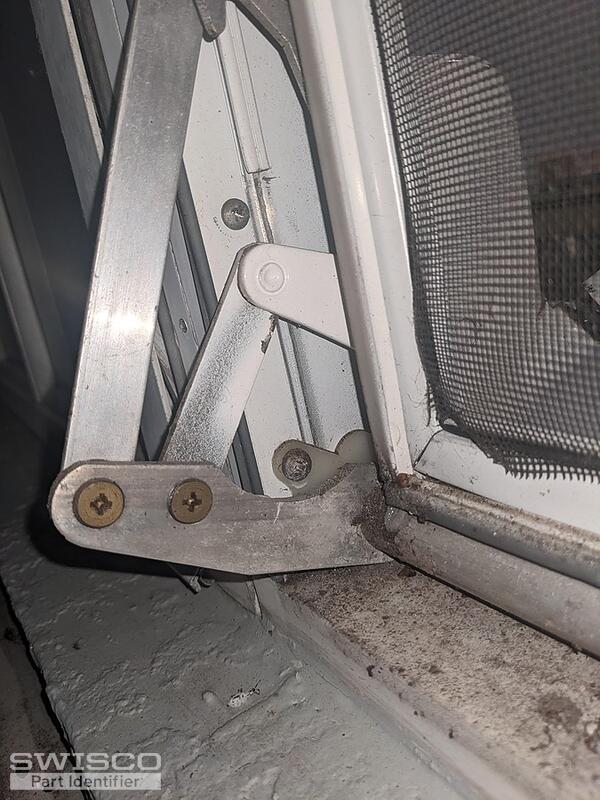

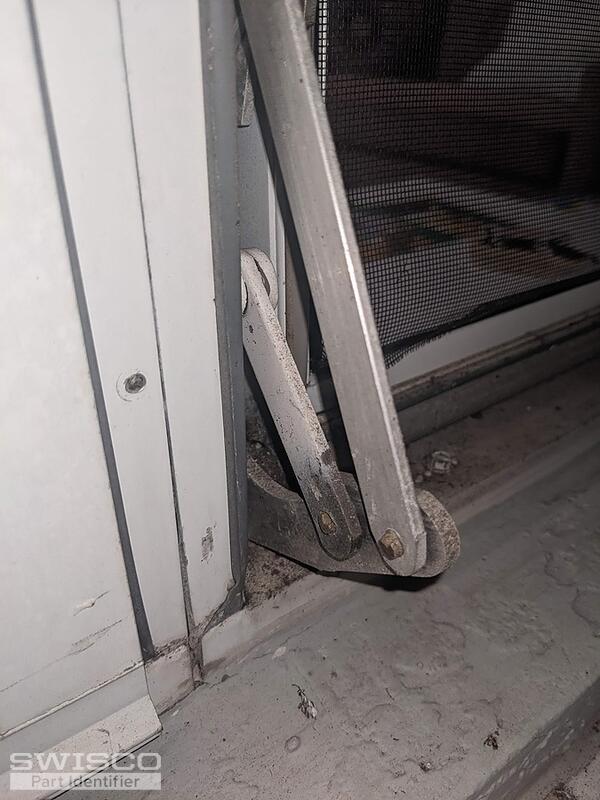

I have to awning window operators that have stopped being able to close the windows; they handle just unscrews as seen in the dissasembled photo. Inside the operator (i think that is what the part that screws into the window on the inside is called) it says "RM JHL /L1". I was unable to find any other markings on the windows, but hopefully there is a swisco part that can be used to replace my broken pieces. The "Backards L" shaped that sits flush with the window is 5 and 3/4 inches tall and 2 and 1/16 inches wide.
PXL_20230122_024100885 PXL_20230122_024143275 PXL_20230122_024149033 PXL_20230122_024221961 PXL_20230122_024250288
5 user uploaded images
3 Replies
Casey from SWISCO
Jan 23, 2023 3:19 pm


We'd be happy to look into this for you but we would need to see a straight-on photo of the operator's installation hole pattern to narrow down your replacement options. Thank you.

Handy Person from Miami
Nov 17, 2023 2:28 am

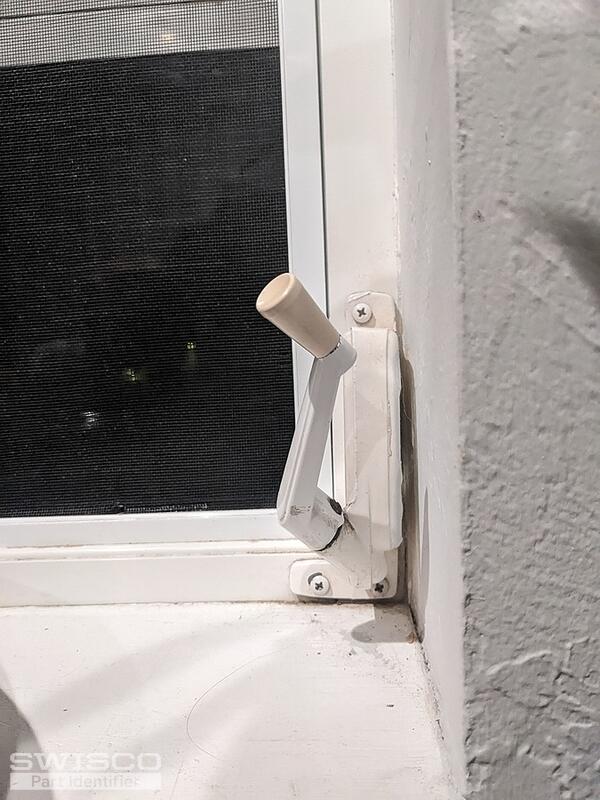

Finally getting around to posting the requesting angle.
1 user uploaded images
Casey from SWISCO
Nov 17, 2023 10:27 am

Thank you for the additional picture,

Please start by reviewing the style and dimensions of the 39-012, 39-025, 39-252 or 39-278 to see how they compare to your original. Let us know which ones matches up the best!
