Balance channel

Home Owner from Miramar Florida

Mar 4, 2023 6:39 am

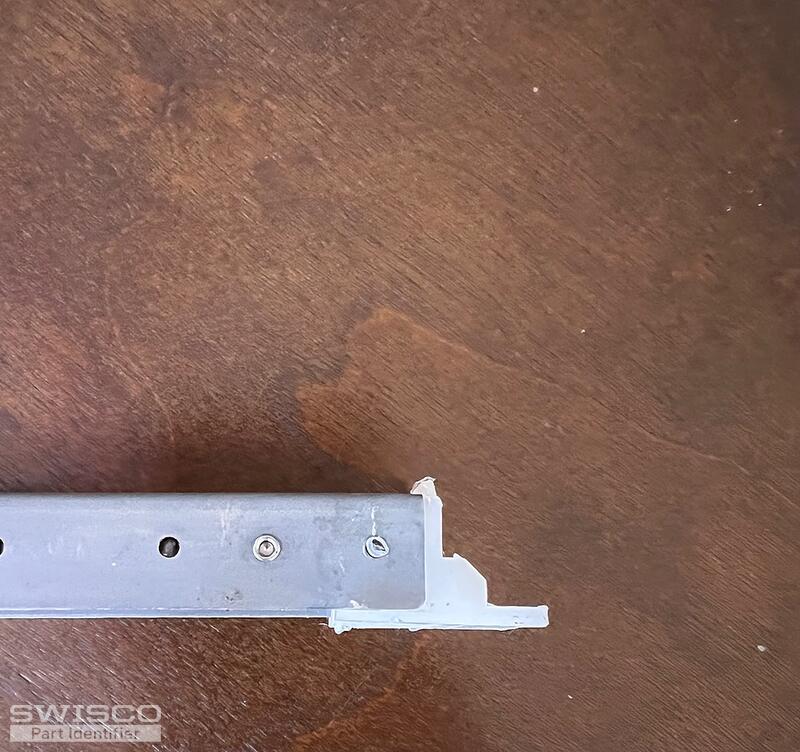

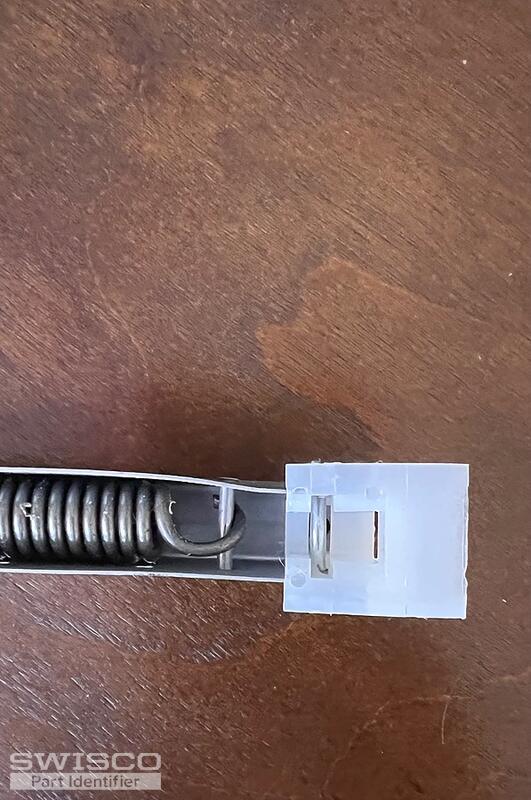

Please identify the balance channel attached. I was unable to take photos of them installed. Balance channel is 1/2"width by 28" long. Special marking is 2740. let me know if you need anything else.

5 user uploaded images

1 Replies

+ Add a Comment

Jasmine

Jasmine from SWISCO

Mar 6, 2023 2:31 pm

SWISCO

EXPERT

Thanks for reaching out! This looks like it could be the Series 377 channel balance. The top fitting looks close to the 19-018 , which is what's used with this particular balance series.

The other possible top guide would be part 19-041. Although, based on your photos I do believe you have the 19-018. Take a look at the dimensions below and let me know if they differ.

If they are the same, you'll need the S377-28 with a 2740 stamp.

Alternate view of 19-018

Alternate view of 19-018
