Balance coil replacement parts

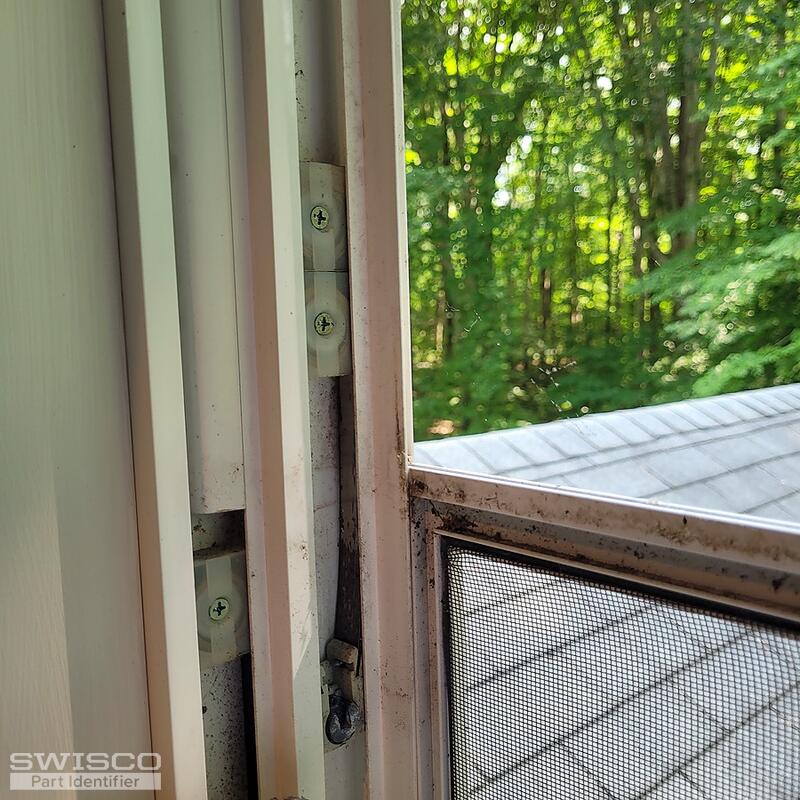

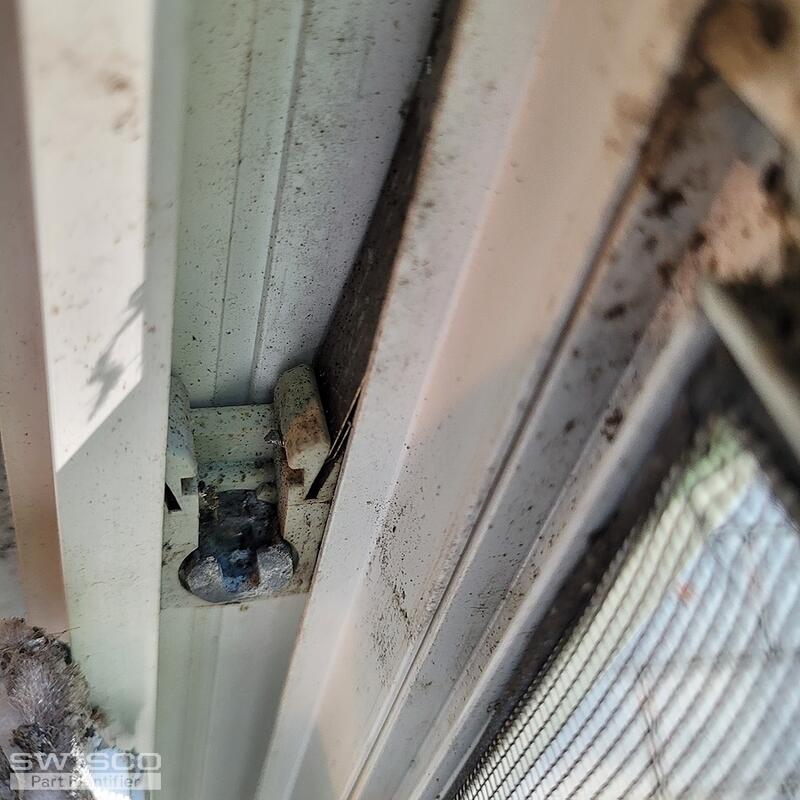

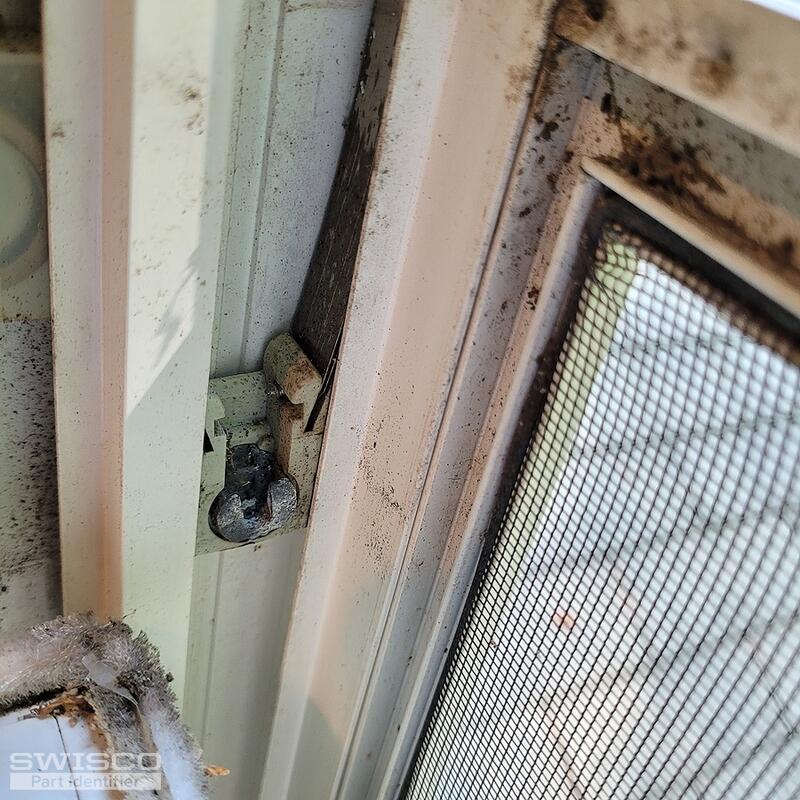

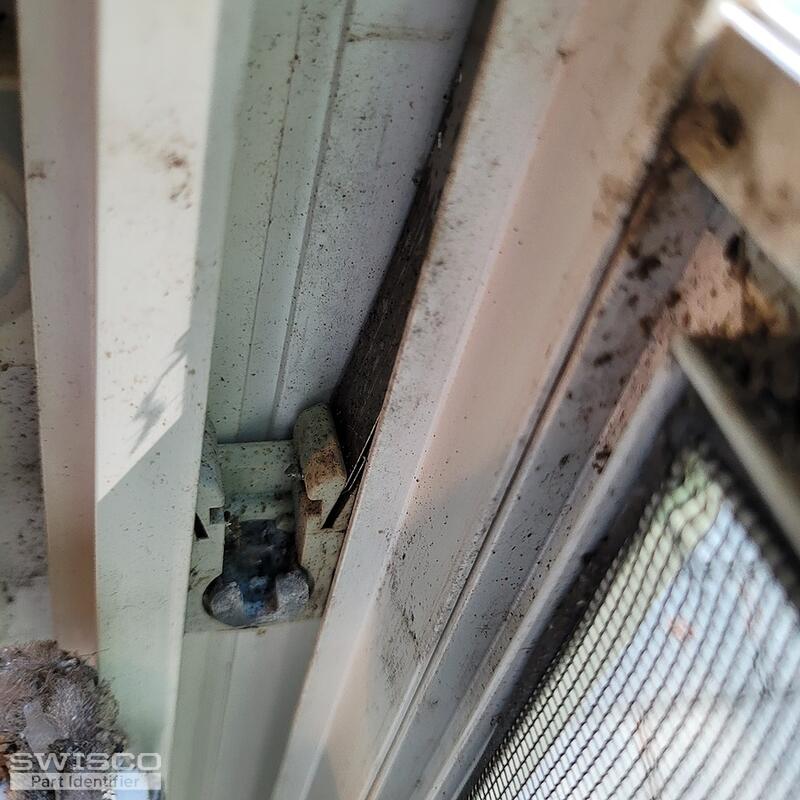

Thanks for reaching out to us. We should be able to supply this hardware for you, or at least modern equivalents, but before I go any further I'd like a clearer picture of the pivot shoe. It's a little obscured in your photos so I'm not 100% sure what that might be.

It looks like it could be a match for our 15-177. If so, you can use this pivot shoe and the Series 152 coil spring. I'd recommend reusing your old spring covers.

Thanks! That does appear to be our 15-177 pivot shoe, which is compatible with the Series 152 as described above. Your next step is to compare the design and dimensions we show for this product to your original shoe to verify. You'll also need to choose the proper weight rating for the Series 152 spring; to do this, remove the original spring and reference the number printed on the band. It should be close to the screw hole.

Your covers appear to be in good condition so they can be reused. All orders can be placed directly on our site at your convenience.
