Balance replacement, 34" long, 1/2" deep, 9/16 wide, rd corners

Home Owner from SC
I need to replace my window balancer. It is out of a MW window produced in Feb 2006. It is a tilt window. The channel itself is 34" long, and has the stamped marking 34C. I think i found the balance in your catalog, but nit the correct ends. I have attached photos for ref. Can you advise me what i need to order? I guess its better to order 2 since the other balance will follow suit and need replacement down the road.

The balance is 34" long x 1/2" deep x 9/16" wide, rd corners, and stamped with 34C. It is a MW tilt window,

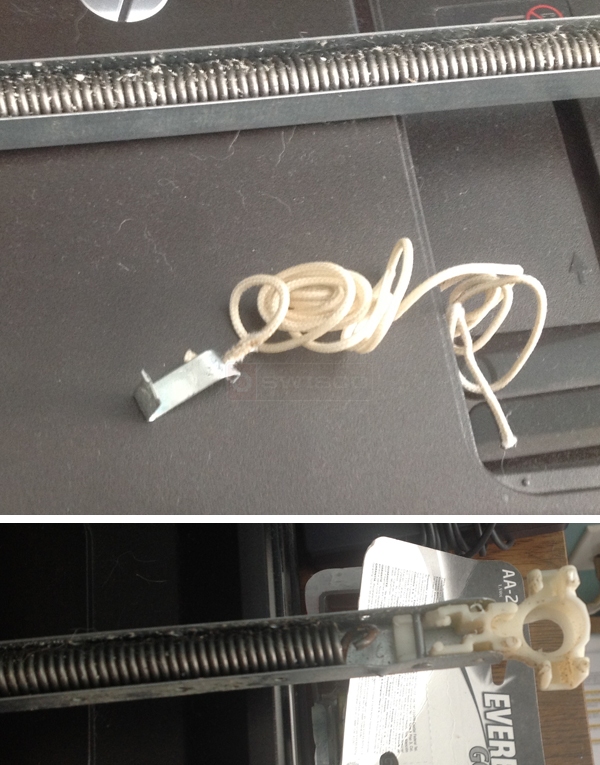

User submitted photos of a window balance.
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
I think we can help, yes. The balance itself closely resembles our S795-34. See what you think. There is one important difference, however: it appears your top clip is a hook, rather than a screw-on tab. We can make a special type of S795-34 with a 15-198 attached on top, but it will need to be custom made. Would that work for you? If so, let me know and I can send you a price quote and order link for 2. You can use that link to place the special balance in your cart.
Home Owner from SC
Hi Tom, I tend to agree S795-34 w/ 15-198 attached to the top looks like a winner to me. Yes, pls send me quote and link for 2 units. Is it because of the 15-198 that makes it custom?

Thanks in advance,
Frank
Tom
Tom from SWISCO
SWISCO
Expert
Sure thing, I'll shoot over a link immediately. In answer to your question: yes, it needs to be custom made because of the top hook.
