Balancer

Quick Learner from Waco, TX
Mar 26, 2024 6:46 pm

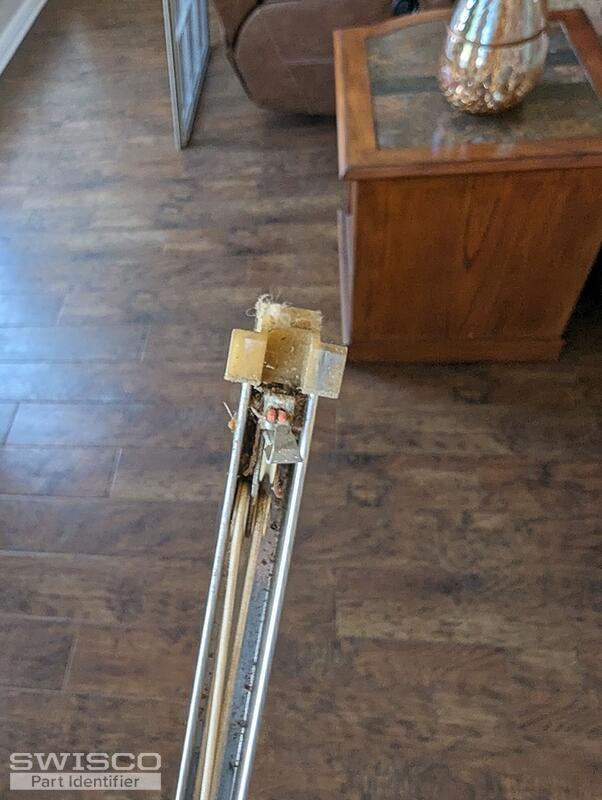

This is from a Krestmark aluminum window from around 1990. I am a custom home builder but this is in my personal house.
PXL_20240326_214917797 PXL_20240326_214913181 PXL_20240326_214859487 PXL_20240326_214853720
4 user uploaded images
1 Replies
Bob
Bob from SWISCO
Mar 27, 2024 9:54 pm
SWISCO
EXPERT

Thanks for posting. At first glance, this looks either a Series 380 or Series 385 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel' to 'toe' measurement. See the diagram below for reference. Measure the depth of your old balance's shoe to determine which you need. Let me know if neither seems right.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

To determine the length of the balance, measure the metal channel. Do not include the end attachments in that measurement. Finally you will need to choose a stamp option, which designates the strength of the balance. To choose a stamp option, look for a stamp on the metal channel. Let me know if you have any further questions or issues.
