Bi fold closet door, 70 in track -

Quick Learner from Ohio
Hello!

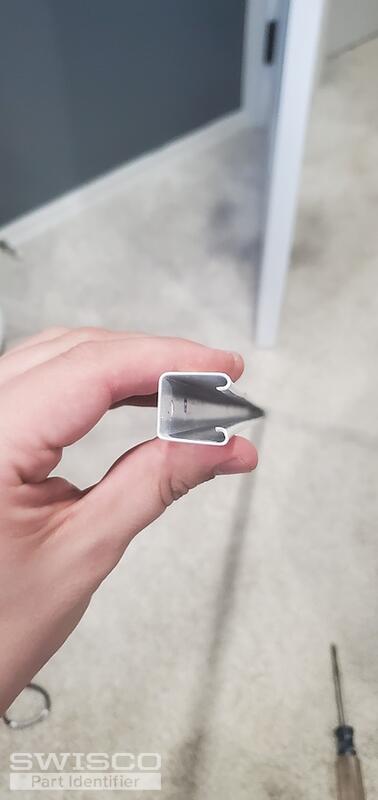

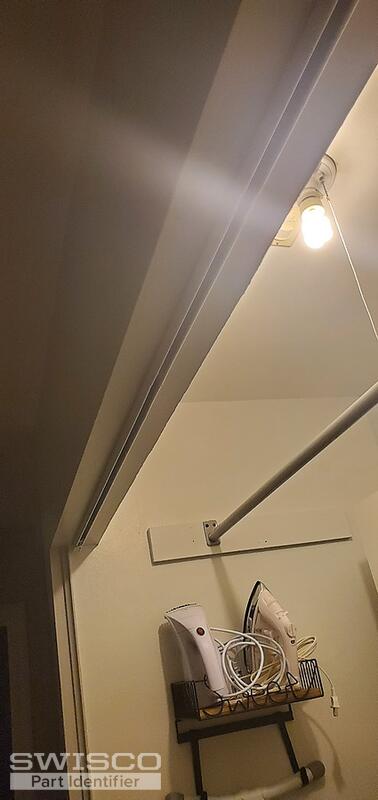

Need help identifying what pivot ( the part/panel of the door hung in the middle for each of the two panel doors) I need. The track is .75 in wide, and has small lips on the bottom to catch whatever pivot is inserted. I will have to unscrew the track to add the pivots I think.

Any help is appreciated.
2 user uploaded images
7 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I'm afraid it's not possible to identify your pivot based solely on the track. The only way we can help is to see the pivot itself, ideally removed from the door and without obstruction. Would that be possible?

Quick Learner from Ohio

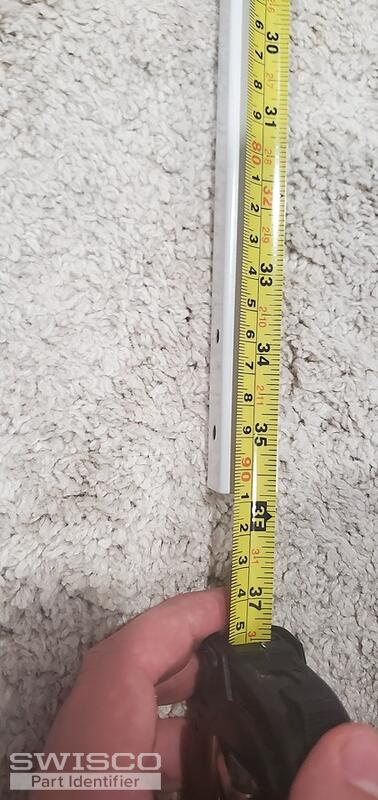

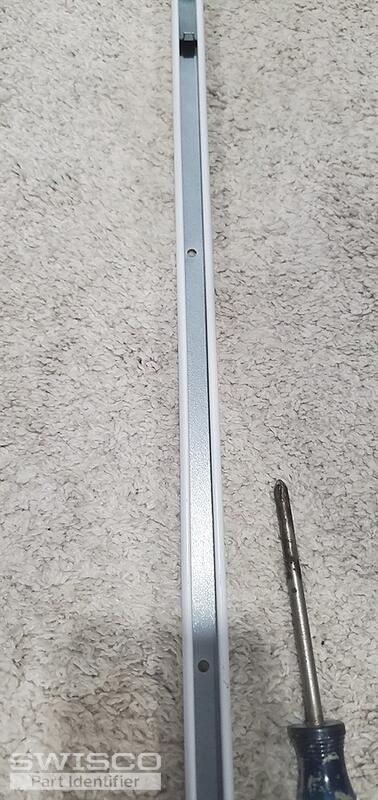

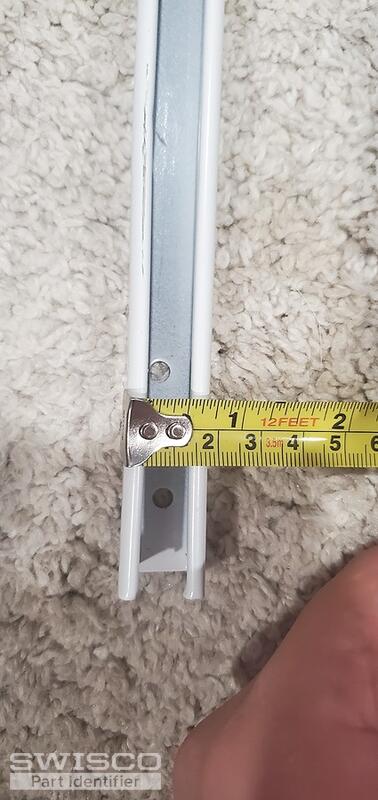

Hello, sorry for the delay! I took off one track! Hoping this helps.

VR,

Michael

5 user uploaded images
Quick Learner from Ohio
(This is just one of the two tracks)
Tom
Tom from SWISCO
SWISCO
Expert

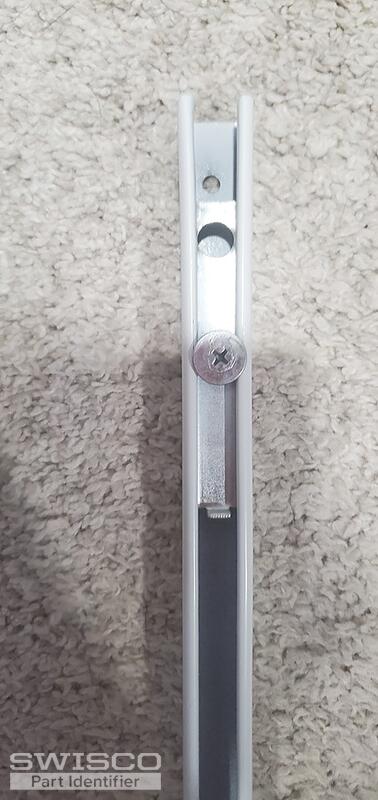

Thank you. I think I might have been mistaken earlier; I thought you needed a pivot, but I see now that you need a pivot bracket.

We unfortunately don't sell this exact style but it strongly resembles our 23-306. Review its dimensions and see if they align with your original. I would say this is probably the best match in our inventory.

Dimensions for 23-306
Dimensions for 23-306

Quick Learner from Ohio
Thanks again for your reply!

Just to be sure, this is the one that will be mobile (assuming it fits,) -- the other two in the pictures do not move and are at the ends for the stationary portion of the door (it folds towards those two brackets that are welded into place.)

This part referenced would be the one that slides when it is open/closed towards/away from the middle.

Thanks again!

VR,
Mike
Tom
Tom from SWISCO
SWISCO
Expert

Yes, the 23-306 guide slides along the track as you open and close the door. It's the piece that the pin fits into.
