Broken shoe on track

Handy Person from Maryland

Jan 6, 2016 7:10 am

The shoe has a metal post that comes out of it that goes into the window itself. It rotates to allow the window to tilt in. Need either a replacement shoe or the whole track.
Thanks

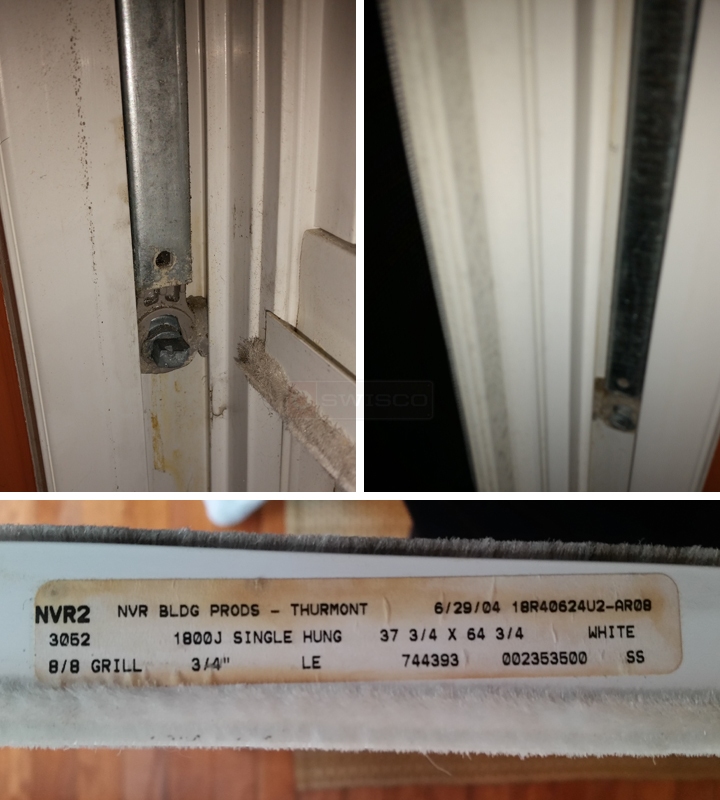

User submitted photos of a window balance.

5 Replies

Handy Person from Maryland

Jan 6, 2016 7:11 am

another picture

Paul from SWISCO

Jan 7, 2016 1:43 pm

Please see our Series 795 channel balance. I think this could be a good replacement for your hardware.

Quick Learner from Maryland

Jan 7, 2016 6:44 pm

what about the metal piece that comes out of the shoe? I don't see that on the webpage for a series 795. is that the pivot bar that you buy separately?

Paul from SWISCO

Jan 11, 2016 9:55 am

It sounds like you're describing the pivot bar, yes. It is sold separately. I do not know what you have, since the Series 795 can work with many different pivot bars; it would depend more on your sash. You could start by looking at our 26-021, but the only way to be sure is to see a picture of your pivot bar. I would also need your measurements.
