Bufold closet mirror door - missing hardware

Home Owner from Mandeville, LA
Oct 14, 2023 11:59 am

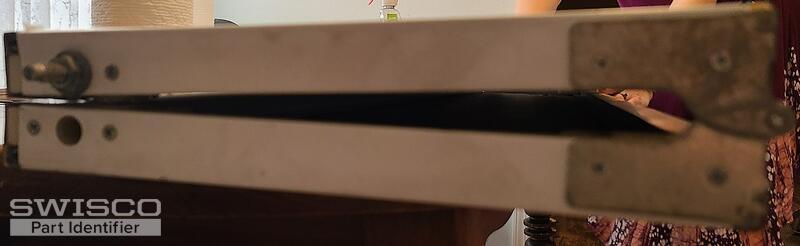

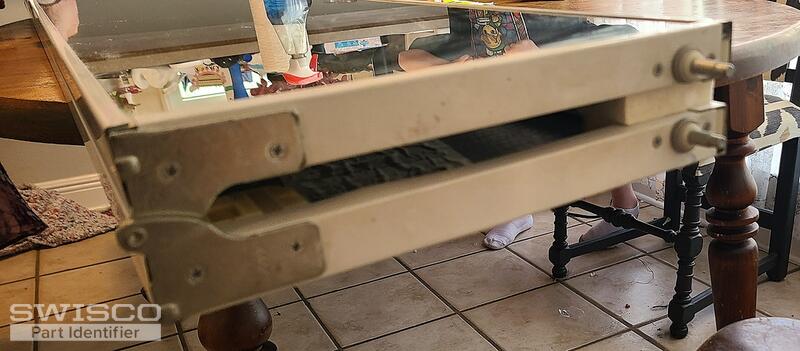

Bought this 24"x78" bifold mirror door at a thrift shop and it's missing all the hardware. Given the mounting locations, and the retracting pins on the bottom it looks like it may need more than a regular track and rollers from home depot. Any suggestions?
20231014_104822 20231014_104812 20231014_104803 20231014_104019 20231014_103957
5 user uploaded images
1 Replies
Paul
Paul from SWISCO
Oct 15, 2023 9:54 pm
SWISCO
EXPERT

Thank you for writing in to us. From the way the pins are set on your door, it looks like the builder used a top track and a bottom corner pivot bracket, which is certainly unusual. You can use our 21-450 top track. It comes with the pivot bracket and nylon roll guide. You will need the 21-286 snugger at the far end of the track to help keep the door closed. For the bottom pivot bracket, see our 23-301. The main adjustment of the door will be 23-113 bottom corner door pivot. Let me know if you have any other questions.
