CHANNEL BALANCE

A contractor from collierville, tn says:
January 25, 2023

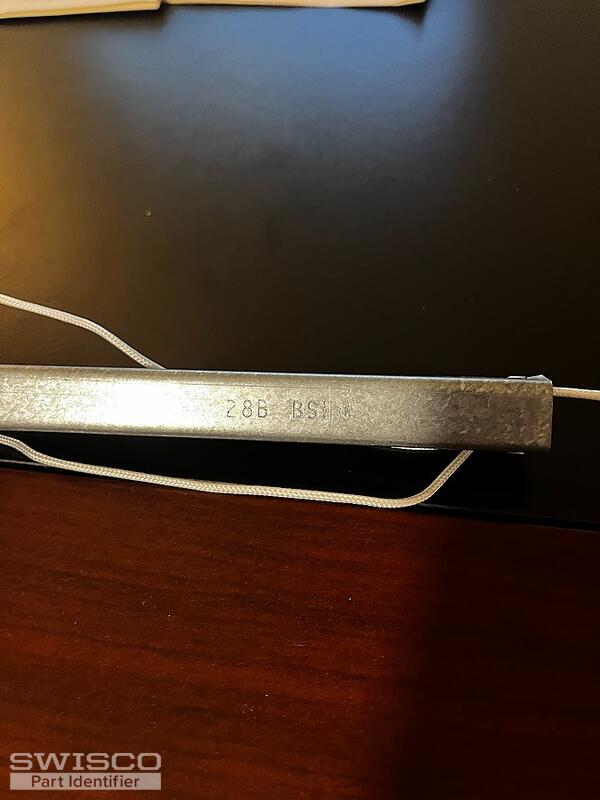

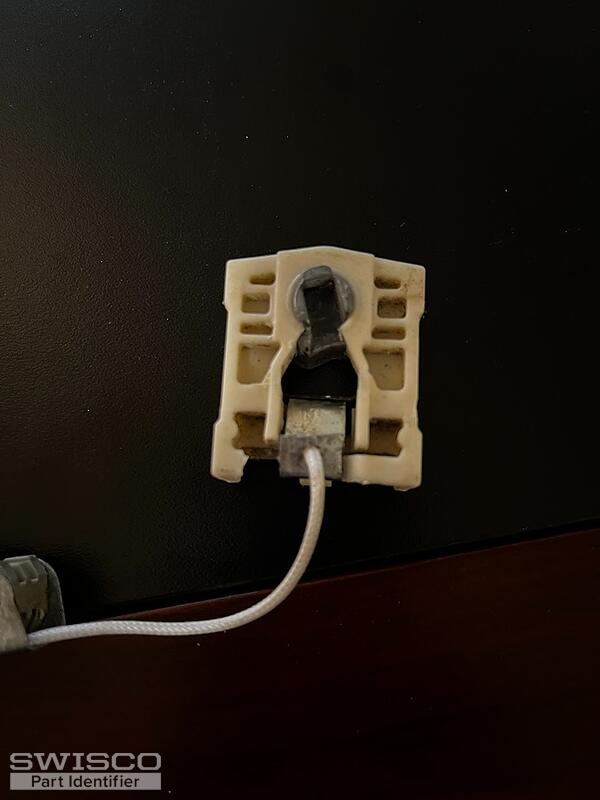

I have a 28" long channel balance with the T-lock pivot shoe 15-216 attached to the end. This balance is the closest match I can find but it does not have the curved clip on the end to attach to the pivot shoe. Is this a custom balance?
Thumbnail of the uploaded file named image_50407681.JPG
Thumbnail of the uploaded file named image_67133185.JPG
Thumbnail of the uploaded file named image_67147009.JPG
Thumbnail of the uploaded file named image_67172865.JPG
Thumbnail of the uploaded file named image_67141889.JPG
Profile picture of Emily
Emily from SWISCO responded:
January 26, 2023

Thanks for reaching out to us! Your balance's configuration would indeed need to be a custom order. To assemble your replacements, we'll use the S770-28 with a 28B stamp and swap out the bottom terminal clip for our 15-170. If this sounds good to you, let me know the number of balances you're looking to order and I can draft a price quote.

Your pivot shoe looks like a better match for our 15-169 but review the specifications and see what you think.
A contractor from collierville, tn says:
January 26, 2023
Yes, the pivot shoe 15-169 is a better match. I need 6 of each product. Please send me a quote. Thanks!
Profile picture of Emily
Emily from SWISCO responded:
January 26, 2023

You got it! I'll email you an order link right now. I can't include the 15-169 pivot shoe in this link so don't forget to add your desired quantity to your cart separately.

If you have any questions just let me know!
28" Series 770 Balance
28" Series 770 Balance
S770-28
$12.70
Snap-on clip
Snap-on clip
15-170
$2.45
Snap-Lock Pivot Shoe
Snap-Lock Pivot Shoe
15-169
$2.57
