CHANNEL BALANCES

Quick Learner from California
Dec 1, 2012 5:07 pm
Hello, I need to first identify my channel balances. I then need to order 4ea.
I tried to order them off of your catalog but they look like they may not be standard.
Mine are 24" long 1/2" channel (metal channel only) with a #19-005 Top and #15-001 Shoe.

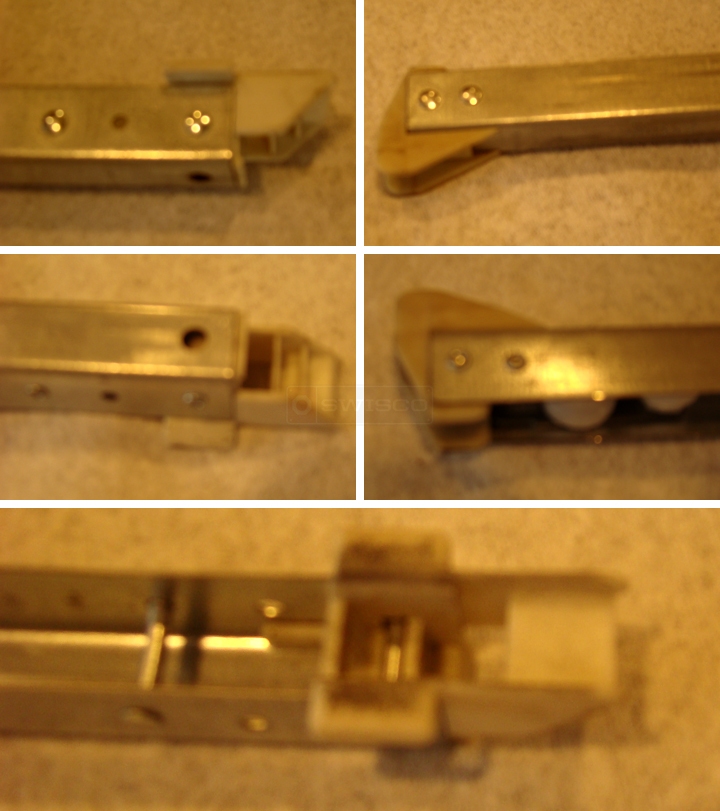

User submitted photos of a window balance.
3 Replies
Paul
Paul from SWISCO
Dec 3, 2012 12:33 pm
SWISCO
EXPERT
Good afternoon, and thanks for posting! With a winged top attachment and non-winged bottom attachment, I'm afraid that your balance does not match any of our standard Series. It will have to be custom made. Before we can begin, though, can you first tell me what the number printed on the metal channel reads? This will tell us what option you need, and should be the last step. Thank you!
Quick Learner from California
Dec 5, 2012 11:00 am
Thank you for getting back to me quickly, the number stamped on the back is #2330.

Thx,
Steve
Paul
Paul from SWISCO
Dec 5, 2012 3:21 pm
SWISCO
EXPERT
Thanks, Steve! Take a look at the S395-24 with the 2330 option. This balance should be a perfect match for the old window balance you are replacing.
