Caldwell 27-4

A home owner from Nevada says:
Hello,

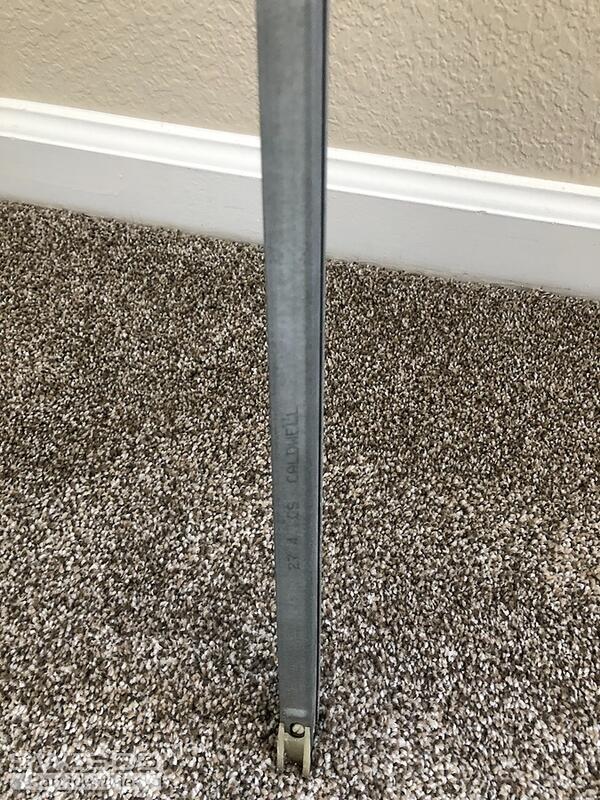

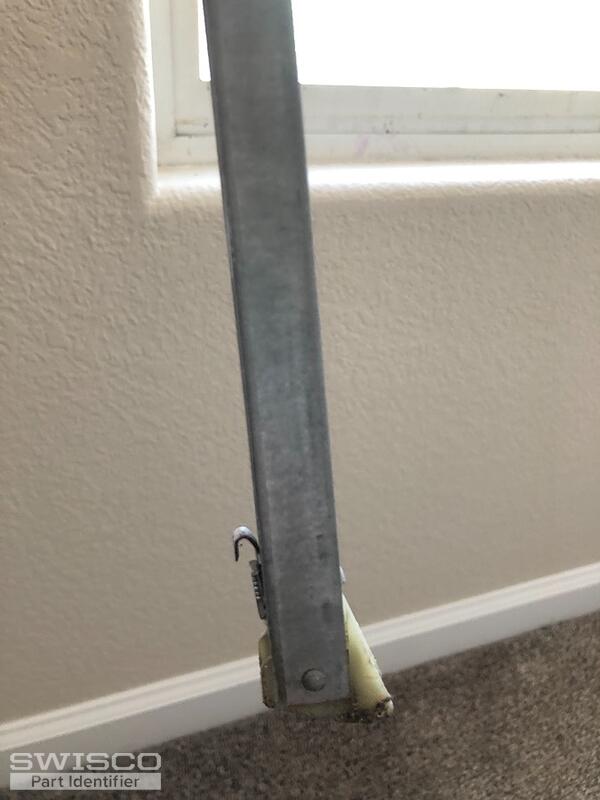

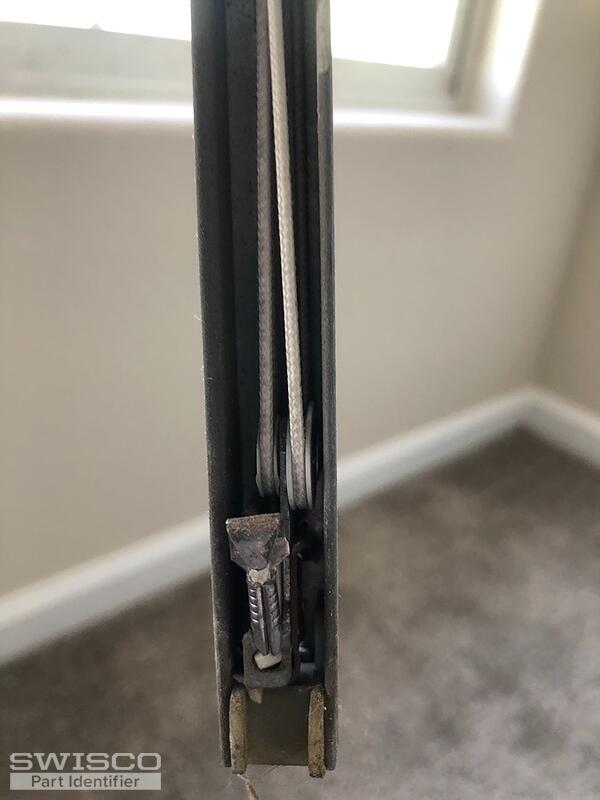

I am looking to replace these original balances in the windows.
Length is 28" not including plastic.

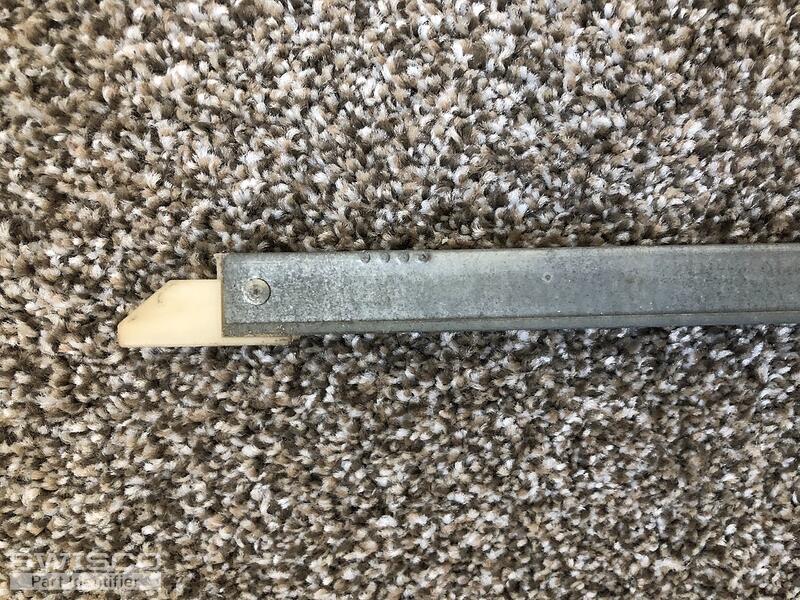

Had some trouble measuring the plastic part but it seemed to be a little longer than an inch.

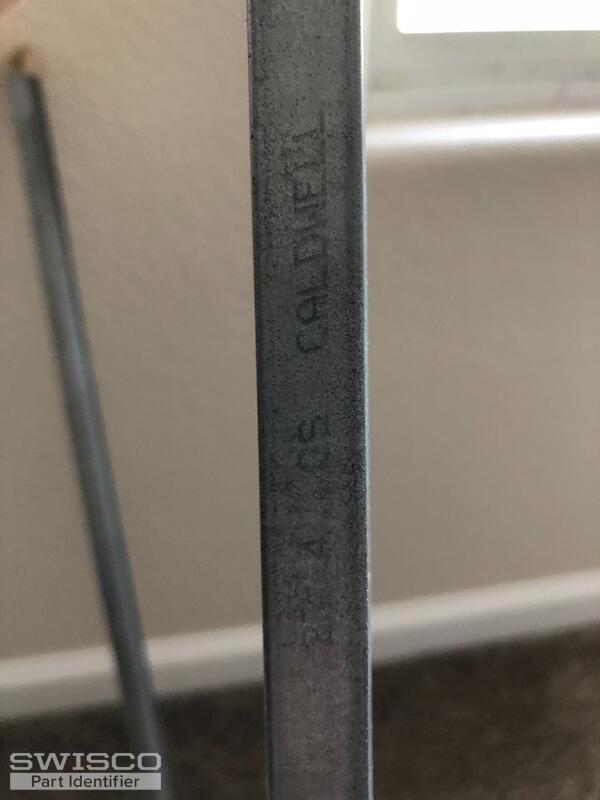

Stamp: 27 4 OS CALDWELL

Thanks!
Thumbnail of the uploaded file named BD506108-D267-427B-8588-ED943ADFC31A.jpeg
Thumbnail of the uploaded file named 77CE455C-16C5-4984-A103-059BD38E235C.jpeg
Thumbnail of the uploaded file named 5DFAB333-3E4B-47A6-BF8E-8E3C28431987.jpeg
Thumbnail of the uploaded file named 31F949BA-4D1B-43F7-9B27-29EB9327957E.jpeg
Thumbnail of the uploaded file named CB4D8C9F-559A-4277-85A7-905B448792C6.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like your balance attachments do not have wings. If so, you could have either our S351-28, with a 15-002 bottom attachment, or S390-28, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2740 spring strength option for your replacement balances. Thank you!


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
A home owner from Nevada says:

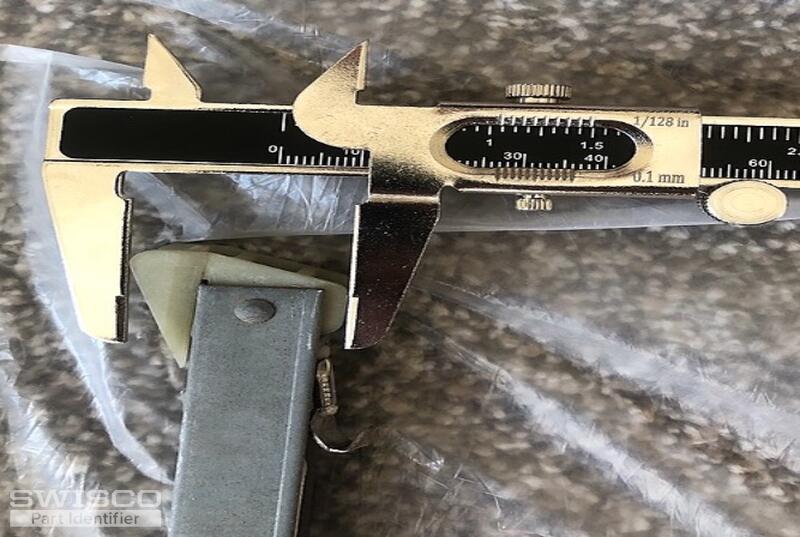

Thanks for the response. I measured the bottom several times and I keep getting 1 1/16" so I'm not sure which option is best. I'm thinking it's probably closer to the 1" but wanted to check.
Thumbnail of the uploaded file named 3894202E-DBBD-42E2-9BBC-AB320BCC3E7E.jpeg
Profile picture of Tom
Tom from SWISCO responded:

If your shoe depth is only 1-1/16" then odds are it was originally 1-1/8" and just wore down from constant friction. It happens all the time. I think the Series 390 that Casey recommended is what you want.
