Caradco window

A quick learner from New Jersey says:

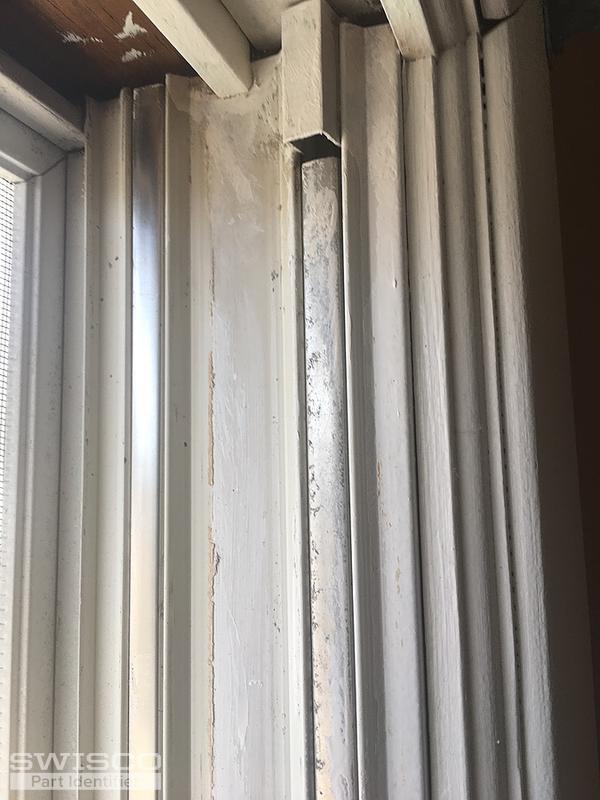

The top back pane of my window does not stay up immediately slides down. The attached photos are top/bottom left and right. There is a stamp on the window that says caradco corp 12/81. There is also the word Bendix stamped or engraved on the metal portion in between the two glass panes. Thanks for your time and i hope you can help.
Thumbnail of the uploaded file named 71C5AC7E-9270-41CC-AA61-28DEFD5A84B3.jpeg
Thumbnail of the uploaded file named C25F5C05-9FF4-4AE1-BDCC-DAD65D5C00AE.jpeg
Thumbnail of the uploaded file named B241492C-25CA-43C1-9F83-CB4CD924C8E6.jpeg
Thumbnail of the uploaded file named 114CDB35-5CBC-425E-B84E-486D0652C1E5.jpeg
Profile picture of Tom
Tom from SWISCO responded:

It definitely sounds like you need a new balance, but I can't tell what you have from these photos. There should be a shoe of some kind under the balance. Can you show me a photo of that? That ought to be the clue i need to find out what this is.

A quick learner from New Jersey says:
Thanks for the response. Is there a video of how to do that?
Profile picture of Tom
Tom from SWISCO responded:

I'm not sure what you mean. We don't have a video on how to find a balance shoe in particular. All you need to do is look for whatever part is under the balance in the track. Every channel balance like yours has a cord that pulls out of the bottom; at the end of that cord is a shoe of some sort, usually a square or rectangular piece of plastic. That shoe is a huge clue as to what balance Series you need.

A quick learner from Rockaway nj says:

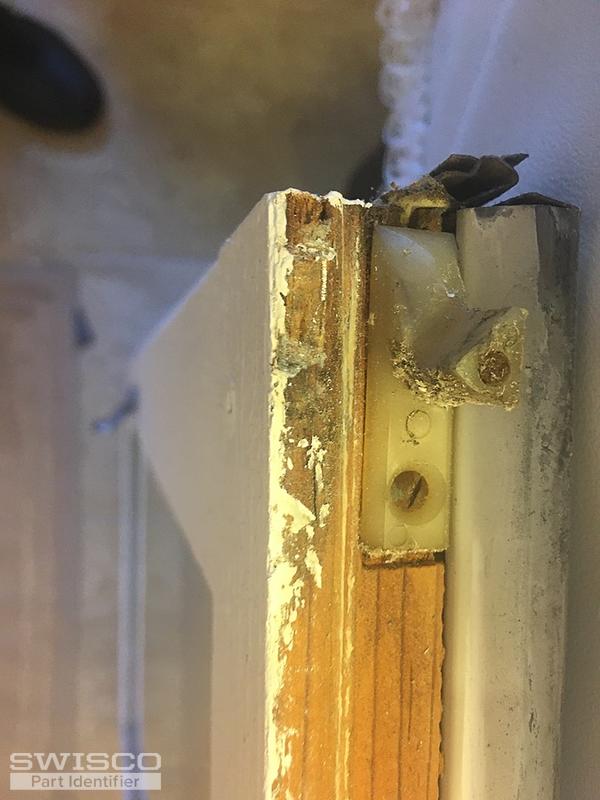

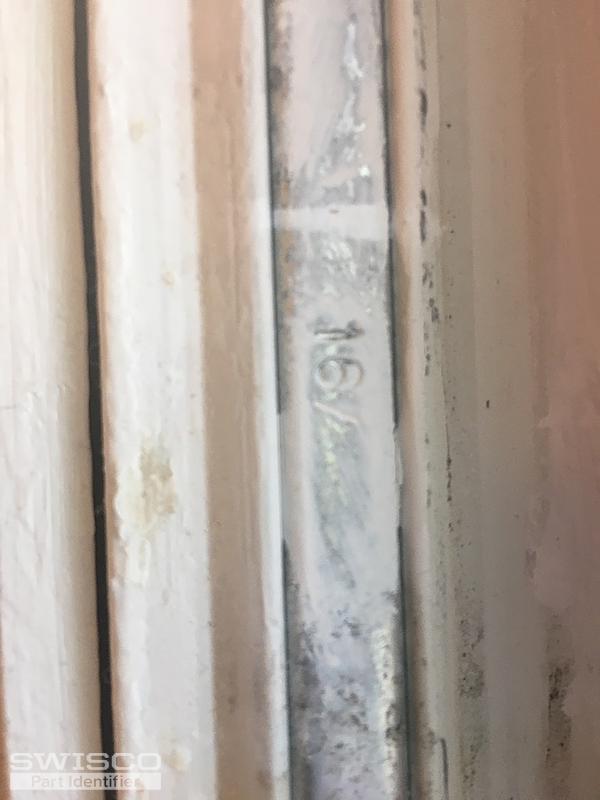

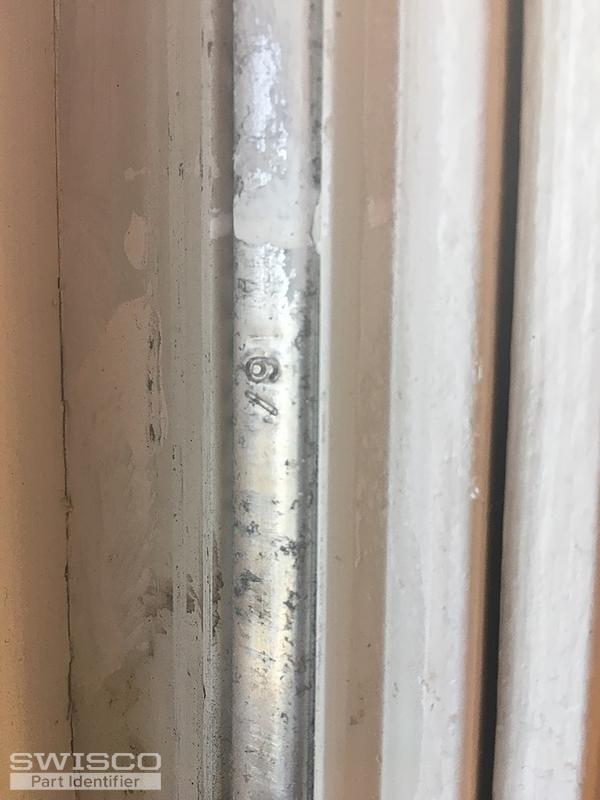

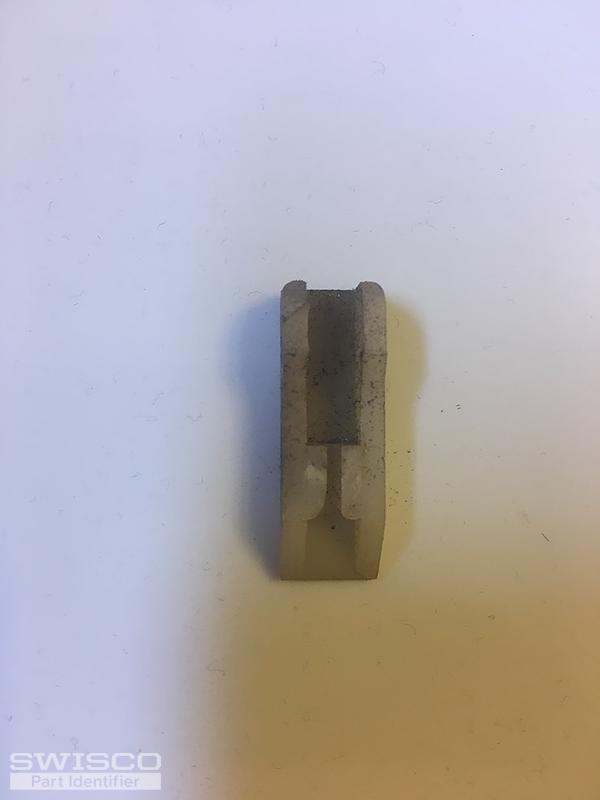

Found another stamp looks like 16/ ? Also found the plastic piece in the back channel. I hope you can see the shoe.

Hope this will do it.Thanks

Thumbnail of the uploaded file named FB662016-E1EC-4CDD-81B8-5C78817031B6.jpeg
Thumbnail of the uploaded file named 8B2B18C6-525A-49BB-A0EA-646DCC219D13.jpeg
Thumbnail of the uploaded file named 6C5A7437-1D72-4F54-9F9E-353218903D6C.jpeg
Thumbnail of the uploaded file named 6006ED2B-C1E5-463F-9C2C-09037586BF2F.jpeg
Thumbnail of the uploaded file named BF94A3F7-3FB6-4BCF-88BD-A28273A4508F.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Your photos are unclear, but I think your balance might be a match for our Series 751. Please look over the photos and information we show for this product and compare it to your original to confirm that everything matches up.
