Casement window handle and cover

Home Owner from Sacramento, CA
Apr 12, 2015 7:32 pm
Minimal markings, unfortunately. 3/8" spline

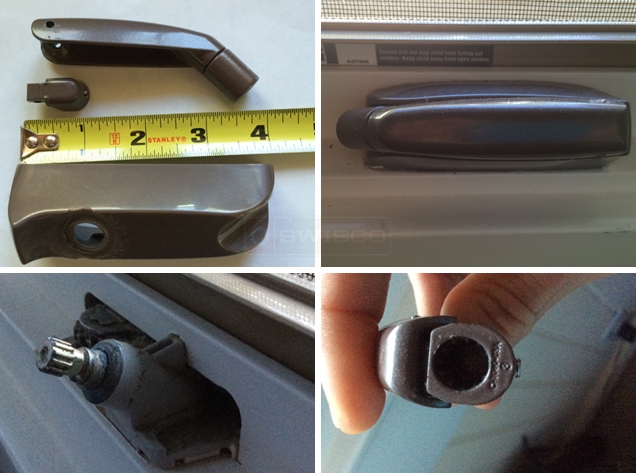

User submitted photo of their window operator.
3 Replies
Tom
Tom from SWISCO
Apr 14, 2015 1:49 pm
SWISCO
EXPERT
We do carry the 39-375 folding handle with cover, which works on the same idea as yours, but its spline is 11/32", not the 3/8" you need. Can you confirm your measurement? We also have the 39-403 and 39-404, which have 3/8" splines, but they are specifically meant for Pella windows. What brand of window do you have?
Home Owner
Apr 14, 2015 3:58 pm
Hi, thanks for you reply. It is 3/8" spline. I hadn't measured correctly and ordered 11/32" which doesn't fit. I don't know the window brand as they were installed before we purchased the house.
Tom
Tom from SWISCO
Apr 15, 2015 12:51 pm
SWISCO
EXPERT
Could the 39-403 and 39-404 work for you?
