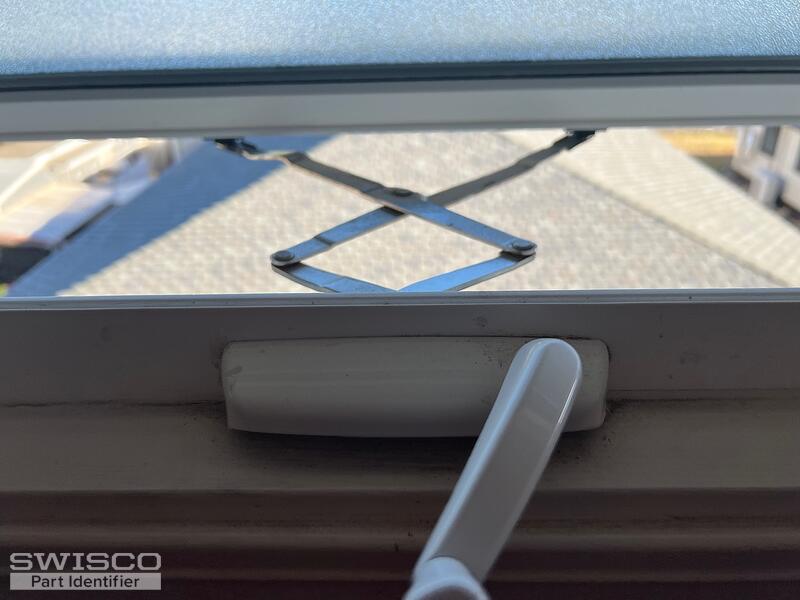

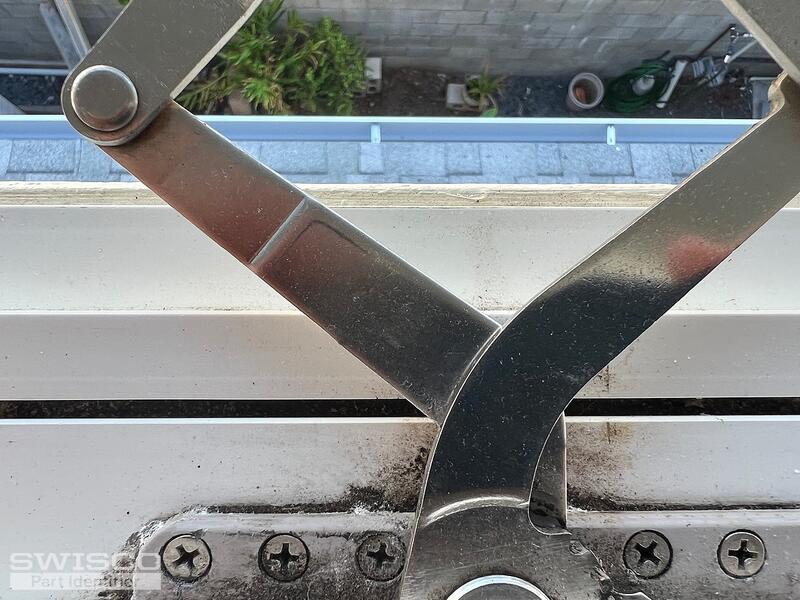

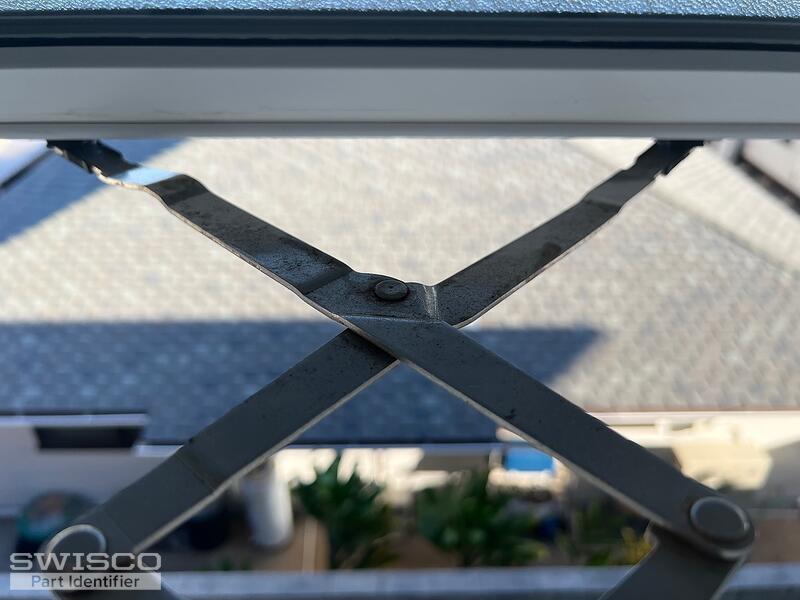

Need to replace, one of the operator is corroding. There was a sticker with the following numbers-series, 700, AP-C40-49x96, Hope this helps . Thanks
Certainteed awning window roto operator
Quick Learner
Jun 30, 2023 12:49 am
3 user uploaded images
4 Replies
Jasmine from SWISCO
Jun 30, 2023 1:04 pm
Thanks for posting! Your awning window operator appears to be similar to our 39-239C Encore Awning Operator. This operator is stainless steel so it may help with the corrosion you are experiencing with your current awning operator. This operator is compatible with either the 39-375 folding or 39-451 non-folding handle and cover kits.
You may also need the 39-558 Detach Clip.
Look over the dimension and design of this operator and carefully compare them to your existing hardware to confirm that this is the operator needed for your window.
DImensions for 39-239C
Alternate view and dimensions for 39-239C
Alternate view and dimensions for 39-239C
Quick Learner
Jun 30, 2023 9:17 pm
From the info and pictures you provided, which by the way was very informative and helpful! Plus detailed. Thanks for your support. I checked the dims and they match up. I will be putting in a order for the 39-239C SS Encore Awning Op Sill mount, the detach clips you mentioned, I had previously ordered some but thanks for the suggestion, l know you are very mindful of what the customer is going to need to complete the job. Thanks Jasmine have a great weekend.
Jasmine from SWISCO
Jul 3, 2023 9:00 am
I'm glad to hear that the operator was a fit and that I could be of help to you.
Please feel free to reach out with any other hardware repair questions!
Have a great day!
