28 3 Channel Balance

Home Owner from Florida

May 15, 2024 12:32 pm

Hello,

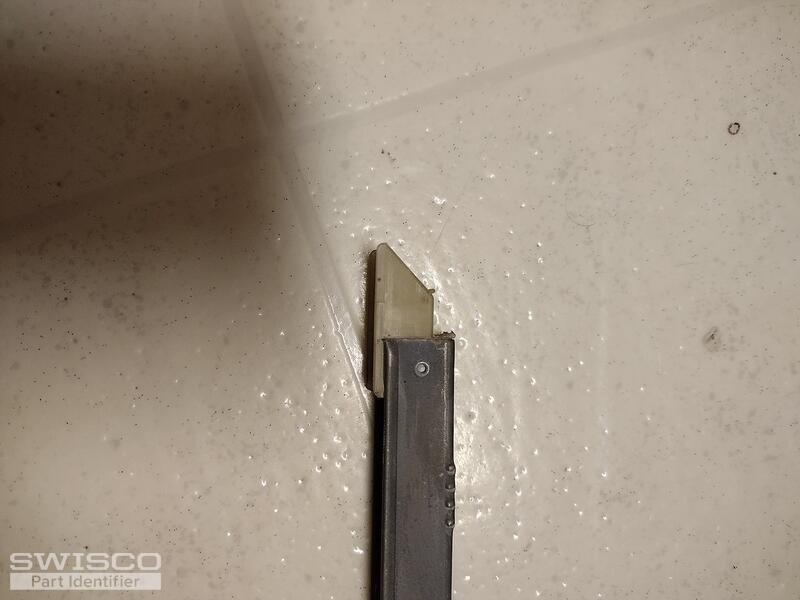

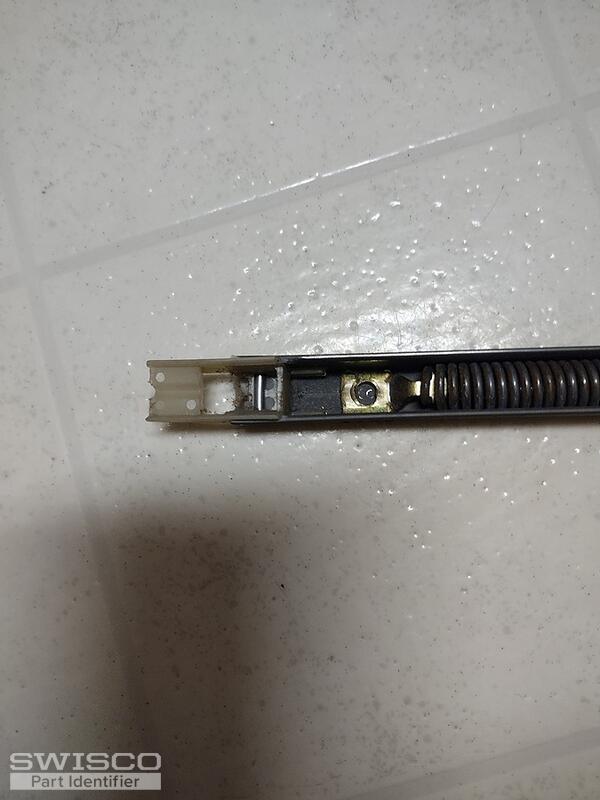

Attached are photos of a channel balance that I have to replace (both sides of window). The length of the channel portion is 29".

The stamp '28 3 JO Caldwell' is displayed on the channel. The window weight is approximately 20lbs.

After reading some previous posts, I noticed that a take out clip was mentioned. I believe that this was lost from my window frame. Does this normally come with the channel balance?

Thanks in advance for your help.

Rick

5 user uploaded images

4 Replies

+ Add a Comment

Emily from SWISCO

May 16, 2024 12:55 pm

EXPERT

Thanks for reaching out to us, Rick! Before I make my recommendation for the balance, can you show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism?

As for the take out clip, see the 16-002 which is sold separately from the balances. If there's an identical window in the house, you can check to see if that has an intact take out clip as a reference.

Home Owner from Florida

May 16, 2024 5:42 pm

Hi Emily,

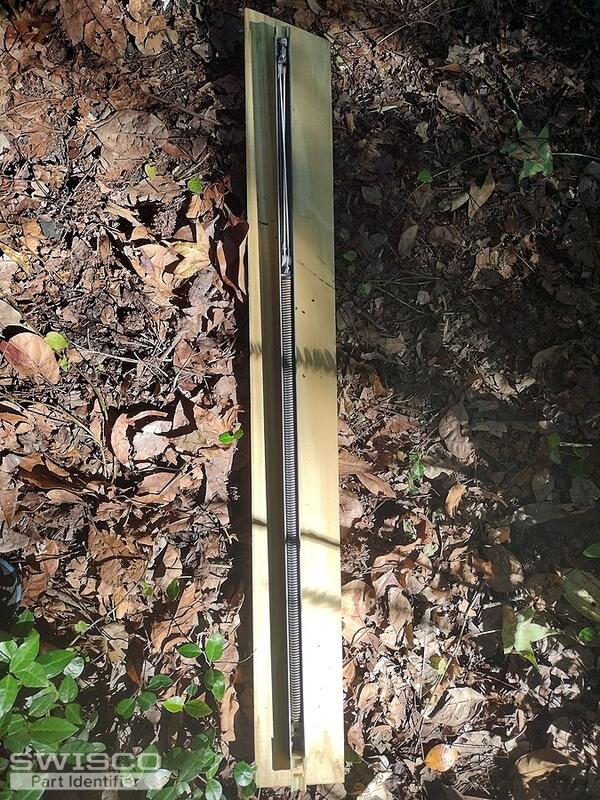

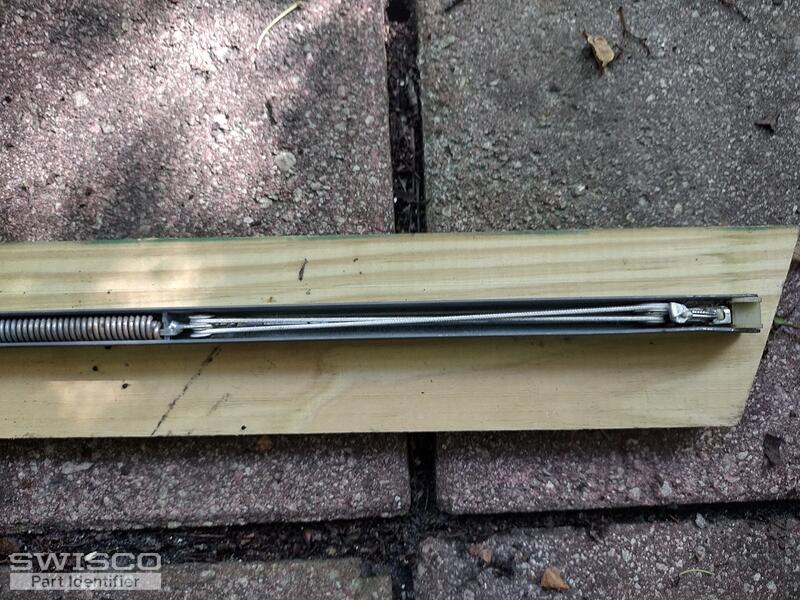

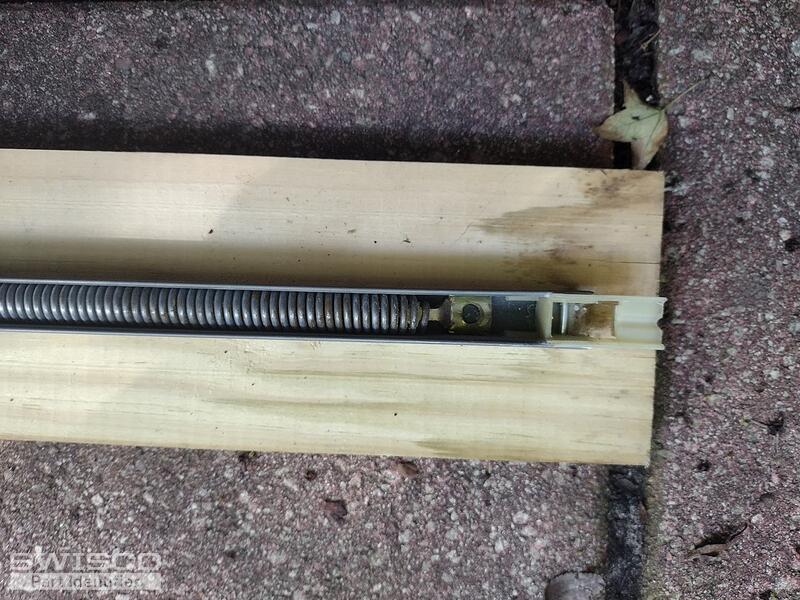

Thanks for getting back to me. I'm attaching some other photos showing the innerspring.

Rick

3 user uploaded images

Emily from SWISCO

May 17, 2024 10:30 am

EXPERT

Thanks for your photos. Based on what I see here, you have either our S351-29 or S390-29, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.
