Channel Balance

Quick Learner from San Jose, CA
Sep 25, 2021 1:32 pm
Attached photos that I need identification on. The stamp says 2740 and it has a roller.
9E29BE64-3722-44B7-B632-6173A8DC864D A552446D-2617-4FBA-B95F-BF8CB5322A79 ADD27A50-698A-4E53-9835-2FD0274F7136
3 user uploaded images
3 Replies
Emily
Emily from SWISCO
Sep 30, 2021 2:18 pm
SWISCO
EXPERT

Hi there!

Do both of these balances have the same top and bottom fittings, along with the same "2740" stamp? If so, it looks like you have either our S351-28, with a 15-002 bottom attachment, or S390-28, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a stamp option of 2740. If the balance's fittings differ from the other, please let us know.

When you say "it has a roller", is the roller built into the bottom shoe? Can you show us a picture of it?

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
Home Owner from San Jose, CA
Sep 30, 2021 4:49 pm
Emily,
I sent you a picture of the roller in a separate email. The tops are identical and the stamps both say 2740.
Emily
Emily from SWISCO
Oct 1, 2021 9:37 am
SWISCO
EXPERT

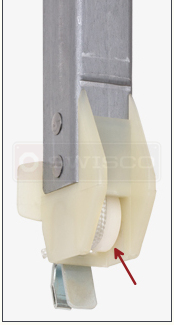

I'm not sure what email you're referring to. Is the roller built into the shoe like the image below? If not, you should be good to go with our stock balances.

shoe w roller
