Hi,

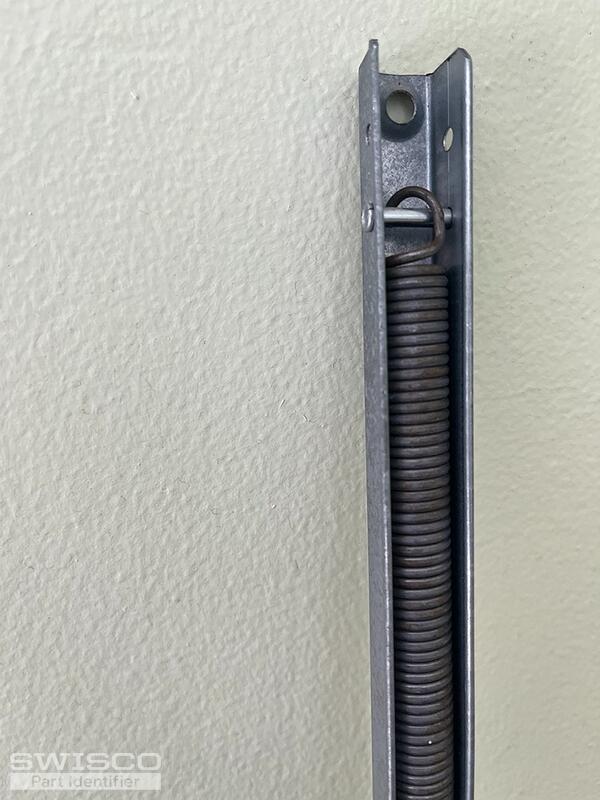

I need to replace the channel balances but don't see an exact match. The size is 20 inches length, 1/2 wide, 1/2 depth. They are screwed directly into the window frame at the top. I sent several photos from different angles.

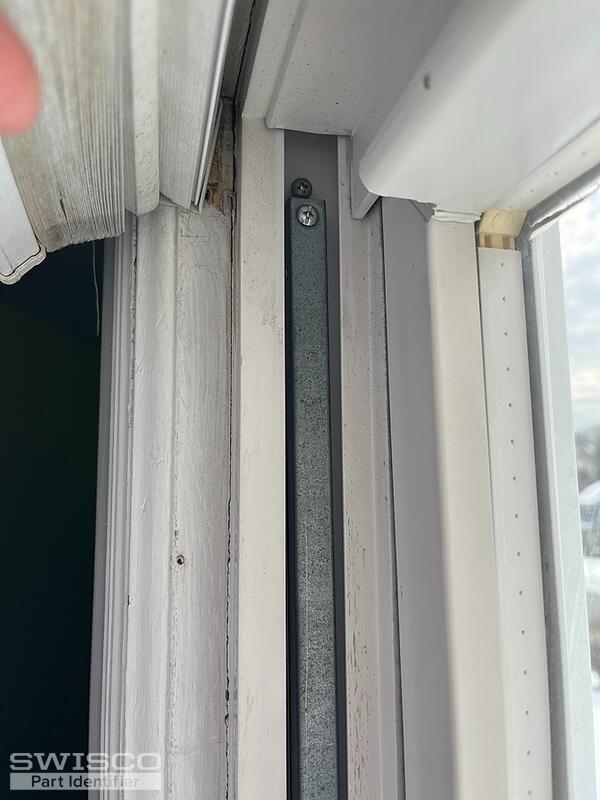

I should add there are no markings or numbers anywhere. And here is a photo of one installed in a window.
Thanks for your help.
|
Jasmine from SWISCO responded:
March 1, 2023
Thanks for posting. I am confident that we have a balance replacement that will work for you, however, I will need a bit more information. To start, I'll need to see a photo of an undamaged balance. I'm assuming this may be a tilt window so there is likely an attachment connected to the bottom of the window. I'll need to see all of the parts associated with the balance to make the best possible recommendation. Also, since there are no stamps on the balance, you'll need to obtain the exact weight of your window. This will help to determine the weight range your balances should carry once we've identified the correct series. |
|
|
Jasmine from SWISCO responded:
March 2, 2023
Thanks for posting. We did once sell a balance made exactly like your existing hardware. However, while similar our S765 will not work as a replacement because it is technically upside down compared to your original. It is also not compatible with the shoe you would need for your window. I recommend our S770-20 Channel balance with a 20B stamp. This should work well as a suitable replacement. These balances are compatible with the type of shoe you have in the window. Take a look at our 15-210 and compare the measurements to yours. Although, I am confident these are the replacement shoes you'd need.
Alternate image for 15-210
Alternate view of 15-210
|
