Channel Balancers for Milgard Window

Quick Learner from Southern California

Hello,

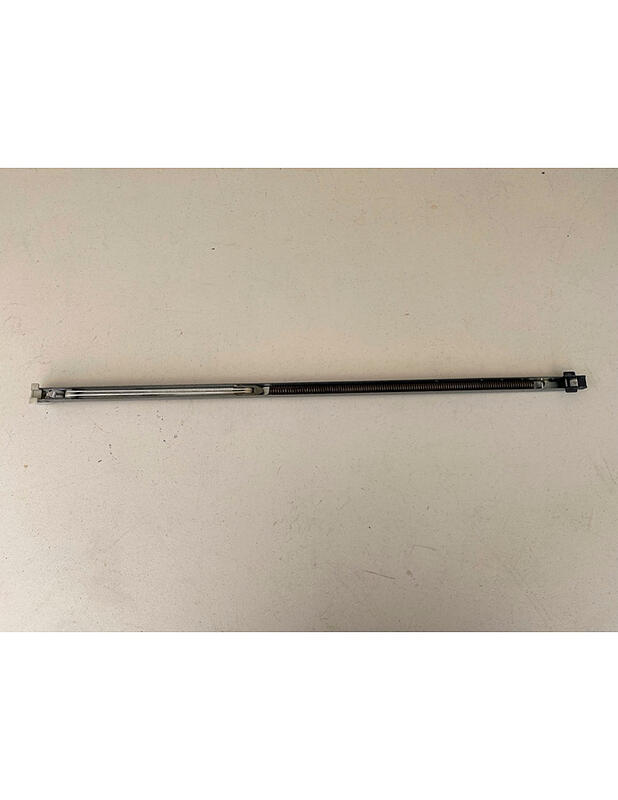

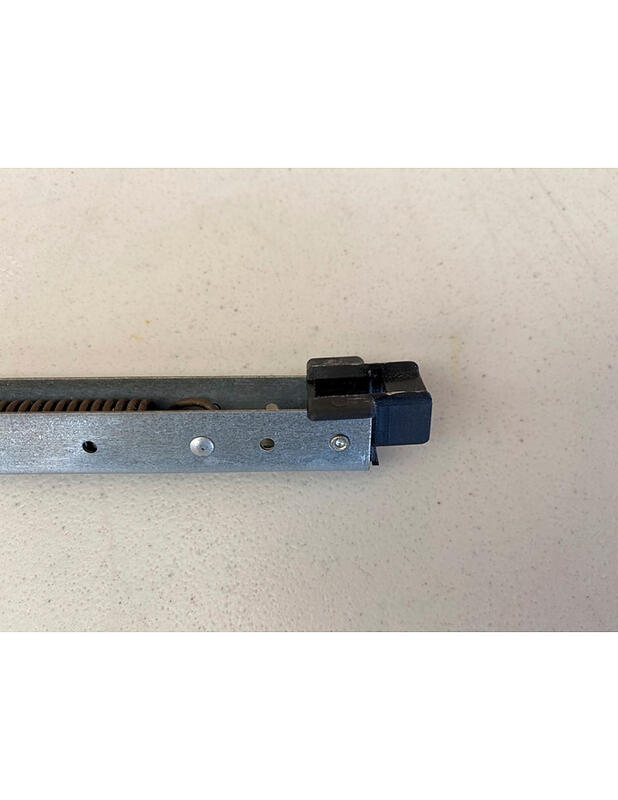

I have a couple of Milgard windows and I am unsure as to which channel balancers to buy. I have included pics of the balancers, but did not take any of them installed yet. Not sure if you can help based on these pictures. I also have a stamp of 2330 which I assume is the weight limit of the balancer.

Kind regards,

Armando

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either an S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2330 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
