Channel balance

Home Owner from Chino, CA

May 14, 2024 4:21 pm

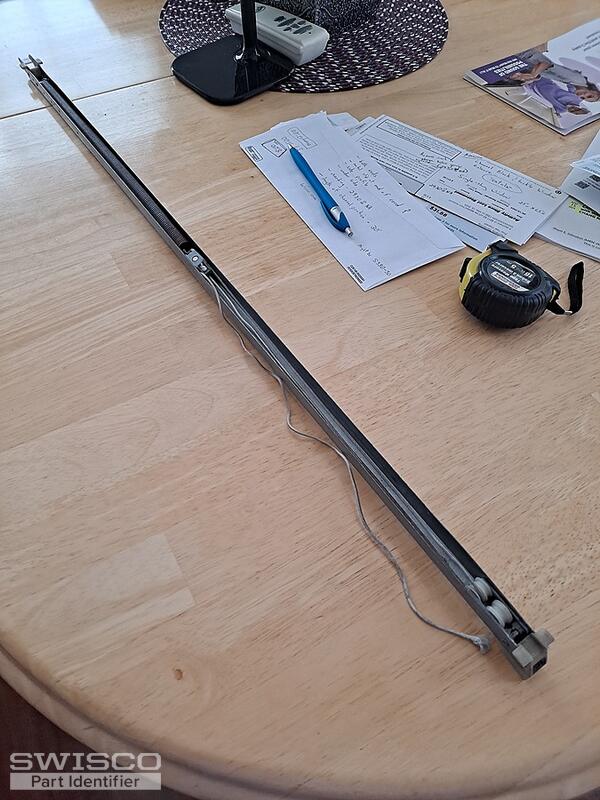

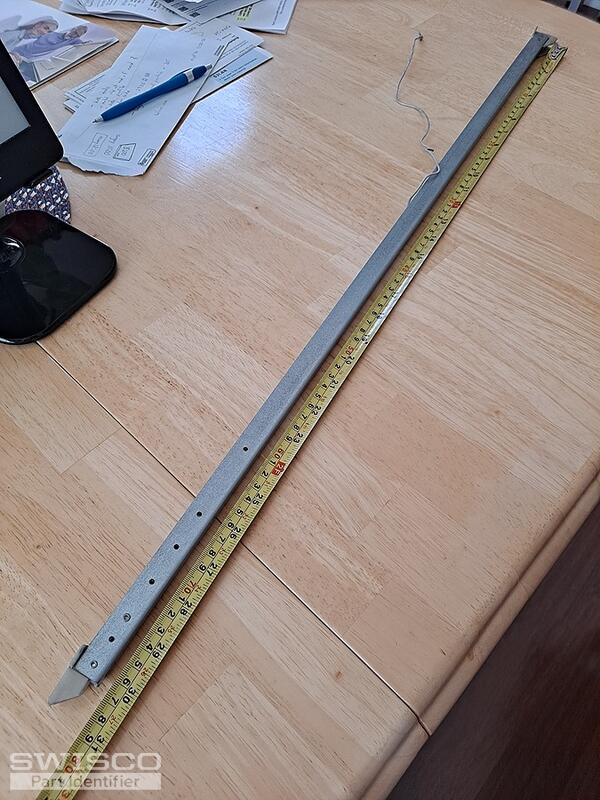

Need to replace. It has a broken cord and no end clip. 9/16" wide, channel portion length is 30".
Marking = 2930 (sideways S8) NA

Can you help me?

20240514_123057

20240514_123036

20240514_123306

20240514_123211

20240514_123047

5 user uploaded images

1 Replies

+ Add a Comment

Jasmine

Jasmine from SWISCO

May 15, 2024 10:16 am

SWISCO

EXPERT

Sure! We can help. Your balance appears to be either the S380-30 with a 1" shoe or the S385-30 with a 1-3/32" shoe. To confirm which of these is the series you need, you'll need to confirm the measurement for the depth of your bottom shoe. Take a look over the diagram below for reference.

You'll need the 2930 stamp option.

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.
