Channel balance help

Quick Learner
Jan 17, 2024 1:16 pm
Balance is 36"

looks like the S751 but the metal channel is plain instead of ribbed?

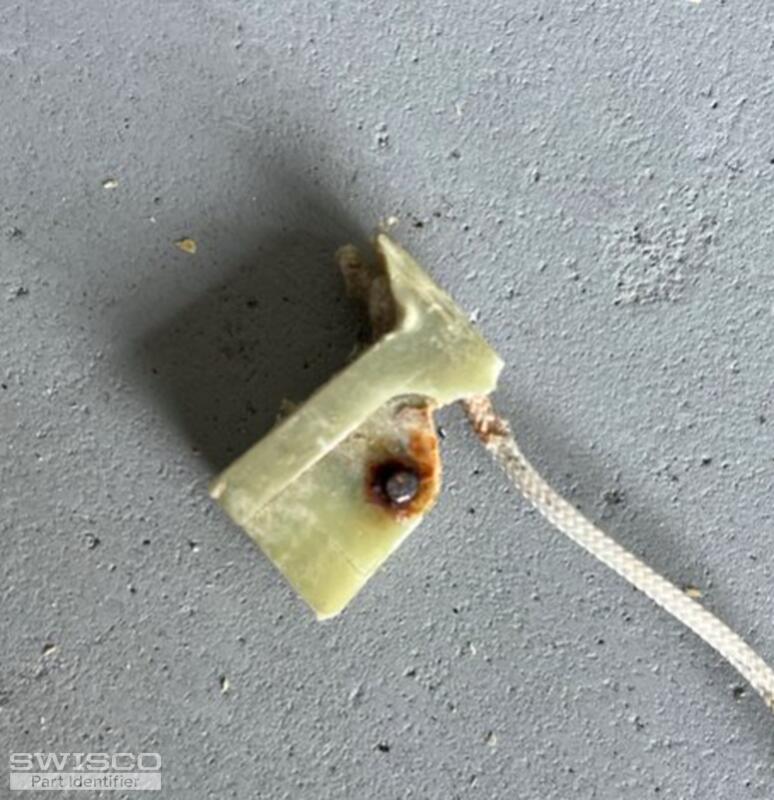

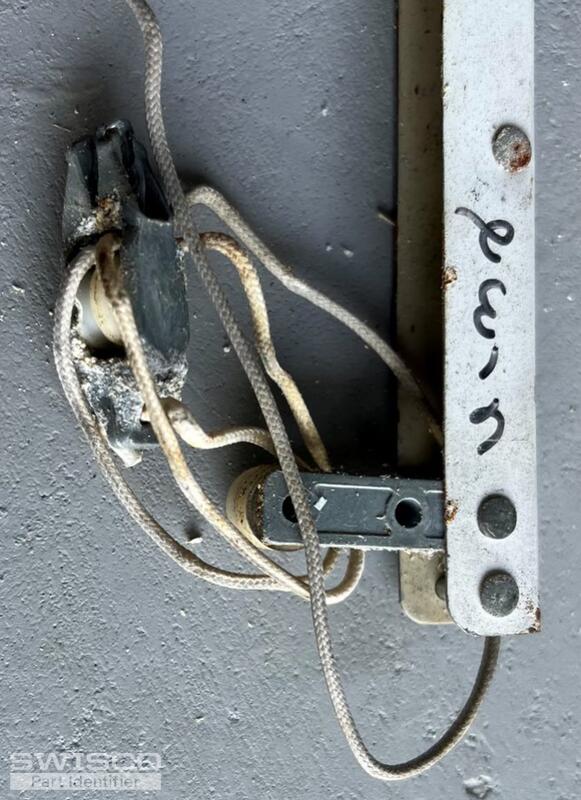

Capture Capture1 Capture2 Capture3 Capture4
5 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
Jan 17, 2024 3:30 pm
SWISCO
EXPERT

Hey there,

Thanks for writing in! Since your balance has a plain channel and a knife lock shoe, this will need to be a custom made assembly. Although, before I can get the order link forwarded over to you for the custom balances, I'll need a bit more information.

To start, I'll need to see a photo of an undamaged shoe. This is to ensure we are attaching the correct knife lock shoe to the balances. I'll also need to know the exact weight of the sash these balances will be supporting. Unfortunately, the stamp for the custom assembly cannot be cross-referenced with your existing stamp.

The final piece of information I'll need is the exact number of balances you intend to purchase. There is an order minimum of (2) balances per custom balance.

Once we have this information, I'll be able to confirm pricing and availability and get the order link forwarded over to you.

Please feel free to reach out with any questions in the meantime.

Contractor from Florida
Jan 19, 2024 7:30 am
I need 58 assemblies (29 windows) where the rod is 36- inches long and supports 24.6 lbs windows and 36 assemblies (18 windows) with a 32-inch rod for 27.8 lbs windows.

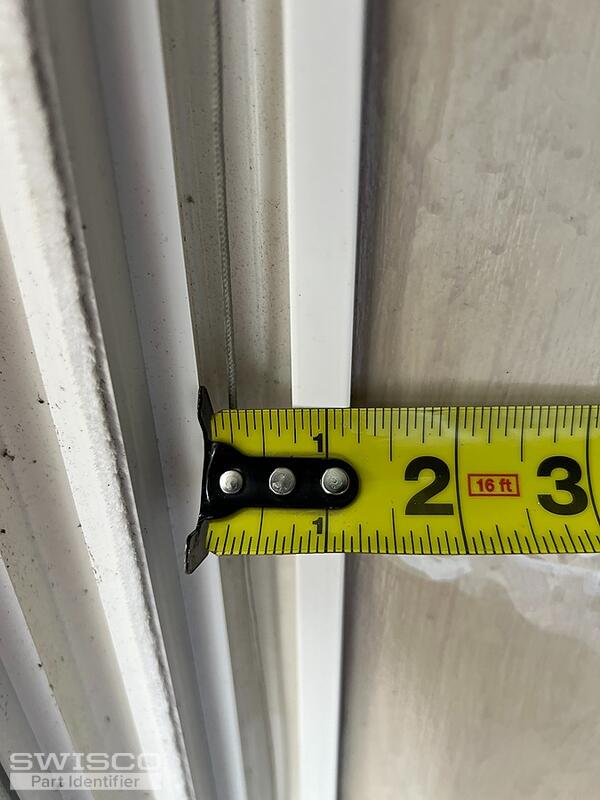

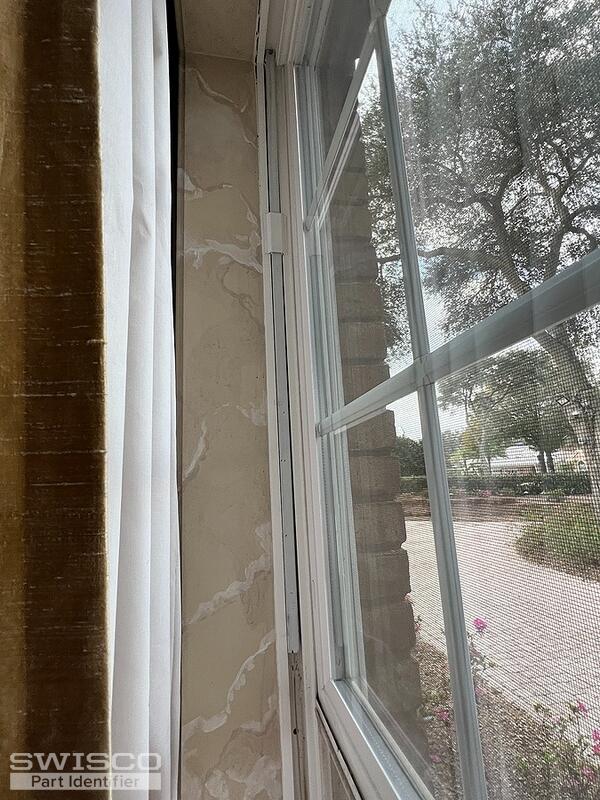

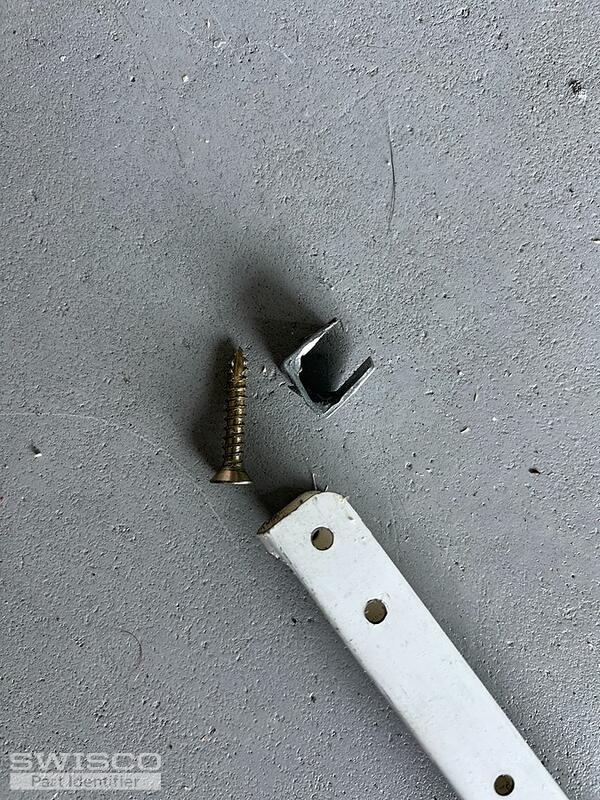

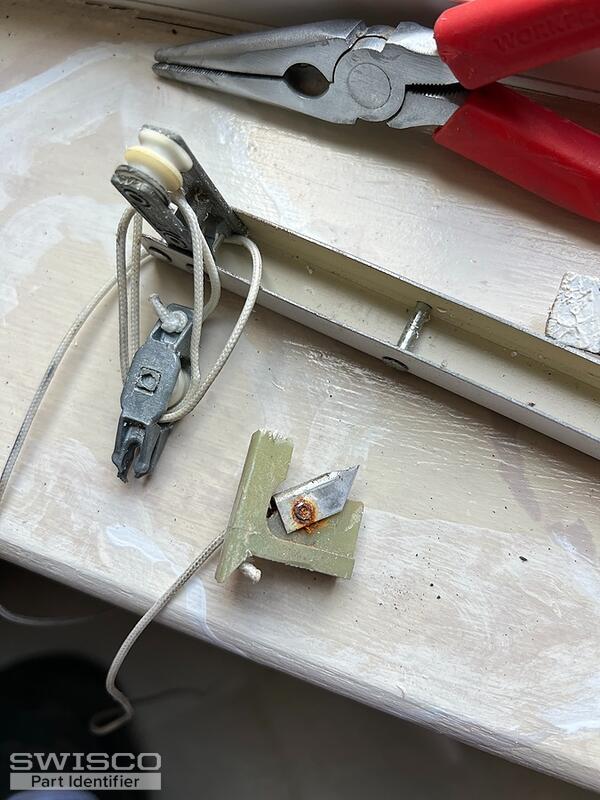

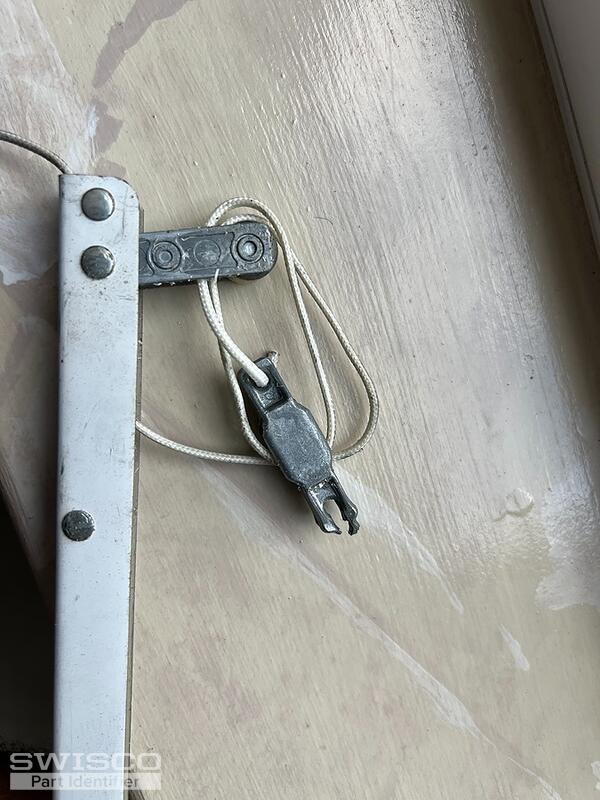

20240118_142322263_iOS 1 (8) (1) 20240118_140752161_iOS 20240118_140921865_iOS 20240118_141558147_iOS
5 user uploaded images
Jasmine
Jasmine from SWISCO
Jan 22, 2024 2:51 pm
SWISCO
EXPERT

Thanks for confirming this information. I've forwarded a link with a quote for the requested balances. The 32" balance will have a 32D stamp for a sash weighing 27.8lbs and the 36" Balance will have a 36C stamp for a sash weighing 24.6lbs.

You'll be able to use this link to review the quote and place the order from your online cart.

Please don't hesitate to reach out with any questions you might have.
