Channel balance in Jordan window

Contractor from Surprise,AZ. 58379
Jun 18, 2021 2:59 pm

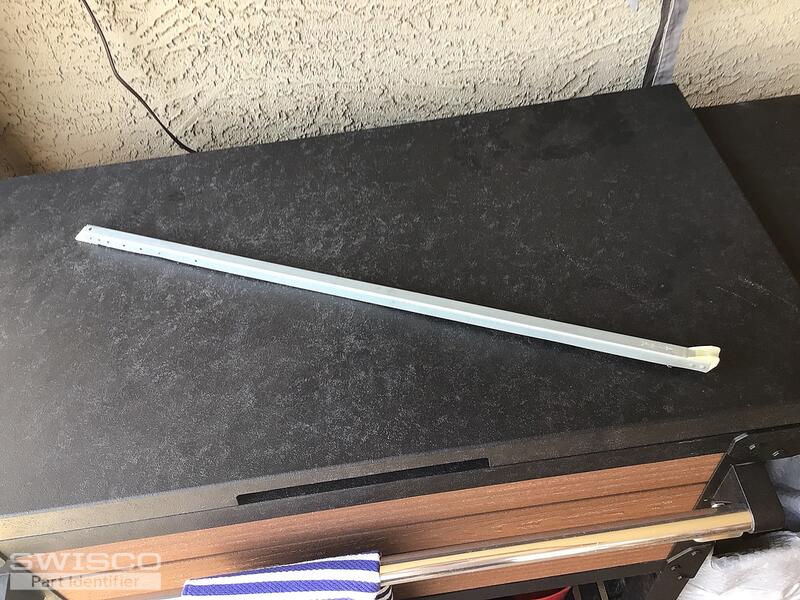

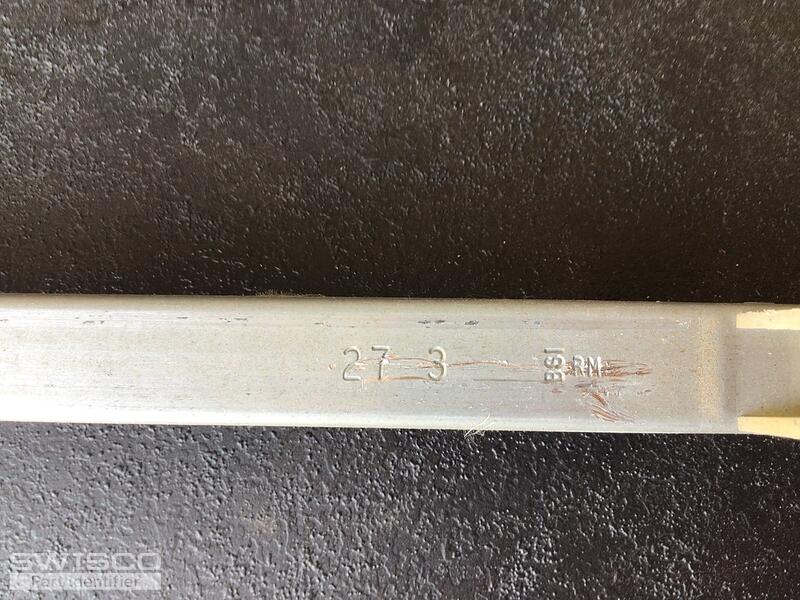

Can't tell what to order by stamp on channel. It says 27 3.
Window weighs 18 lbs.
3E0B8A49-3FB9-46DC-9407-CAB46CD9DD34 B97DD782-F55D-4CF0-B279-6C4E865B9745
2 user uploaded images
1 Replies
Bob
Bob from SWISCO
Jun 23, 2021 11:45 am
SWISCO
EXPERT

It looks like you need either our S351-28 or S390-28. This is determined by the nylon fittings. The difference between these two balances is the depth of the bottom nylon shoe. Compare both with your old hardware to see what matches best. For a new stamp option choose 2730.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
