Channel balance replacement part

Home Owner from Pompano Beach, FL
Apr 20, 2023 2:35 pm

Window is approximately 24" high by 52" wide. It opens/closes up and down. I need to know the price and model for each channel balance piece.

Markings on the metal say,

23DS rh38

Thank you,

Ana

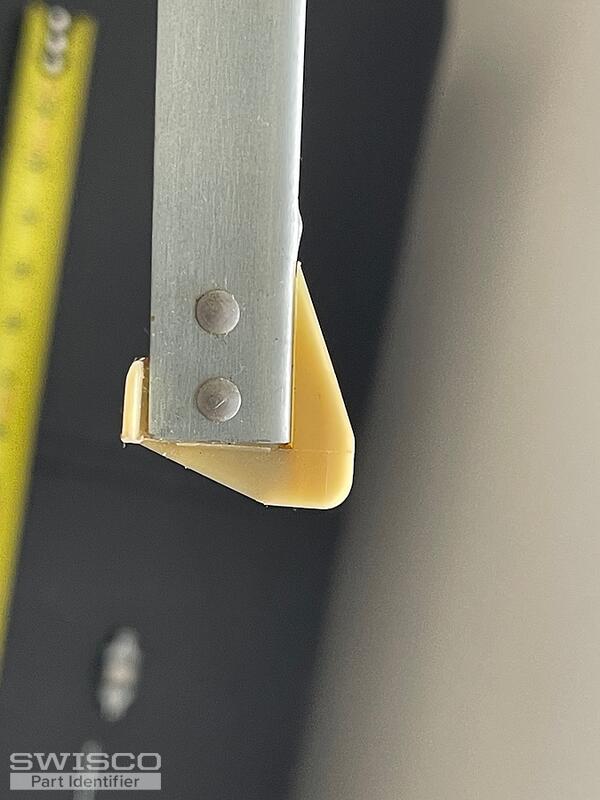

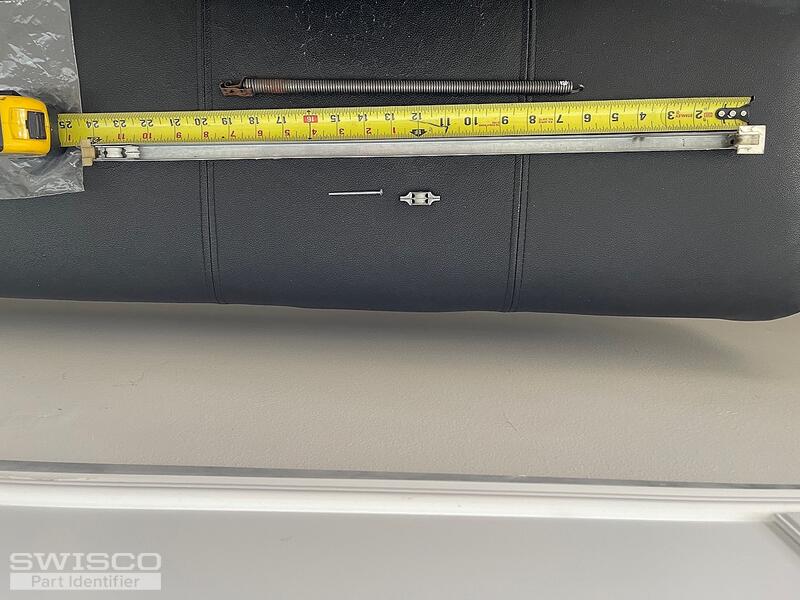

910F1B1C-3BBD-480D-976B-B6FA2C7E9E62 5E89DA63-5726-460D-BF32-AEEED3B5EEDD ACE0BDB5-E109-4307-AA4F-F178216C9CC5 3A1FF70C-C00D-4C44-8B9E-7C998D0B70AD 3022EB82-160C-4BCD-BFA3-588A473B99D5
5 user uploaded images
1 Replies
Casey
Casey from SWISCO
Apr 21, 2023 12:24 pm
SWISCO
EXPERT

Hello,

We'd be happy to help but it looks like your balance uses the 19-041 top fitting, which we can supply but it would need to be a custom order. We will also need to confirm the depth of the bottom fitting compared to the 15-004 and 15-005 shown below.

Also, your stamp code indicates that you may have a 38-pound window sash but I would recommend confirming the exact weight since custom orders are not eligible to be returned. Confirming the sash weight would help us determine the exact spring strength needed for your replacement balances. Lastly, we'll need to know the number of balances you'd like to purchase, with the minimum being two. Thank you!

Dimensions for 19-041
Dimensions for 19-041

View of the opposite side of 19-041
View of the opposite side of 19-041

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
