Concealed casement hinges

Quick Learner from

Sep 23, 2023 5:46 pm

Numbers from my hinge: Part # on 6" arm: #30818, 10" TRACK PART # 40942-A

Part # FOR Concealed casement hinge assemply from Truth Hardware site: # 14.93
Windows are Egress type. I am close to salt water. Therefor want corrosion resistant hinge assembly
I need hinge assembly pairs for two right hand and two left hand windows.
Thank you for any help Robert

5 Replies

+ Add a Comment

Bob from SWISCO

Sep 24, 2023 1:14 am

EXPERT

Hello there. Check out either our 36-090-10 10" Egress Snap-On Hinge Set, or the 36-004-10 10" Bar Set. Both of these sets come with an upper and lower hinge, and both are stainless steel. Let me know if you think one of these hinge sets match what you need.

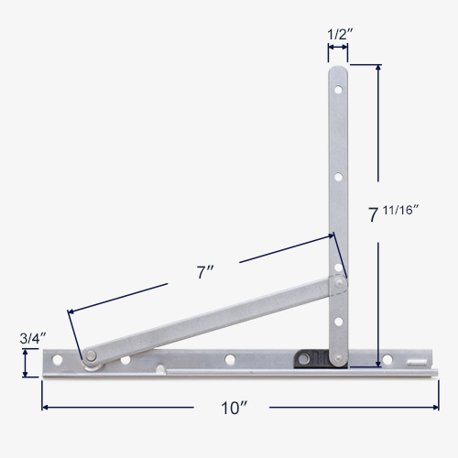

Dimensions for 36-090-10

DImensions for 36-004-10

Quick Learner from

Sep 24, 2023 10:41 am

Which set would be easier for me to install?
Thanks for getting back to me. I do want to buy 2 sets of right hand & 2 sets of right hand.
Robert

Bob from SWISCO

Sep 24, 2023 10:39 pm

EXPERT

Hi Robert. I don't think either hinge set is going to necessarily be easier or more difficult to install--the principles should be the same regardless. See the video below for details on installation. Whichever hinge set matches the dimensions and specifications of your old hardware most closely is the best choice to go with.

These hinge sets come in pairs, for the top and bottom of a sash; but they're non-handed, so you can use a set for either a left or right-handed window. Let me know if you have further questions.
