Cox bifold mirror glass door

Question

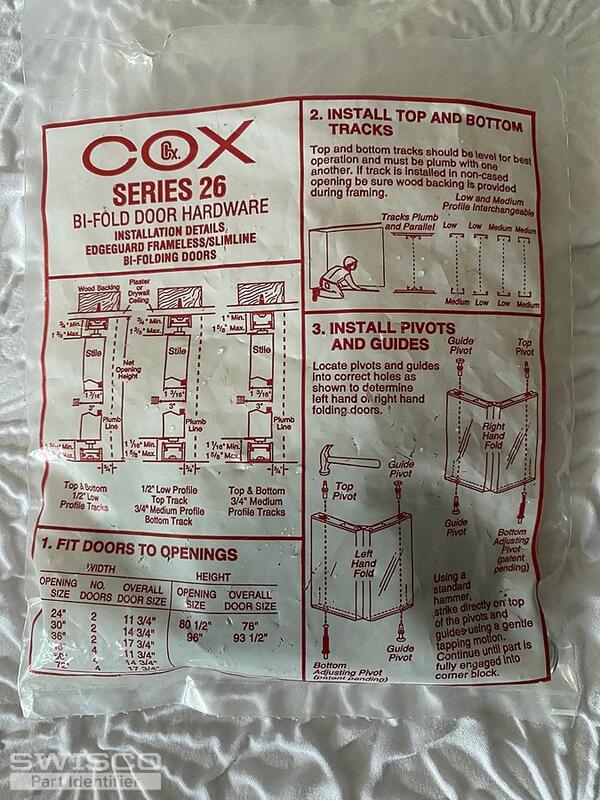

Hello! We have a set of Cox bifold doors that have broken - the plastic roller guides have broken. I have attached some images of the broken parts and we are seeking replacement. We used to be able to get a kit here but have been unable to locate in the U.K., would you be able to assist? Please let me know what else you would need to know before you can help.
Many thanks
Jody

Paul · Accepted Answer

Hi there Jody!

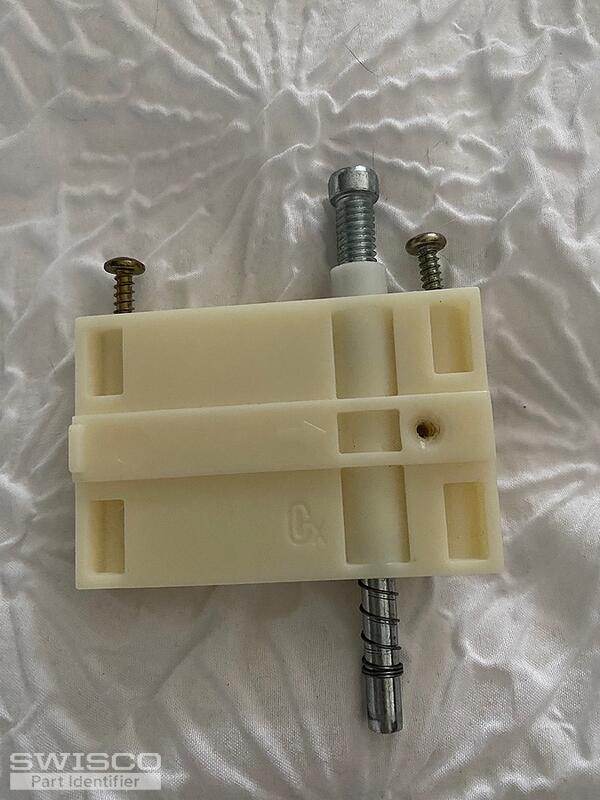

Thanks for reaching out to us. We recognize the Cox corner block as our 23-407. The top guide pin with the roller is the 23-120, the top spring loaded top pivot pin is 23-115 and the bottom adjusting pin is 21-092. Review the specifications for these parts and see how they compare with yours.
