Crank window track

A quick learner from Massachusetts says:

May 13, 2023

The black piece on the right side is split in two. It's supposed to hold an arm in place while it slides on the track. Can i finf the black plastic piece by itself or do I need the whole track? I can go either way.

The black piece is broken in two. It's the piece that slides in the track.

Thumbnail of the uploaded file named Screenshot_2023-05-13-14-55-00-34_92460851df6f172a

Thumbnail of the uploaded file named Screenshot_2023-05-14-07-45-56-25_92460851df6f172a

Thumbnail of the uploaded file named Screenshot_2023-05-14-07-45-20-96_92460851df6f172a

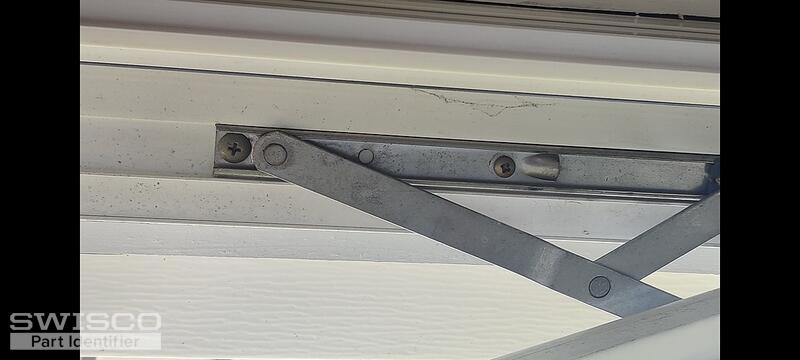

Thumbnail of the uploaded file named Screenshot_2023-05-14-07-45-14-62_92460851df6f172a

Jasmine from SWISCO responded:

May 16, 2023

Thanks for reaching out! It does not appear that we have an exact match for the casement window hinges your are searching for, but I would suggest starting with the 36-090-10 since it does appear that your hinge may possibly be the snap-on hinge. Our 36-004-10 or 36-004-14 may also be worth considering as a replacement as well.

Take a look at the details and measurement of each hinge and see what you think.

Dimensions for 36-090-10

DImensions for 36-004-10

Dimensions for 36-004-14

10" Stainless Steel 2 Bar Hinge Set

36-004-10

$19.93

14" Stainless Steel 2 Bar Hinge Set

36-004-14

$24.52

10" Stainless Steel Egress Snap-on Hinge Set

36-090-10

$18.27
