Cranky window crank and lock mechanism

A quick learner from Florida says:
October 2, 2021

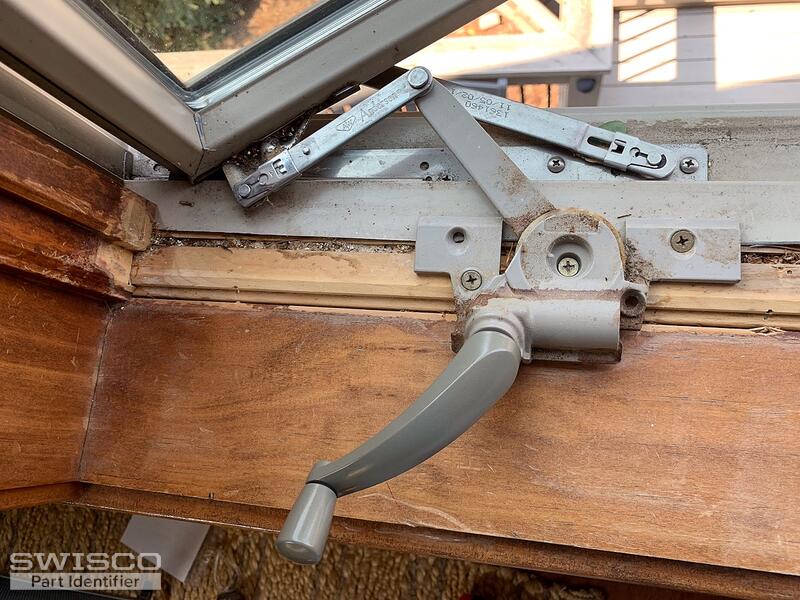

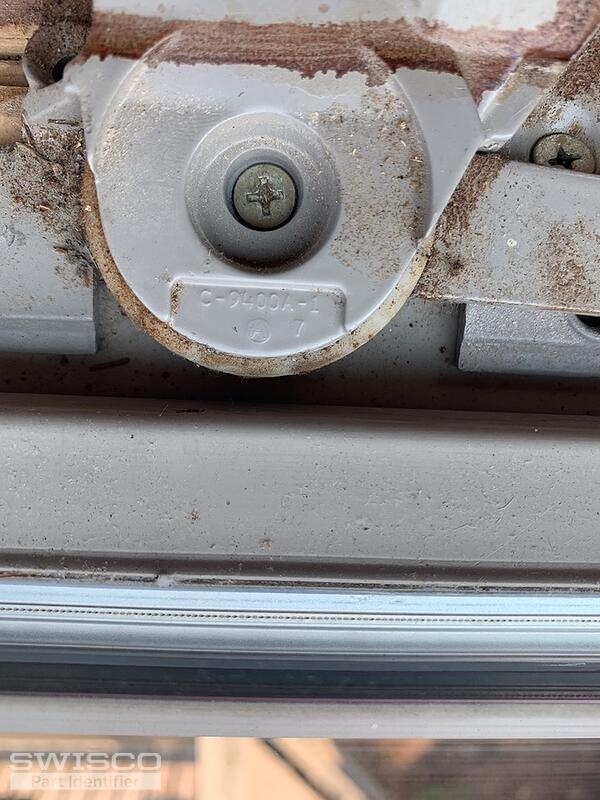

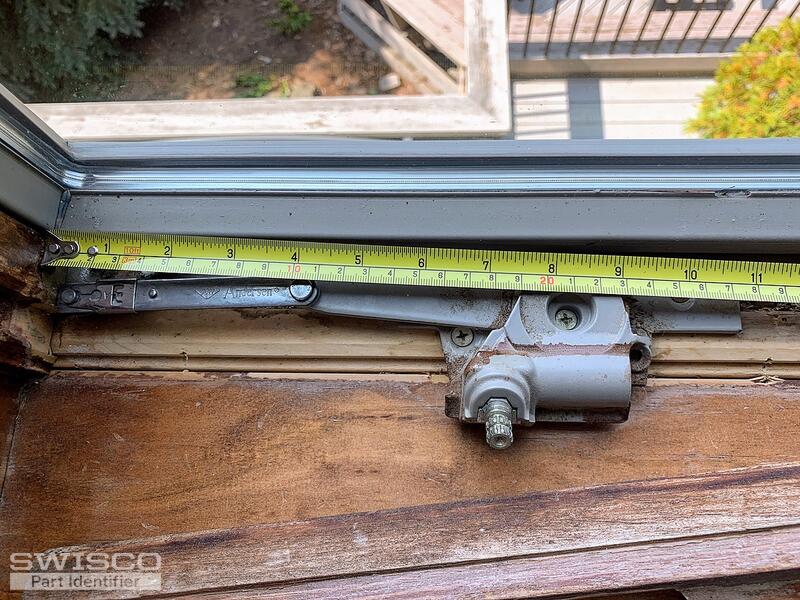

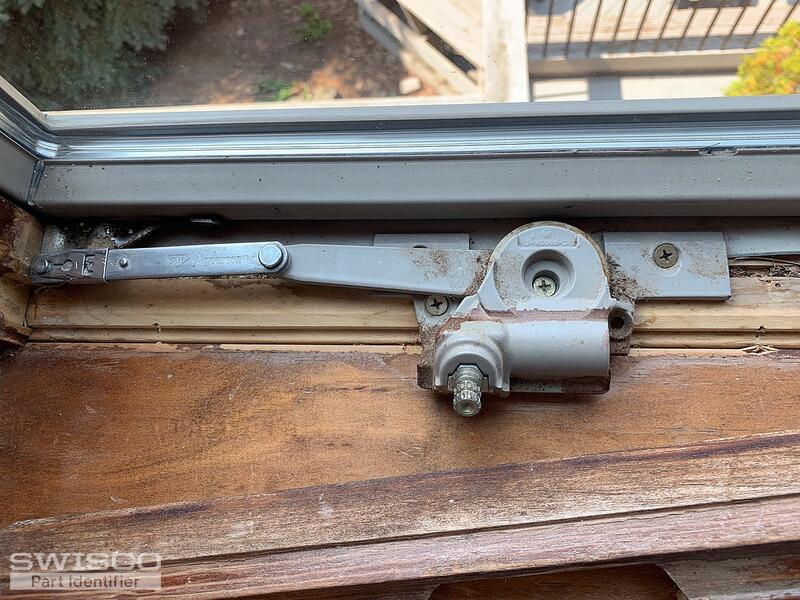

The window crank gear is stripped and the locking mechanism won't catch on the keeper. Does this crank assembly need the adapter mentioned in the description?

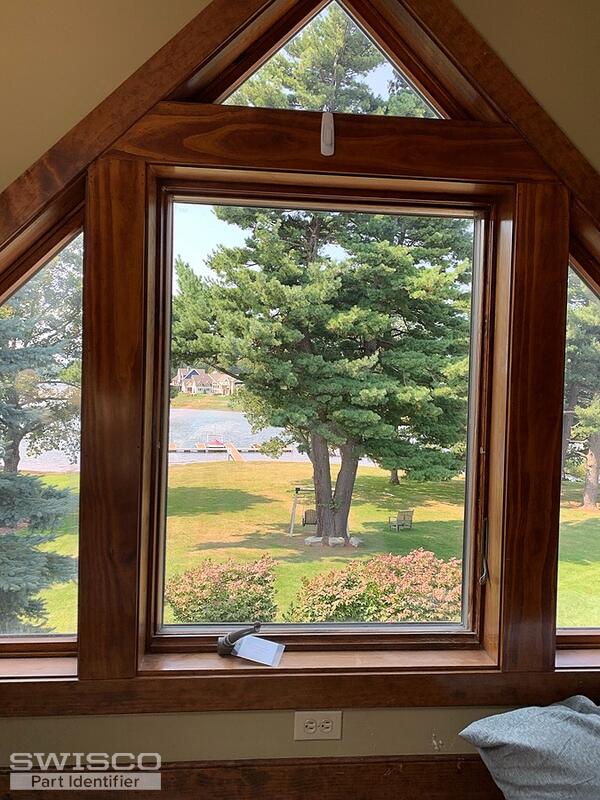

The glass area of this window is 31.5 x 43".
Thumbnail of the uploaded file named 2C6B4603-9CAB-4CAD-98E9-EB260D82F543.jpeg
Thumbnail of the uploaded file named 739E9AD7-B7C0-46EC-B10F-BE520172AFF2.jpeg
Thumbnail of the uploaded file named 8A6788F9-44C0-439B-961A-D1E22A64C049.jpeg
Thumbnail of the uploaded file named B1997B6D-13FD-49C6-9BD9-76F98EA6D280.jpeg
Thumbnail of the uploaded file named C9A894D3-374B-4842-9B95-B55EB8863097.jpeg
A quick learner from Florida says:
October 6, 2021
I forgot to add: What is the correct crank assembly and adapter if needed shown here? What are the proper locking mechanism parts that need to be replaced?
Profile picture of Lauren
Lauren from SWISCO responded:
October 6, 2021

Hello, thank you for posting!

Your crank operator resembles our 39-264 . The 39-362 adapter plate will be needed if your window units were manufactured between 1995 and 1998. Regarding your lock, please start by viewing our 39-290 and 39-291 . Please let me know if you have any questions.

Andersen Split Arm Crank
Andersen Split Arm Crank
39-264
$26.35
Andersen Lock Bezel, 5-7/8"
Andersen Lock Bezel, 5-7/8"
39-290
$6.03
Andersen Lock Handle
Andersen Lock Handle
39-291
$5.92
Andersen Casement Operator Adapter Plate
Andersen Casement Operator Adapter Plate
39-362
$20.25
