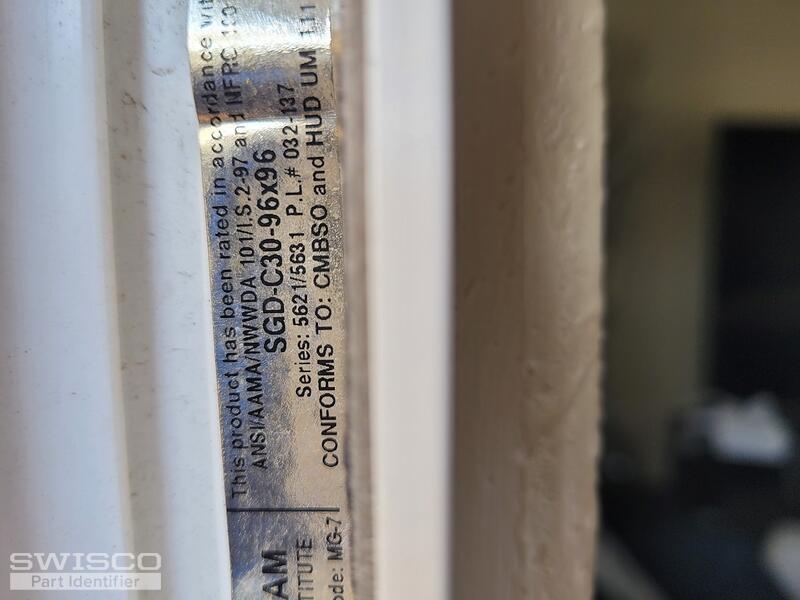

I need to replace a double hook mortise lock and handle, and rollers for a Milgard SGD-C30-96X96 5621/5631 series sliding door. Which would be the best replacement parts and/or sets for this?
Please advise.
Do you sell hardware for a Milgard sliding glass door?
Contractor from Oakley, CA
Jan 3, 2024 3:11 pm
5 user uploaded images
4 Replies
Tom from SWISCO
Jan 4, 2024 2:39 pm

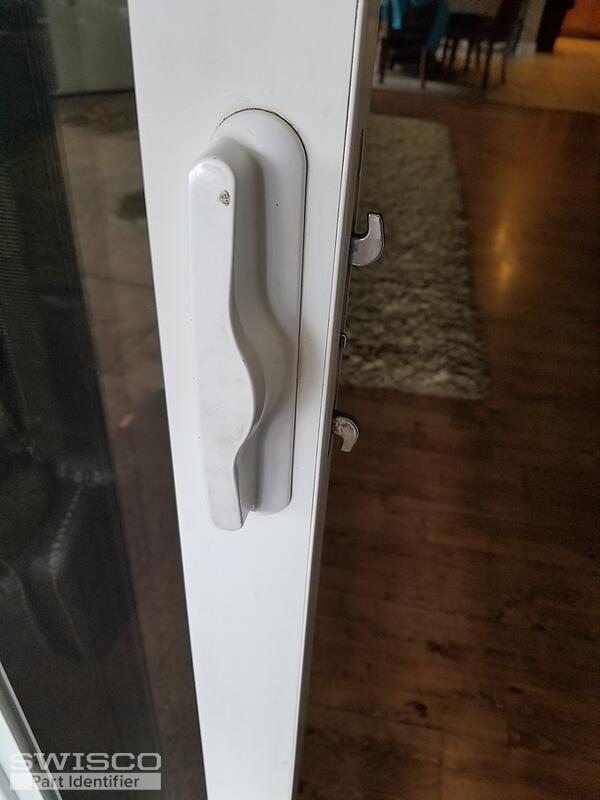

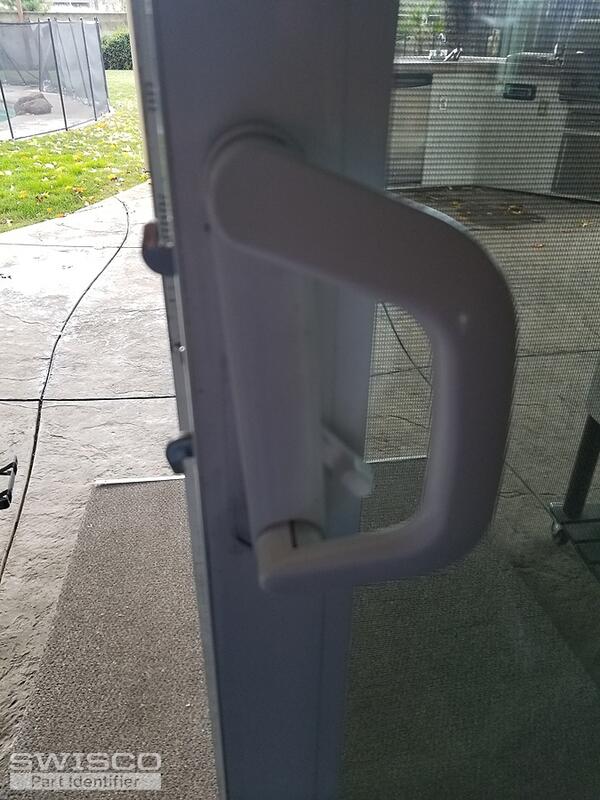

Hey there, thanks for contacting us. Looking over your photos, it appears that your have an older version of our 82-080 handle set. I'll share specs below for you to review, so make sure to look those over before you buy anything.
As for the mortise, it's tough to say while it's obscured but there are good odds that you have the 82-268B. You'll also want to compare the original to ours before you make a purchase, but that's easier said than done; to remove the original, you'll need to first snap off the side cover that runs along the entire length of the door. Just something to keep in mind as you move forward with this project.
Dimensions for 82-080
Dimensions for 82-268B
Home Owner from La Mirada CA
Nov 7, 2024 1:22 pm

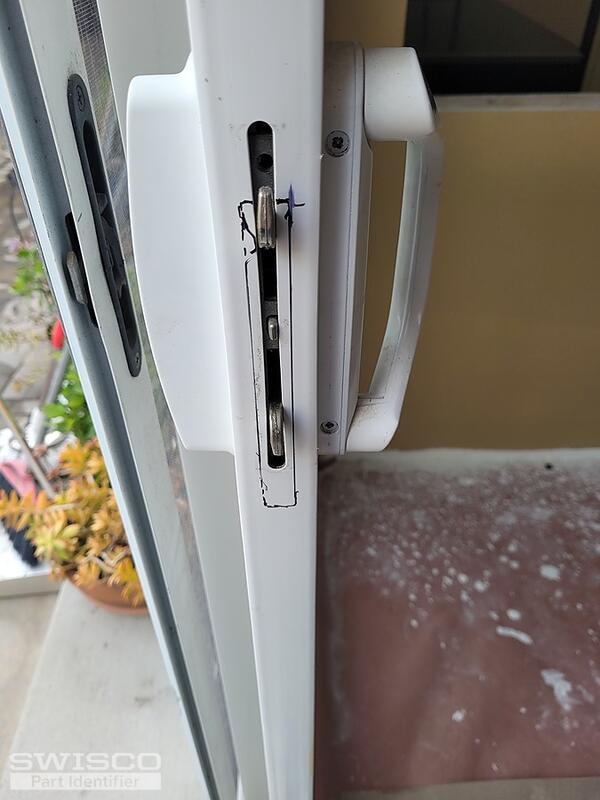

I have the same type of sliding door with the same Multi-Point Mortise Lock, And I would like to get the lock that opens with a key from the outside.
Do you have that part so I can purchase?
Please email me with the info.
Hilel.
Thanks.
Do you have that part so I can purchase?
Please email me with the info.
Hilel.
Thanks.
2 user uploaded images
