Quick Learner
Nov 19, 2023 3:48 pm
37 inches
369
2 balances needed
369
2 balances needed
5 user uploaded images
1 Replies
Hello, thank you for posting,

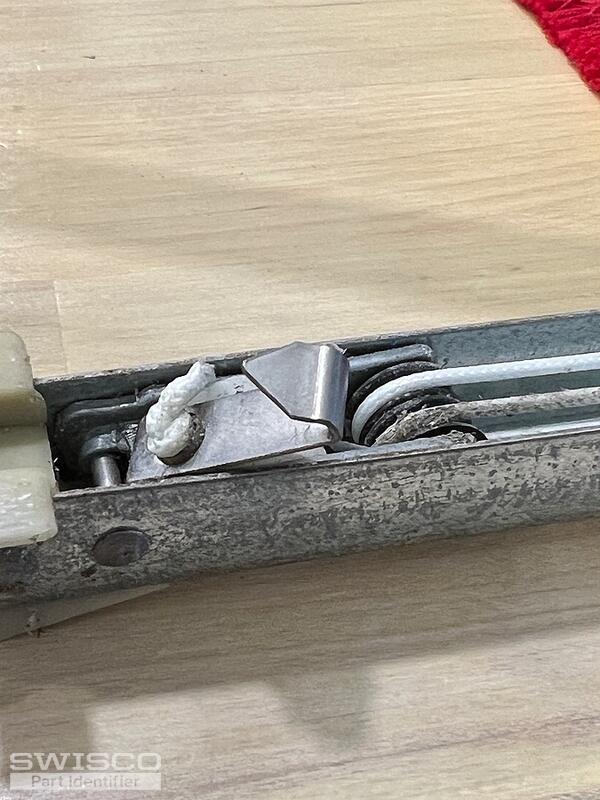

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will need a 37" balance.

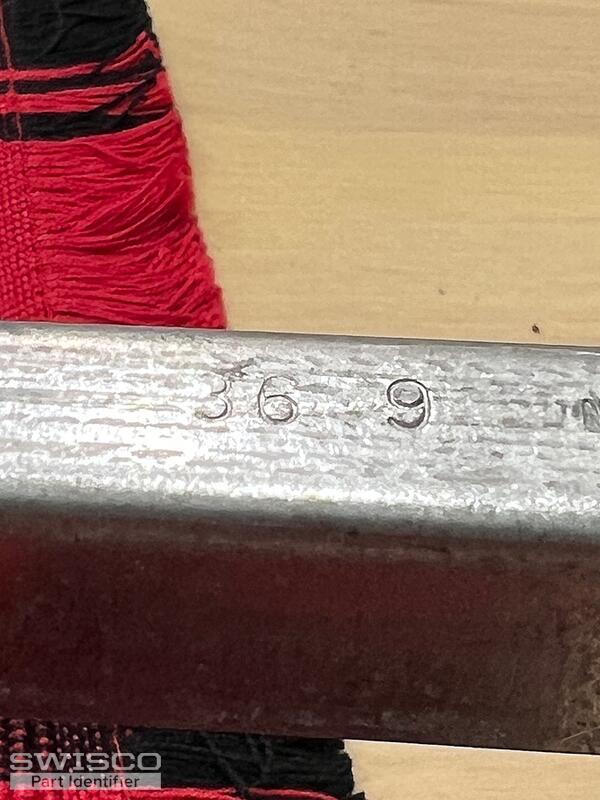

The 36 9 stamp that indicates the spring strength does not directly correlate to our options. You will need to remove the window sash and place it on a scale to obtain the weight. From there, compare the weight to the strength chart on the product page to choose the correct option to support the window sash.
Let me know if you have any additional questions!
