Glazing Bead for Silverline 1000 series Vinyl Windows from late 1990's early 2000's

A home owner from Massachusetts says:
October 28, 2020
Need help. Silverline was sold multiple times and, while still around, no longer stock the glazing bead. I had broken seals on a sidelight and semi-circle. They had me remove the glazing bead to measure the windows. They replaced the windows under warranty. I destroyed the bead getting it out so I threw out the old bead assuming I'd be getting new glazing bead with the windows. Nope. So, now I'm looking for a replacement and I don't have a pic of the removed bead. Pic of window with removed bead and pic of other window with installed bead are attached. Dimensions are: 3/16" from window to the slot. Slot is 7/32" deep. Bead is 5/8" wide and 5/16" deep. Can you recommend a suitable replacement? Thanks!
Thumbnail of the uploaded file named installed.jpg

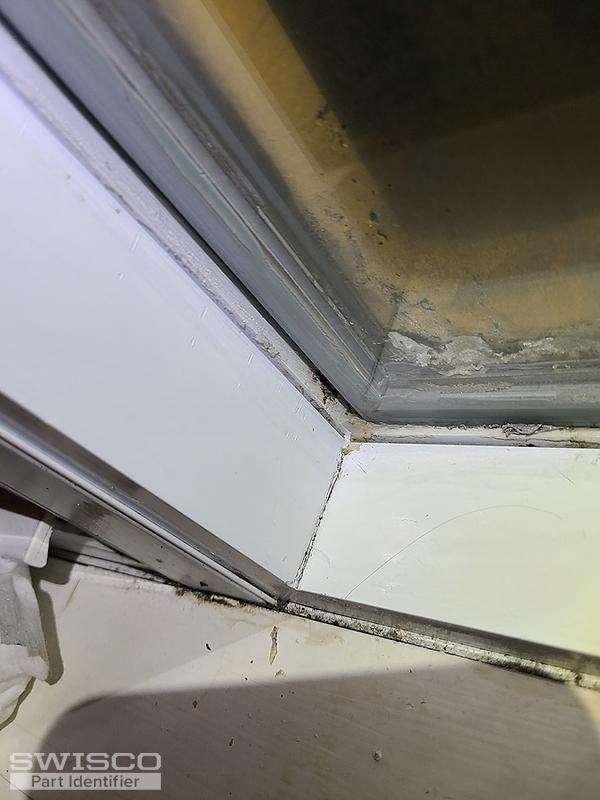

Thumbnail of the uploaded file named removed.jpg
Profile picture of Bob
Bob from SWISCO responded:
November 3, 2020

Hello there. Silverline windows often use our 55-127 or 55-204 Glazing Bead. Look over the 'end profile' dimensions and let me know if you think either one of these matches.
3' Silverline Snap-in
3' Silverline Snap-in
55-127
$5.78
6' Snap-In Window Glazing
6' Snap-In Window Glazing
55-204
$9.57
