Help to find a part

Home Owner from 94901
May 22, 2024 12:35 pm
Hello Team,

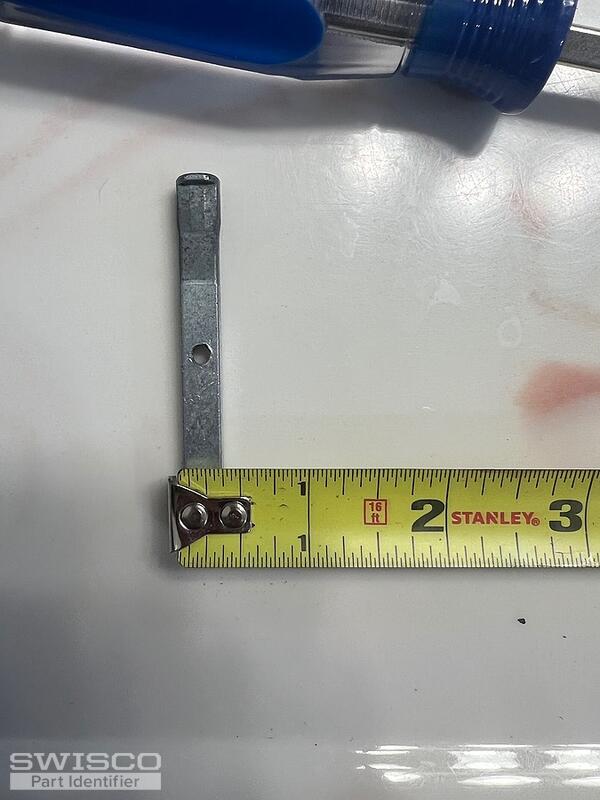

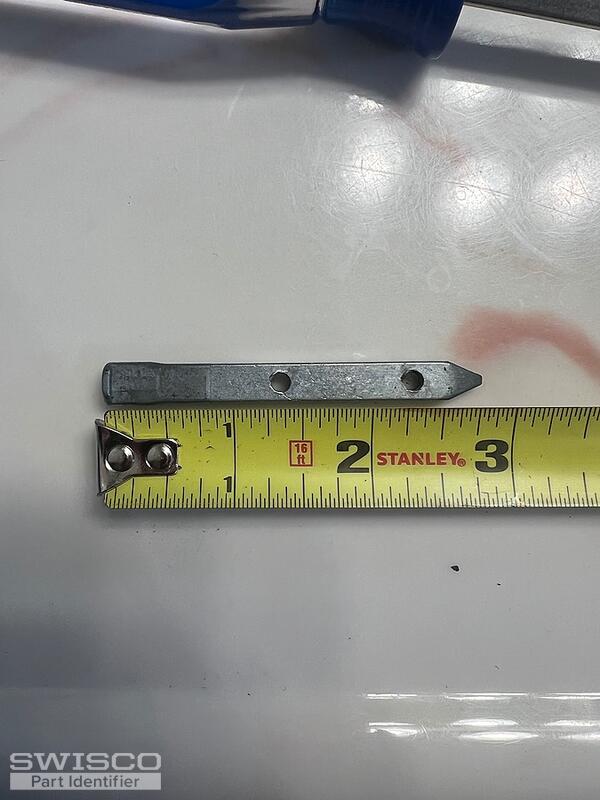

I am looking into either find the pivot for the window hinge or the full hinge appliance as showed in the attached pictures
Thank you for your help !
IMG_2349 IMG_2352 IMG_2353 IMG_2351 IMG_2350
5 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
May 22, 2024 2:31 pm
SWISCO
EXPERT

Hey there,

Thanks for writing in! Your coil balance shoe appears to be the Series 140 Quick Tilt Balance. Although, to determine exactly which assembly you need for your repairs, I will need to know either the stamp from the cover or the exact weight of the sash.

The pivot bars compatible with this coil assembly are the 26-398 Round End Pivot Bar or the 26-405 Rounded End Pivot Bar. To confirm which of these is the best replacement, you'll need to compare their dimensions to your existing hardware.

Detail of 26-398
Detail of 26-398

Alternate image for 26-405
Alternate image for 26-405
