Help with channel balances

Quick Learner from Florida
May 7, 2024 11:58 pm

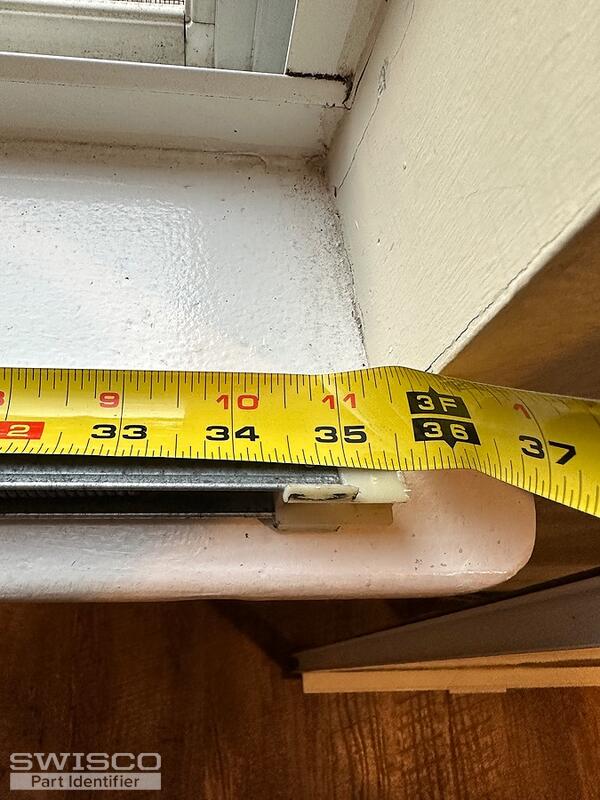

Hi, please help me to order the right parts. They measure 35" in length. On the balance is printed 34-4 IX CMC 11. Thanks
IMG_3749 IMG_3748 IMG_1285 IMG_1284
4 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
May 8, 2024 1:56 pm
SWISCO
EXPERT

Hey there,

Thanks for reaching out to us! I am confident that we can supply you with the replacement balances you need but to determine the correct replacement, I'll need to see clearer photos of the top and bottom attachments. Unfortunately, the measuring tape is blocking the view of the top and it is hard to see a clear view of the shoe.

Please don't hesitate to reach out with any questions you might have.

Quick Learner from Florida
May 8, 2024 4:08 pm

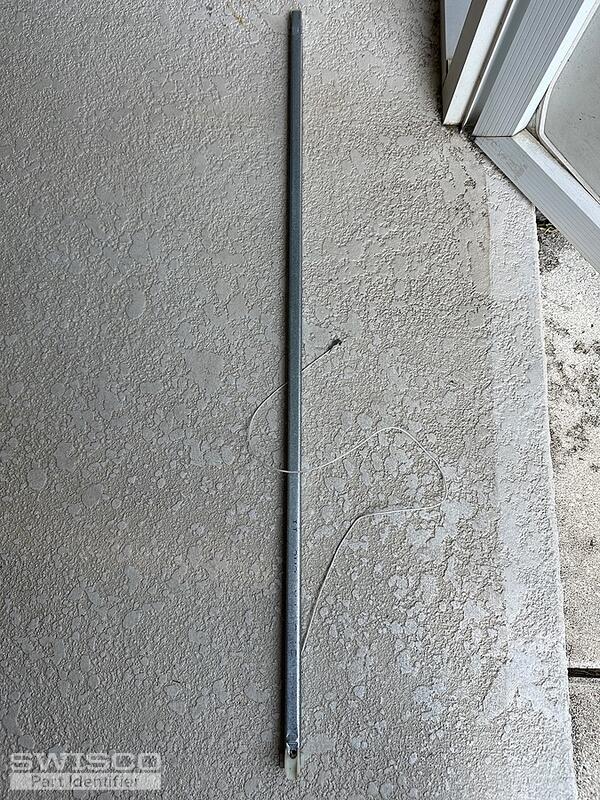

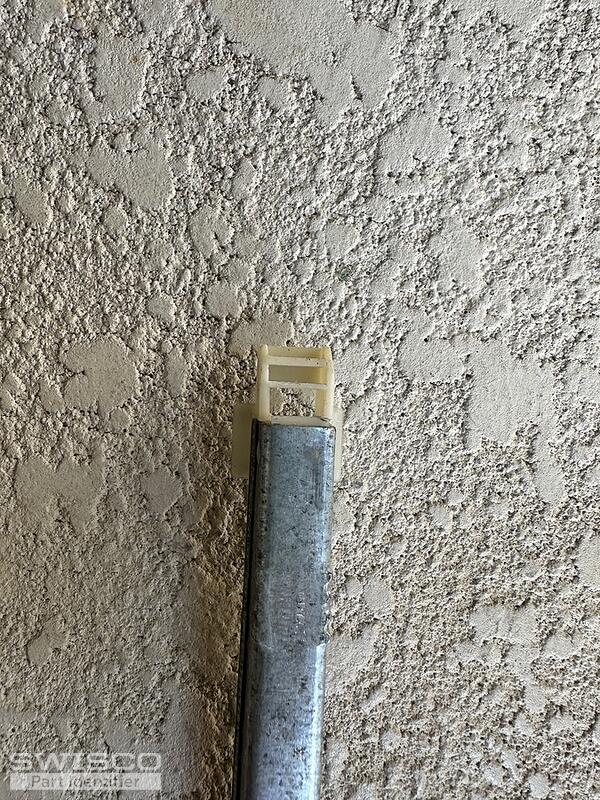

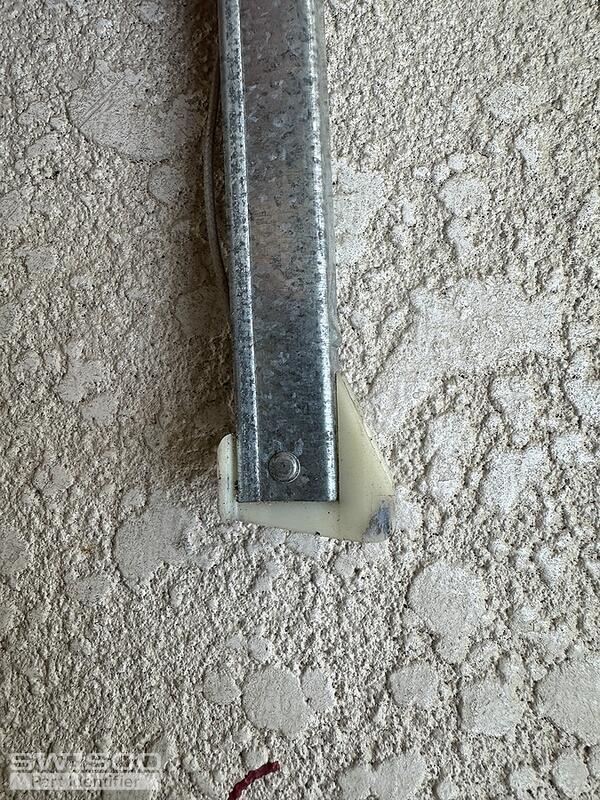

Here are better pictures. Thanks
IMG_3757 IMG_3759 IMG_3758
3 user uploaded images
Jasmine
Jasmine from SWISCO
May 9, 2024 12:00 pm
SWISCO
EXPERT

Thanks for the photos! Your channel balances appear to be either the S380-35 with a 1" shoe or the S385-35 with a 1-3/32" shoe. To determine which of these is the correct replacement, you'll need to confirm the depth of your bottom shoe. Take a look at the diagram below for reference.

You'll need to select the 3440 stamp option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
