Hi

Question

I sent a prior request . This a follow up.

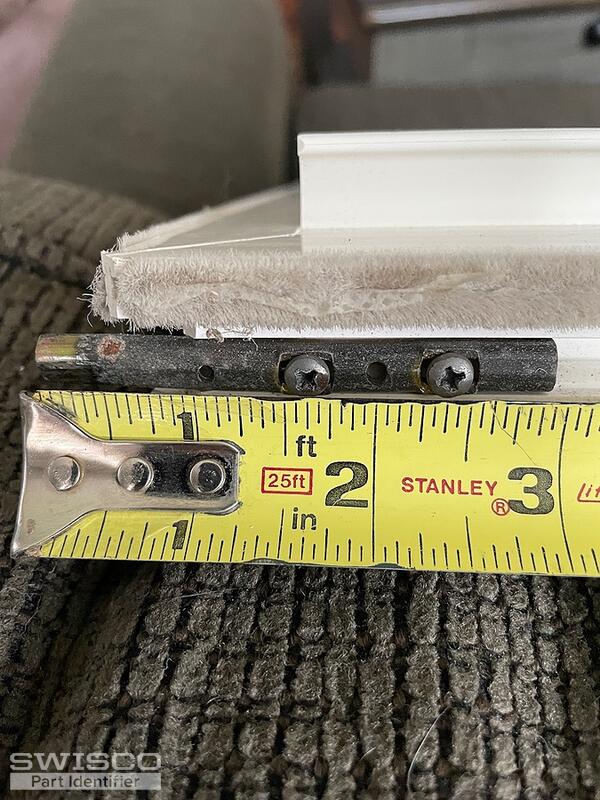

I need a pivot that is broken . It's channel shape w 2 holes and two slots and is 3" long. I sent 2 photos one of a good piece and one of broken one. I'll replace both since one is warped.

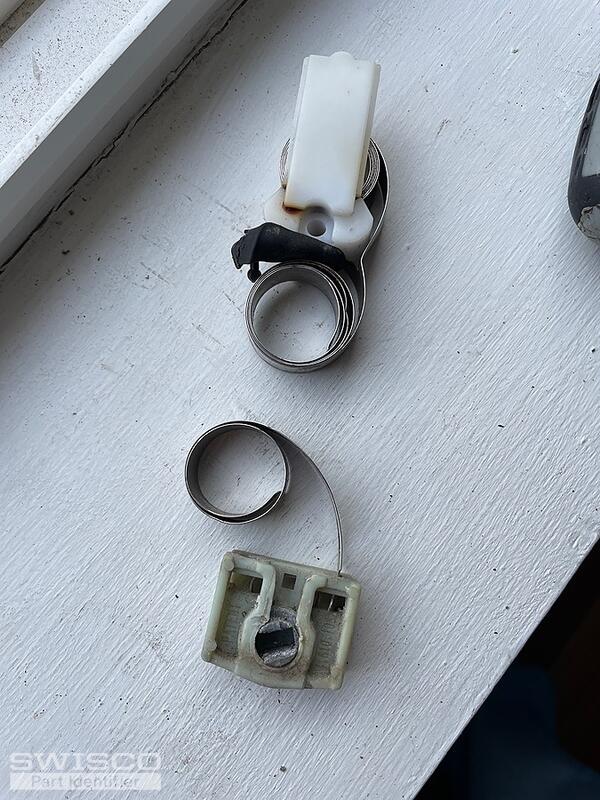

The sash weighs 9 lbs.I also need a balancer coil that broke. It says 5.33" and a word pending. I probably need a new shoe also and I'm not sure what the white piece is above it w a rubber piece. I probably need another one of those. One photo is broken balancer and one photo is good balancer and one is broken one out of window.Please help!

Jasmine · Accepted Answer

Thanks for reaching out! Your coil balance pivot shoe looks like our 15-111. Carefully compare the measurements to your existing pivot shoe to confirm that this is the right fit.

Alternate image for 15-111

The compatible coil spring is the Series 160 Coil. Specifically, your coil balance spring should be our S160-5 since it is marked with a 5.

Your pivot bar looks like it could be our 26-063. Carefully review the dimensions for the hole placement to determine if this might be a fit. The length should not affect the function of the part, so those are the most important measurements to confirm.

Alternate image for 26-063

You may also need the bumper, part 15-148. Again, look over the dimensions to confirm that this might be a fit.

Dimensions for 15-148
