IWC impact window balance replacement

A handy person from South Florida says:

May 21, 2023

I need to replace the channel balances on our IWC single hung windows. The balance length is 24", 1/2" wide, marked 23 20 DS and I was initially thinking the 377 2320 would work but the top looks more like a 19-041 than a 19-018 . Could you advise?
I've attached pictures.

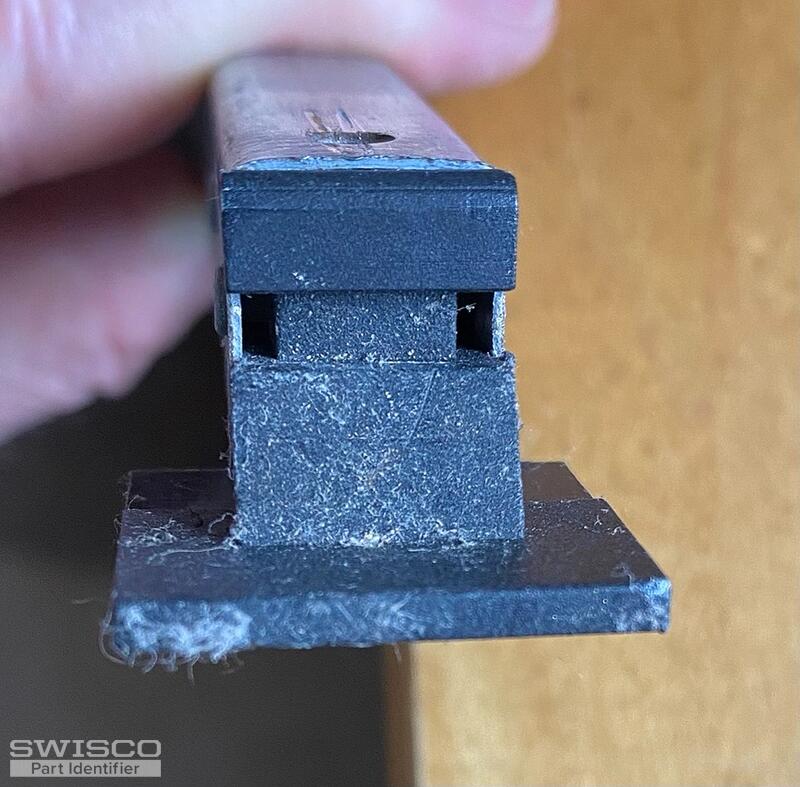

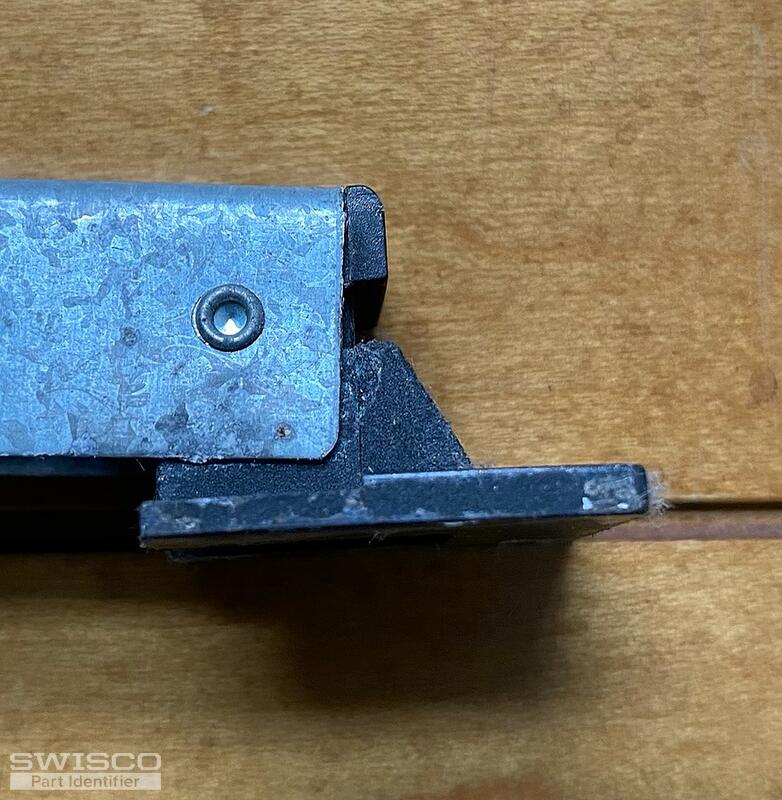

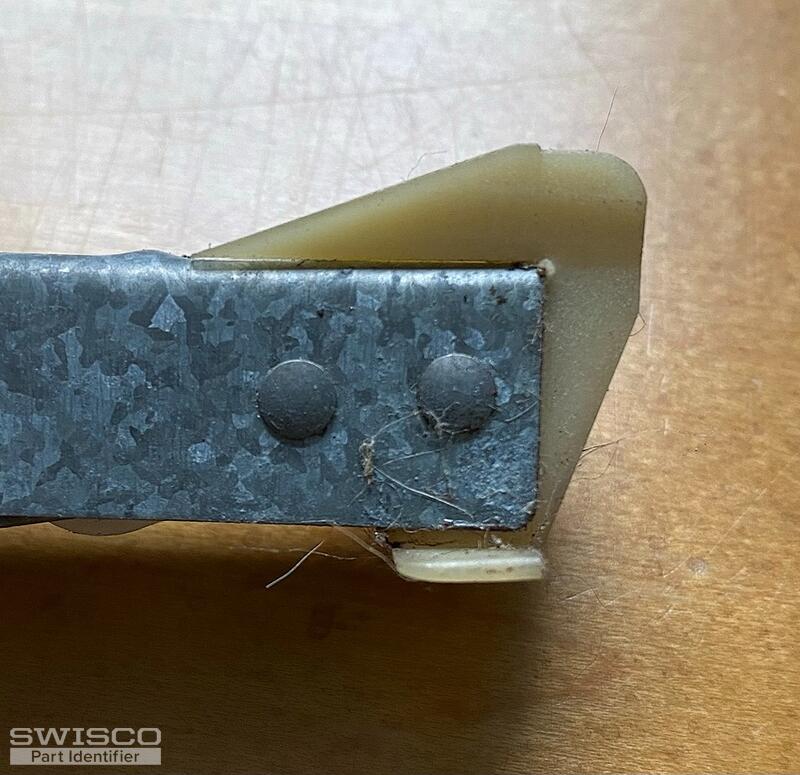

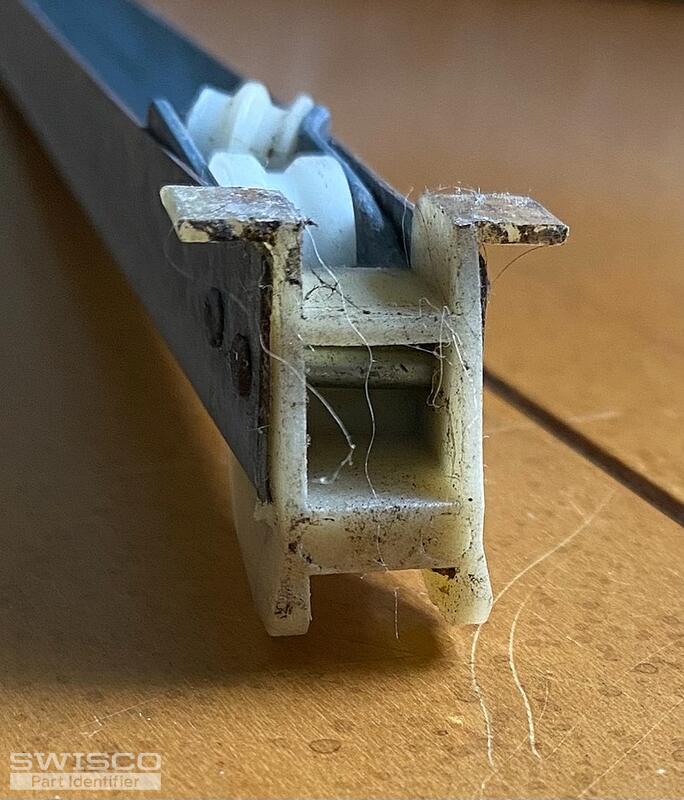

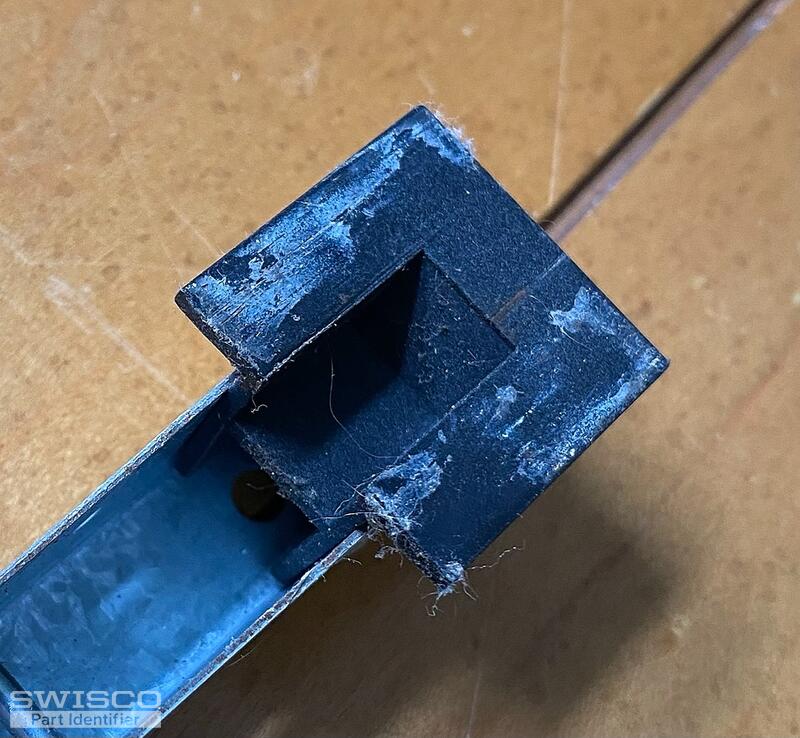

Thumbnail of the uploaded file named IMG_1474.JPG

Thumbnail of the uploaded file named IMG_1475.JPG

Thumbnail of the uploaded file named IMG_1479.JPG

Thumbnail of the uploaded file named IMG_1470.JPG

Thumbnail of the uploaded file named IMG_1473.JPG

Lauren from SWISCO responded:

May 23, 2023

Hello, thank you for posting,

I agree with your assessment that the top attachment resembles the 19-041 . We can custom make this configuration for you via a custom order.

To further review, are you able to confirm the depth of the bottom shoe attachment as shown below?

Comparison of 15-004 and 15-005

Once confirmed, I can send over an order link for purchase. Please advise how many you need as well. Thank you!

Winged Channel Balance Shoe, 1" Depth

15-005

$0.74

Channel Balance Top, New Security
