Identify replacement

A quick learner from Orlando says:
October 13, 2010
I have a non tilt aluminum window that is original to my 1989 house. It is very hard to open and close the window, the channel balances seem to not move smoothly with the window. I removed the balances to try and replace them, but do not see any serial numbers or other identifying numbers. I took pictures of the channel balance:

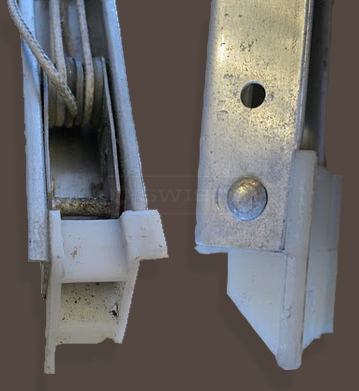

User submitted photo of their channel balance.
Could you please help me find a proper replacement? The width of the metal is 9/16" and the length is 23 1/8".

Thanks
Profile picture of Mike
Mike from SWISCO responded:
October 14, 2010
Our channel balances are available on the inch. Please make sure you're only measuring the channel part of the balance, and not the shoes.
A quick learner from Orlando says:
October 14, 2010
I think it's 23" then. I only measured the metal channel length and not the shoe. Thanks.
A quick learner from Orlando says:
October 24, 2010
Have you been able to find a replacement? Thanks
Profile picture of Paul Sr.
Paul Sr. from SWISCO responded:
October 25, 2010
You have a balance with 19-002 and 15-005 fittings. Either 2210, 2220 or 2230. We need weight of sash to determine which balance. To determine the weight of your window sash, remove the sash from the window and weight it on a scale (a bathroom scale would be fine).
A quick learner from Orlando says:
October 25, 2010
On my bathroom scale, the sash is about 13-14 pounds. Thanks you.
Profile picture of Donna
Donna from SWISCO responded:
October 27, 2010
A 23" Non-tilt Channel Balance with stamp option 2230 will carry a window sash weight range of 12 through 19 pounds.
This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
I will email you a custom balance ordering link.
