Can you kindly help identify a replacement part?
Simonton Window, lower sash pivot bar is broken/missing. The pivot lock shoe is pictured as well.
Thank you!
Identifying a Replacement Part
Home Owner from Birdsboro, Pennsylvania
May 7, 2024 4:15 pm
3 user uploaded images
6 Replies
Tom from SWISCO
May 8, 2024 2:25 pm
I recognize your pivot shoe, but I'm afraid I can't use that to ID your pivot bar without more context. At this stage it will be very difficult to know what pivot bar will work for your window without the original as a refernece.
Do you have another window in the house that's the same make and model? Even if it's not the same size, if it's the same type then it should use the same hardware. We can use the pivot bar off that as a reference.
Home Owner from Birdsboro, Pennsylvania
May 10, 2024 10:03 am

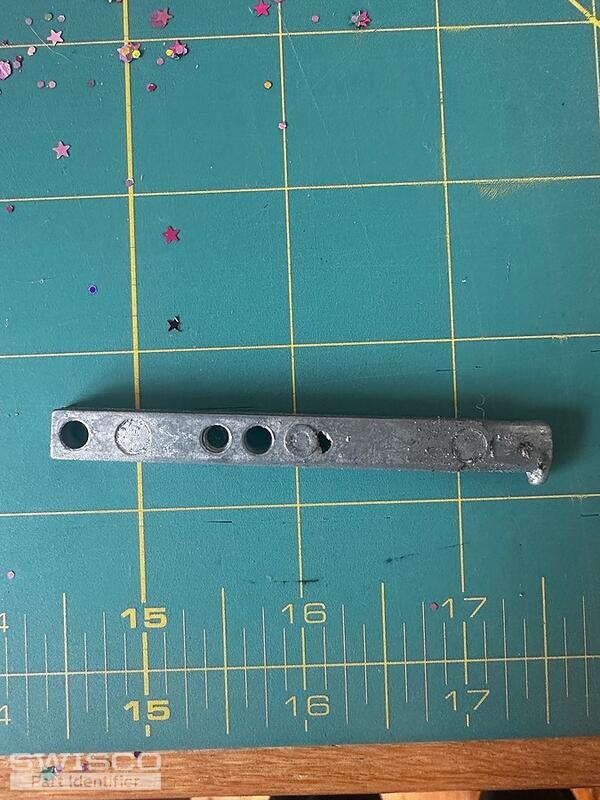

Hi, I took one out of another window. Does this photo help?
1 user uploaded image
Tom from SWISCO
May 10, 2024 11:52 am
Hello! This pivot bar appears to be a match for our 26-241. You can review our dimensions below to verify.
Alternate image for 26-241
Home Owner from Birdsboro, Pennsylvania
May 10, 2024 12:04 pm
Yay! Thank you. Can you also help identify the replacement for my pivot shoe?
Tom from SWISCO
May 10, 2024 1:43 pm
Sure, yours looks like our 15-111. I'll also share our specs for this part for you to review.
Alternate image for 15-111
