Identifying channel balances

Home Owner from Tucson, AZ
May 14, 2024 4:28 pm

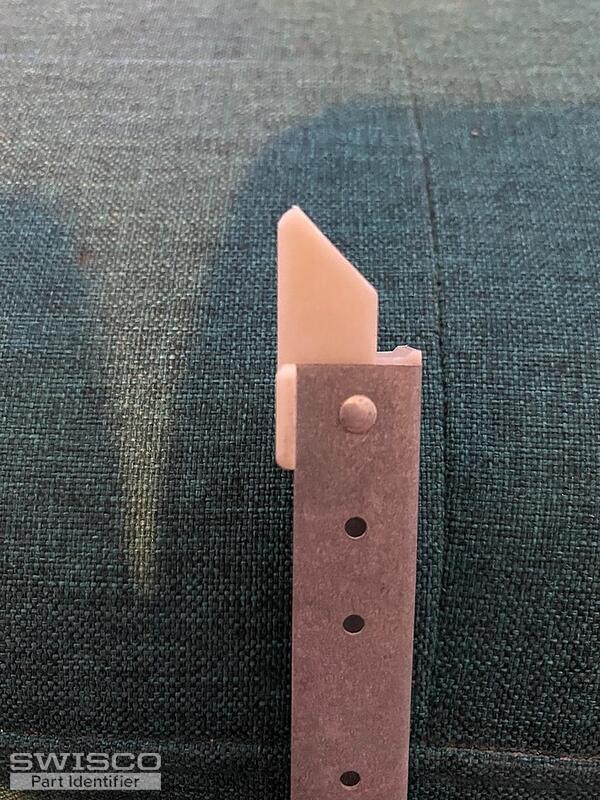

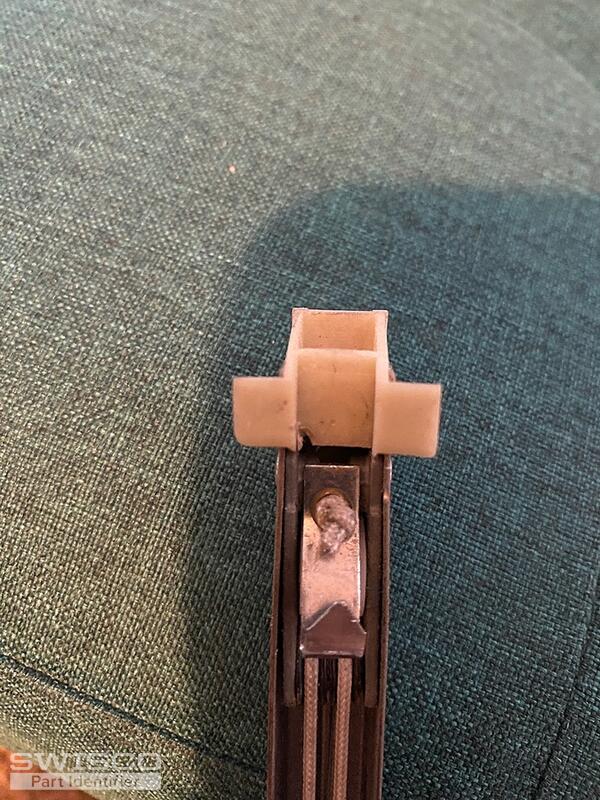

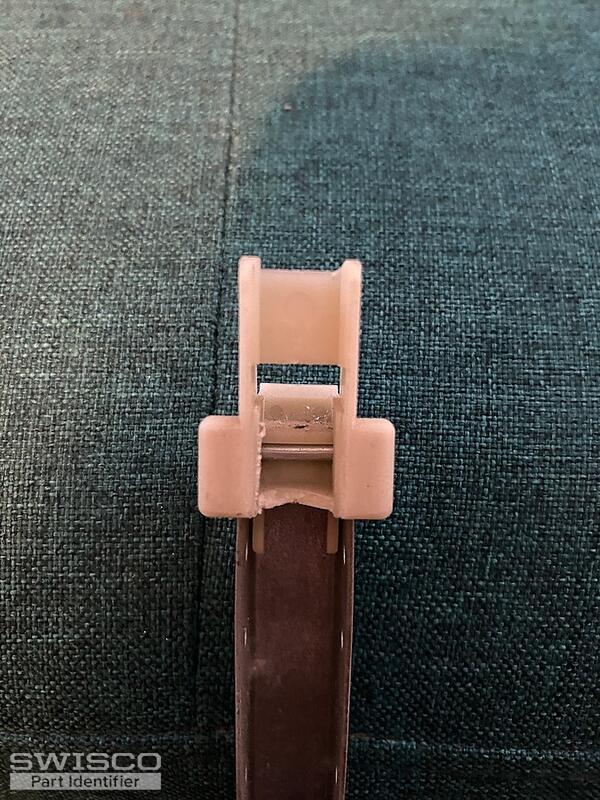

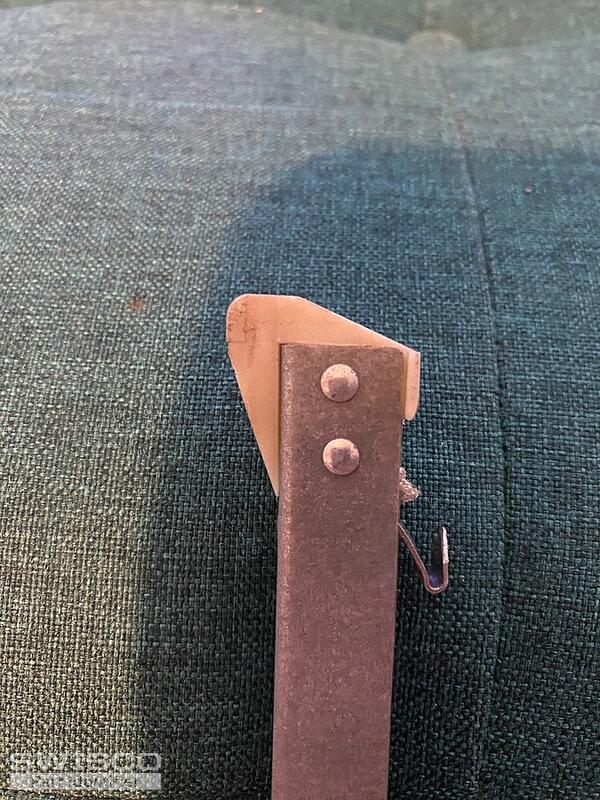

I'm hoping to buy 20 channel balances to refresh my home's windows. The photos I took of the ends may look strange; I believe tiny parts of plastic have worn down and broken over time.

Additional info:

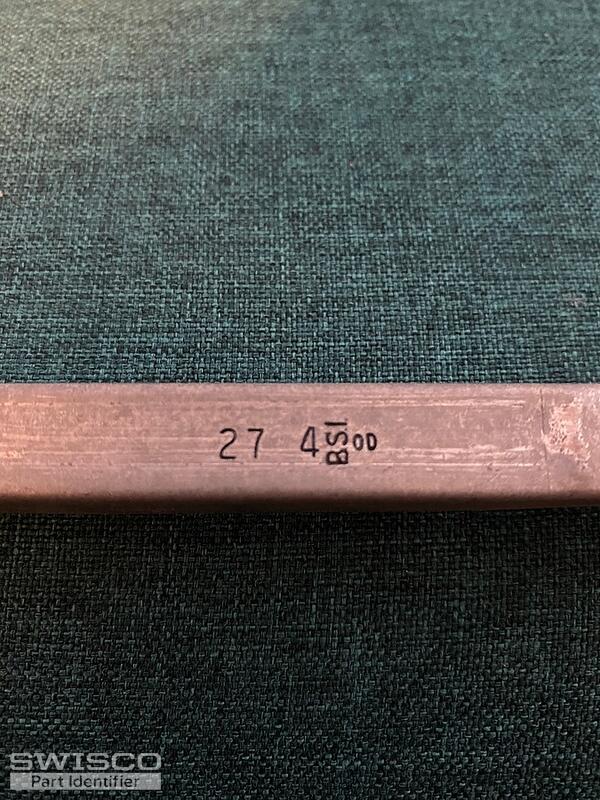

- The only stamping on my channel balances reads "27 4 BSI OD" (BSI text is stamped perpendicularly to other text).
- The metal portion of the channel balance is 28 inches long.

Thanks for your time!
IMG_2353 IMG_2352 IMG_2350 IMG_2348 IMG_2343
5 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
May 15, 2024 10:11 am
SWISCO
EXPERT

Hello,

Your balance looks like it could be either the S380-28 with 1" shoe or the S385-28 with a 1-3/32" shoe. To determine which of these is the series, you'll need to confirm the dimensions for the depth of your bottom shoe.

You'll need the 2740 option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Quick Learner from Tucson, AZ
May 15, 2024 12:09 pm
Thank you for the speedy and thorough response, Jasmine. I'll go with the S380-28 since the shoe on my channel balance is 1".
Jasmine
Jasmine from SWISCO
May 15, 2024 12:33 pm
SWISCO
EXPERT

I'm happy to help! Please don't hesitate to reach out with any other hardware repair questions you might have.

Have a great day!
