Is this Compatible with PGT handle

Handy Person from Sanibel, FL
Jun 12, 2023 7:26 pm

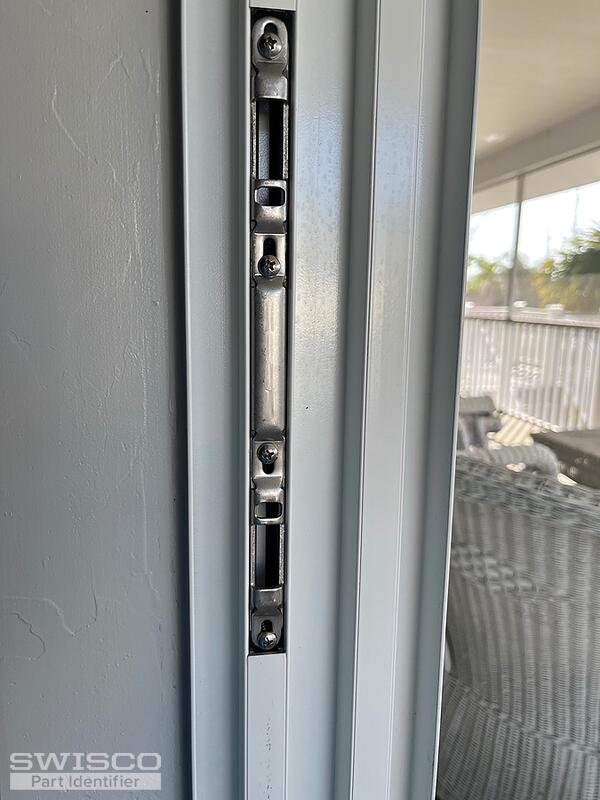

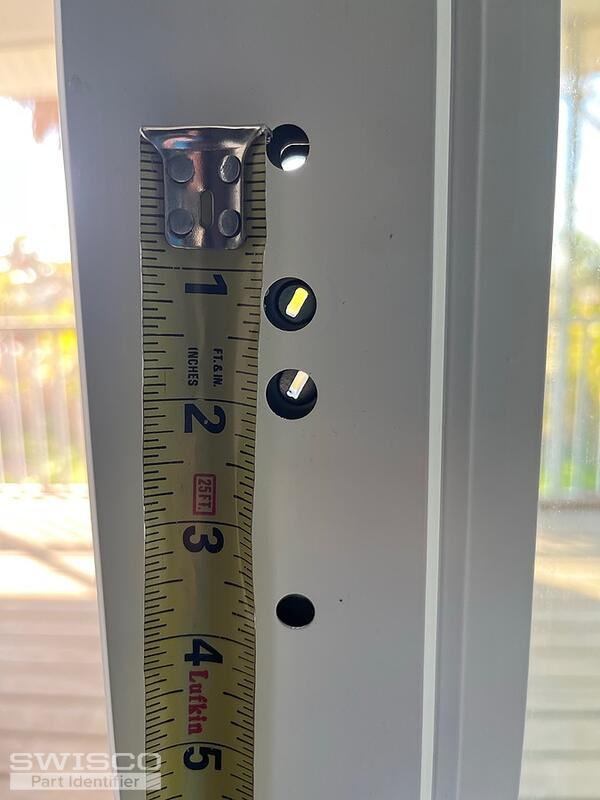

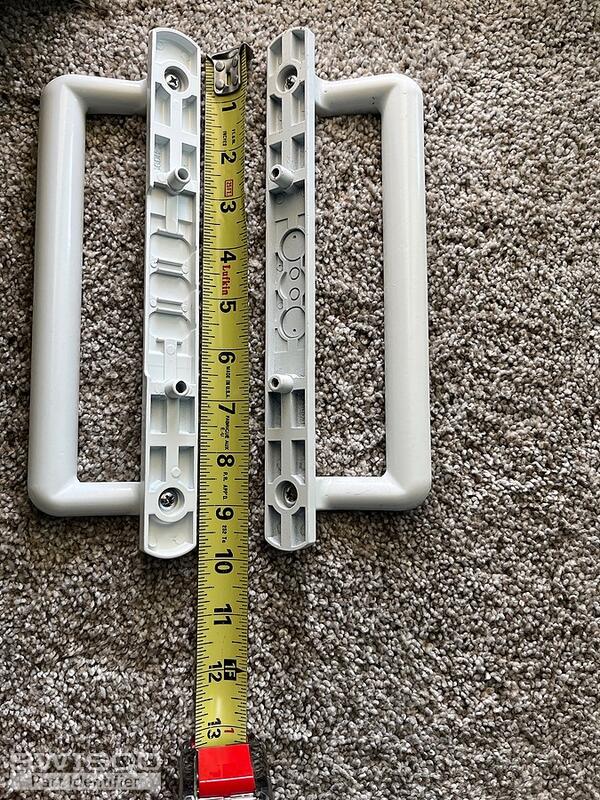

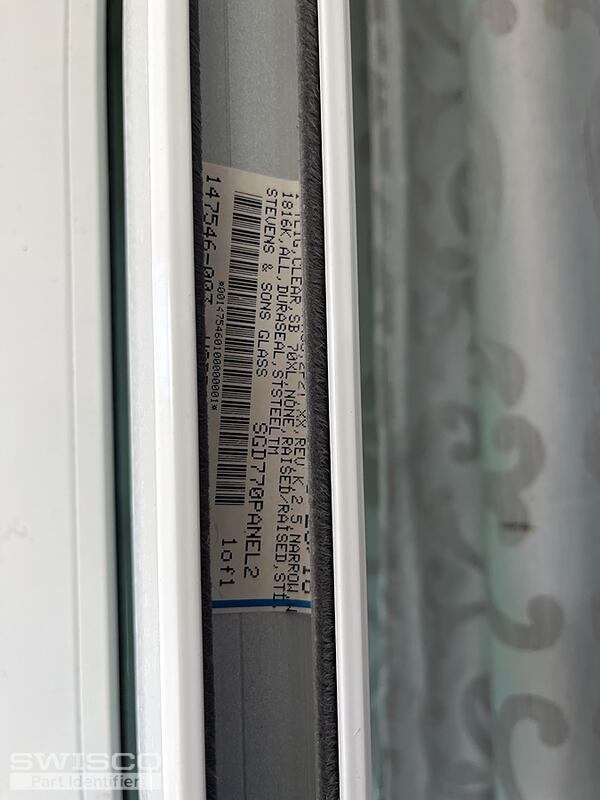

I have a PGT SGDH-6 handle (double latch) on our PGT SGD770 hurricane sliding glass door that I need to add an external key lock. I attached a few pics. Will this external key lock work on this handle?
IMG_6487 IMG_6484 IMG_6480 IMG_6473
4 user uploaded images
3 Replies
Casey
Casey from SWISCO
Jun 13, 2023 12:51 pm
SWISCO
EXPERT

Hello,

We do offer the 82-310 or 82-315 key locks. The locks are identical but the correct replacement would depend on if your original external handle has a built-in protrusion to install the lock or not. See the video below that shows the process of tapping out the circular punch of the external handle to install a keylock below. To confirm if our locks would be compatible we would like to see the face of the mortise lock in the center of your door that the lock spindle would engage with. Thank you!

Alternate view of 82-310
Alternate view of 82-310

Dimensions for 82-315
Dimensions for 82-315

Handy Person from Sanibel, FL
Jun 20, 2023 3:25 pm

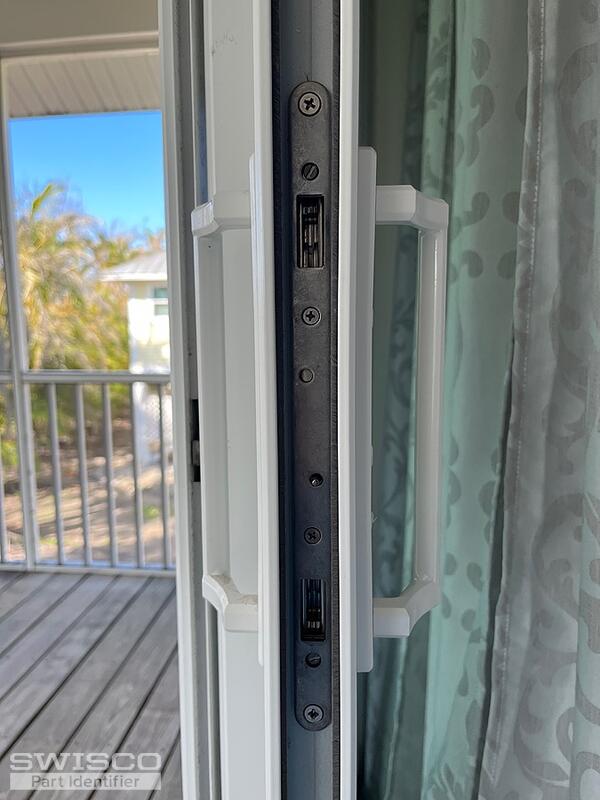

Is this the correct angle of the photo you requested?
IMG_6483
1 user uploaded images
Casey
Casey from SWISCO
Jun 20, 2023 3:36 pm
SWISCO
EXPERT

Thanks for getting back to us. Your mortise lock resembles the 82-265, which would be compatible with our replacement key locks. It also looks like your external handle is flat, so you would need the 82-315 that comes with a housing for the lock body. Take a look and let us know if you need anything else.

Alternate image for 82-265
Alternate image for 82-265
