Jeld Wen Premium sliding vinyl door parts.

Contractor from Gulf Shores Alabama
Feb 8, 2021 8:59 pm
I have 4 sets of Jeld Wen Premium vinyl doors. I need rollers, latches, and interior and exterior handles. The doors are located on a beach front property and the roller assemblies are rusted in place. Jeld Wen does not have a part number but when you go to their web site and add the rollers to the cart the SKU is 2079. I saw the stainless rollers that you have and that is what I would like to go with. The latches and handles I know will not be stainless. I am trying to get part numbers for all so that I can place an order. On Jeld Wens site there are only two types of doors. Builder and Premium. I have premium.
handle 1 handle 2
2 user uploaded images
3 Replies
Bob from SWISCO
Feb 11, 2021 11:25 am

Hey Eddie. For the handle set, check out our 82-091. I think this can work for you; just look over the dimensions to confirm. If you need the door's inner mortise lock, this handle set can work with a few different kinds so we will need to see yours to determine which you need. Finally, patio door rollers vary a tremendous amount even when you know the brand, so I am afraid the only way to say what you might need is to see your old ones out of the door. Watch the videos below.

Contractor from Gulf Shores Alabama
Feb 15, 2021 5:19 pm

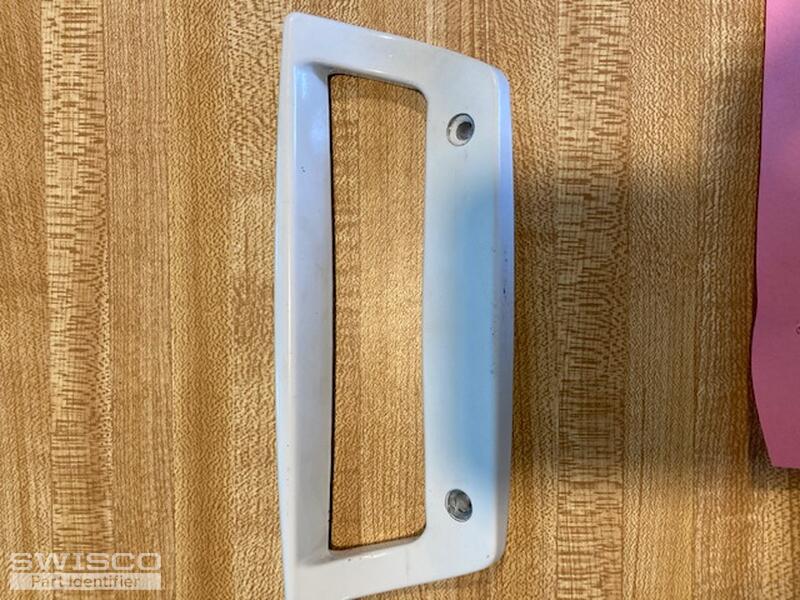

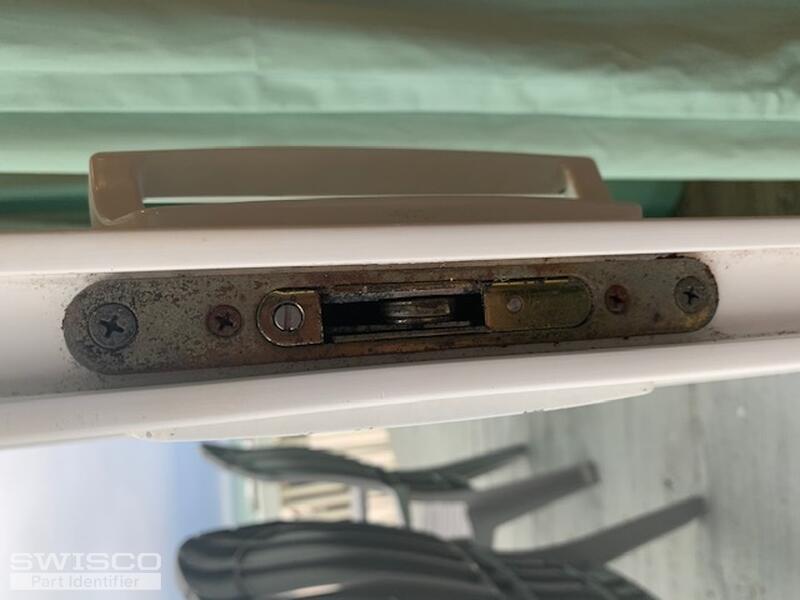

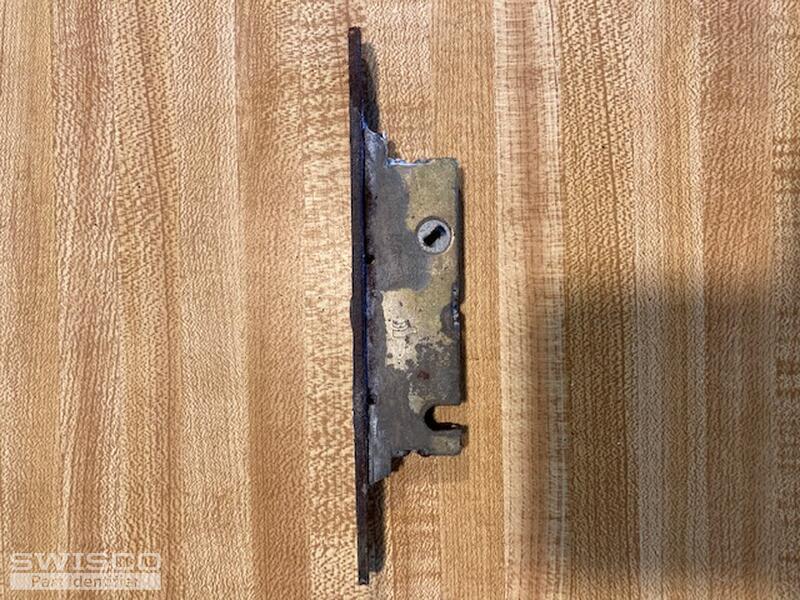

These are pictures of the rollers, handles, and latches. The roller mounting holes are 5 3/4 on center. The latch is 5 3/8 on center, the handles are roughly 3 15/16 on center. Our interior lock lever appears to sit in the bottom third of the handle. Your newer handles may be different or adjustable for that distance.
IMG_0263 IMG_0262 (1) IMG_0265 IMG_3872 IMG_3873
5 user uploaded images
Dave Sr.
Dave Sr. from SWISCO
Feb 16, 2021 8:12 am

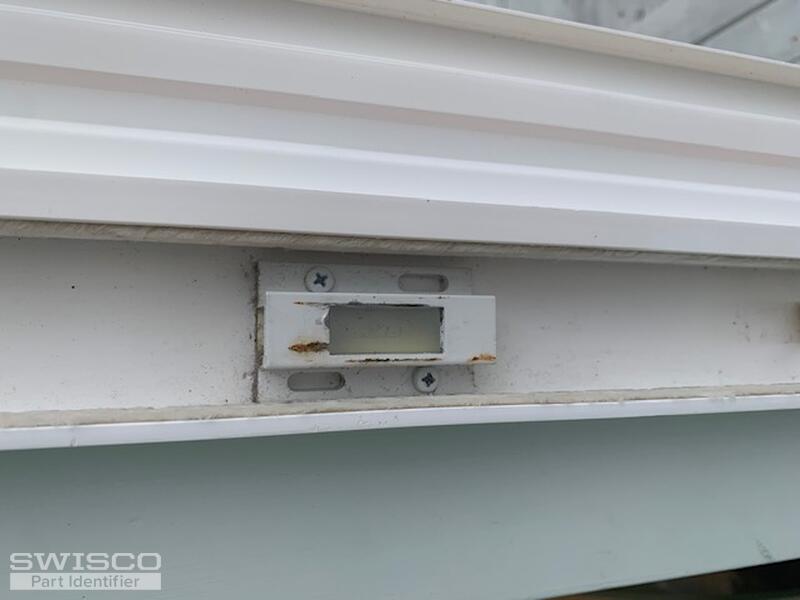

Maybe I can help! Looking over your parts I believe you need the 81-156SS stainless tandem roller, which has the adjustment screw at the end of the roller housing. As for the lock it appears you have the 82-227. However you could order the 82-243 stainless mortise latch and install it using your existing mortise face plate. Or order the 82-227 and use the face plate and keep the mortise for a patio repair, maybe in storage somewhere in a less corrosive area away from the beach. The keeper is either the 89-029 or the 89-041 which comes out further from the jamb. Compare them with your keeper. Lastly the handles, the 82-091 handle set has a interior aluminum die cast handle which might hold up better in the salt air. The exterior handle however is regular die cast. We also carrier the 82-030 handle set which is used on Jeld Wen patio door with an "open" pull exterior handle which makes it easier to open door from the outside.
