Jeldwen window parts needed

Quick Learner from Dakota land
Jun 26, 2023 4:49 pm

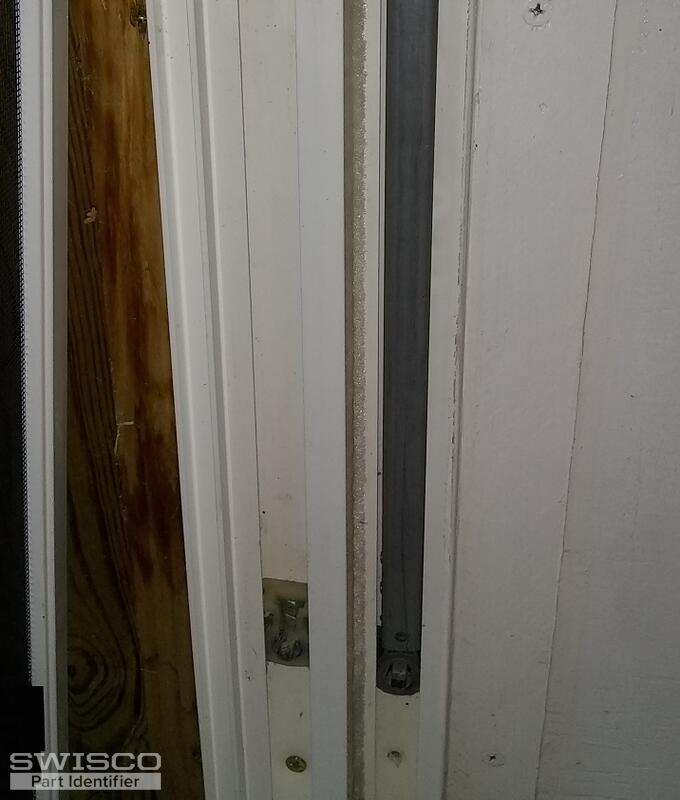

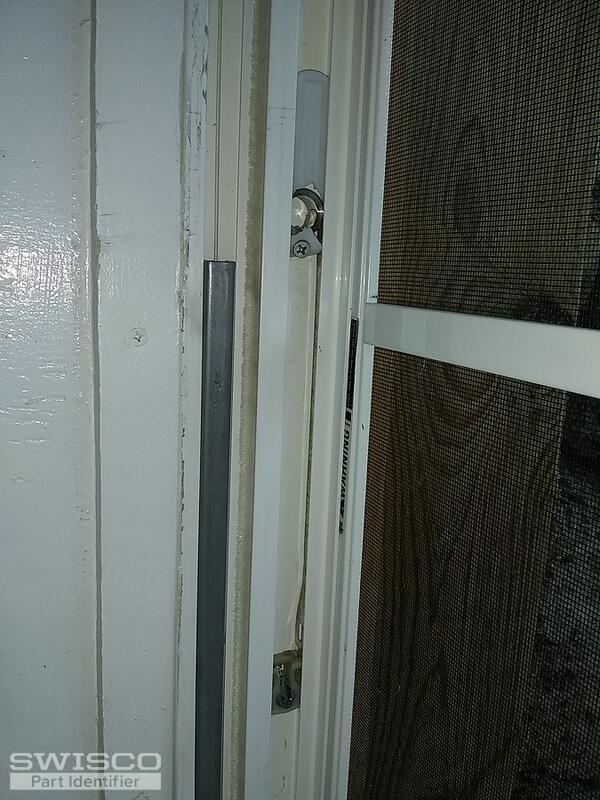

As per my chat with a Swisco help desk rep, this am, attached are pictures of the window parts I need.

There are two pictures of each part. One is totally broke, the other seriously cracked. I need one for the left hand and one for the right hand side.

Please let me know if you have them or something similar that would work, price etc.

Regards,
Everett
4F2E3565 4019C880 A1E2F1BB A57BF422
4 user uploaded images
10 Replies
Emily
Emily from SWISCO
Jun 27, 2023 1:54 pm
SWISCO
EXPERT

Hi there, Everett.

Thank you for reaching out to us. This is an odd setup you have here. It appears one sash uses a channel balance while the other uses a coil balance. The balance is the Series 795 but note that this comes with the 15-195 closed-cam shoe by default. I'm not sure if that's the case with your old one so I recommend removing it from the window to confirm. One important detail to note is that the Series 795 attaches to the top of the track using a screw, not a hook. If yours needs a hook then let me know; we can still help but your balance will have to be custom-made.

I'm afraid the pivot shoe is too obscured by the window track to make out. Can you remove an undamaged version and show us some photos? That's the only way for me to ID it.

You may also want to check a few identical windows in the house to see if any have the same balances for both sashes.

Quick Learner from Dakota land
Jun 28, 2023 12:37 pm
Emily,
The Channel Balance uses a hook on the end of the string, to attach to the top of the channel, and they work satisfactorily.

All I need. is the Coil balance for each side, one right and one left, and attaches with a screw as pictured. As viewed from the inside, the left one is totally broken, and the right one is cracked.

I need to know about availability, and price.
Thx,
Everett
Emily
Emily from SWISCO
Jun 28, 2023 1:05 pm
SWISCO
EXPERT

Thanks for clarifying! I'd be happy to help ID your pivot shoe but I'm afraid I'm not able to get a good look at it when it's installed. Seeing it removed from the window would allow me to identify it.

Quick Learner from Dakota land
Jun 29, 2023 9:23 am
Your video does not help me much as I believe my window parts are made different. I look at it today and get back to you with a better picture.
Quick Learner from Dakota land
Jun 29, 2023 2:28 pm

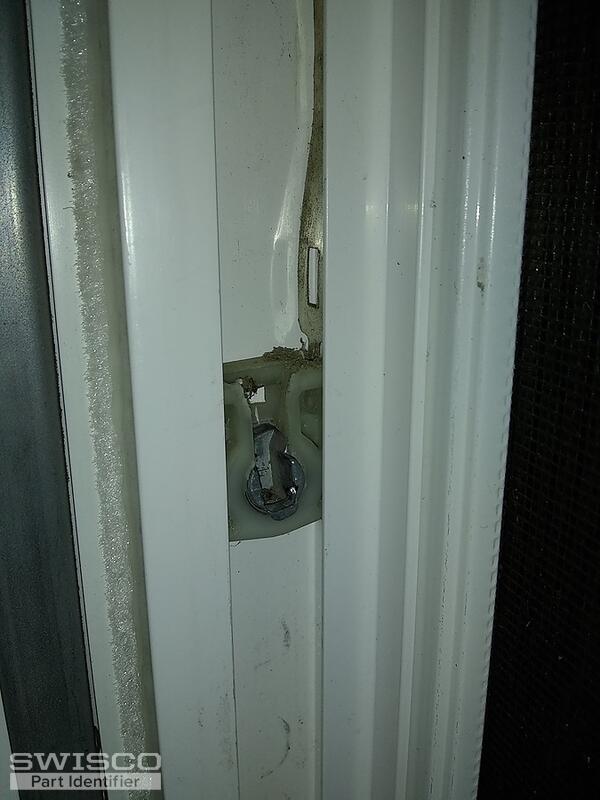

Emily, Attached are much better pictures of the part I need.
Please advise,
Everett
IMG_20230629_125211740[1] IMG_20230629_125218020[1]
2 user uploaded images
Emily
Emily from SWISCO
Jun 30, 2023 11:22 am
SWISCO
EXPERT

Your pivot shoe is still too obstructed by the window track, unfortunately. My educated guess is the 15-263 or 15-111 but you would ultimately need to remove your old part to determine if one of them is what you have. The 15-263 uses the short tongue S195 and long tongue S196 springs. The 15-111 uses the Series 160 coil springs.

The 15-263 pivot shoe is compatible with the 15-260 double support and 15-261 triple support, while the 15-111 is compatible with the 15-150D double support and 15-150T triple support. Pricing for these parts can be found on their respective product pages as well.

If you need new springs, check the band of your old one for a stamped code. You'll have to divide the sash weight by the total number of springs in the window to determine the proper spring weights if there isn't a stamp.

Quick Learner from Dakota land
Jun 30, 2023 12:14 pm

I think it is the 15-111 because it uses a coil spring.

However, send me 2 of each, one left and one right, of 15-111 and one left and one right of the 15-263 and bill me accordingly.

thx,

EverettĀ

Emily
Emily from SWISCO
Jun 30, 2023 12:41 pm
SWISCO
EXPERT

Note, the 15-263 uses coil springs as well. Our department can't place orders but you can do so directly on our website at your convenience.

Quick Learner from Dakota land
Jun 30, 2023 1:32 pm
I think that all I really need is the 15-260 Titan Dual Support, as that looks like the part that is obviously broken, and in the picture. Are they the same for each side?
Emily
Emily from SWISCO
Jun 30, 2023 1:50 pm
SWISCO
EXPERT

This support is non-handed so it can work on either side of the window, yes.
