Looking for replacements for the 3"1 & 37" L 3/8" W balance

Handy Person from Charlotte, NC
May 26, 2019 8:15 pm
Looking for a replacement for a 31" & a 37" lenght - 3/8 inch width channel balance for tilt window

Length:31" & 37"
Width: 1/2 inch
Markings: Unknown

Thank you
desperate lady :)
20190525_093548 20190526_193652 20190526_193725 20190526_193923
4 user uploaded images
8 Replies
Handy Person from Charlotte, NC
May 28, 2019 9:29 am
I've found more information that's the same from a previous inquiry.

Series 7880/series 78 SH TILT
AAMA\NWWDA 101/I.S. 2-97
H-R-30-48x72
AAMA Cert. Prog.
Manufac. Code JW12
Bob
Bob from SWISCO
May 30, 2019 8:30 am
SWISCO
EXPERT

Thanks for posting! So what you're actually working with here are Spiral Balances. Spiral balances for tilt windows are distinguished by the length and diameter of the outer tube, as well as the color of the tip. If both sized balances are 3/8" in diameter, then you need an S900-31 and S900-37. You'll then need to select a colored tip option for each. I'm afraid I can't make out the colors in your photos, so feel free to send us closer pictures of the tips if you want to be safe. If you're uncertain, weigh the window sash for each set of balances. You can then match that exact weight with one of the weight ranges listed for each color tip option on the product pages.

Handy Person from Charlotte, NC
May 30, 2019 9:06 pm
Bob, thank you so much for your help, the tip color is green. I've placed an order ORDER NUMBER: 1220275, and if all is good I'll order more to replace all of the 12 windows from my house.

Thank you so much!
dilcia
Bob
Bob from SWISCO
May 31, 2019 7:21 am
SWISCO
EXPERT

You are very welcome. We are glad to have helped you with your hardware. make sure and get back in touch with us to let us know how everything worked out.

Handy Person from Charlotte, NC
May 31, 2019 4:18 pm

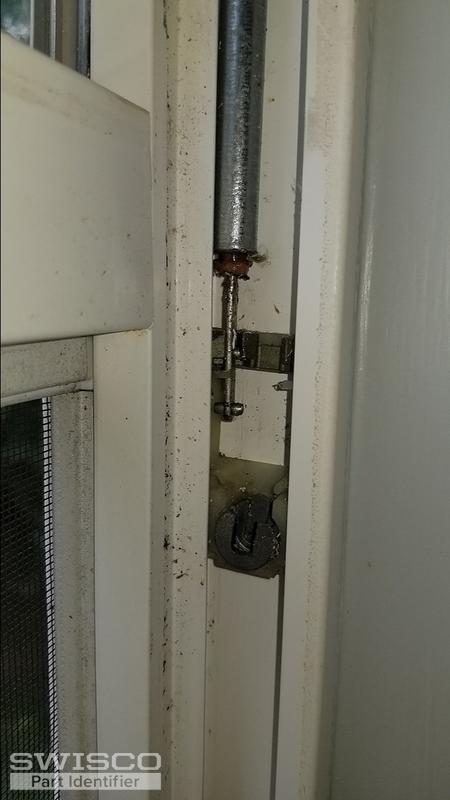

Hi Bob I'm back, it looks like i need to replace the pivot lock shoe, i'm attaching the photos, maybe you can help me identify it

Thanks & Regards
Dilcia
2
1 user uploaded images
Bob
Bob from SWISCO
Jun 3, 2019 9:50 am
SWISCO
EXPERT

Hello! That looks like our 15-188. Look it over and let me know if you agree. I highly recommend removing it from the window to confirm that your dimensions match those we show on the 15-188 store page.

Handy Person from Charlotte, NC
Jun 3, 2019 8:01 pm
Thank you so much, I think it's exactly what I need and the order has been placed

Best regards
dilcia
Bob
Bob from SWISCO
Jun 4, 2019 8:11 am
SWISCO
EXPERT

Awesome, thank you again! Please let us know how it works out.
