Looking to replace window balances

Quick Learner from Boynton Beach, Fl
Mar 8, 2023 9:04 am

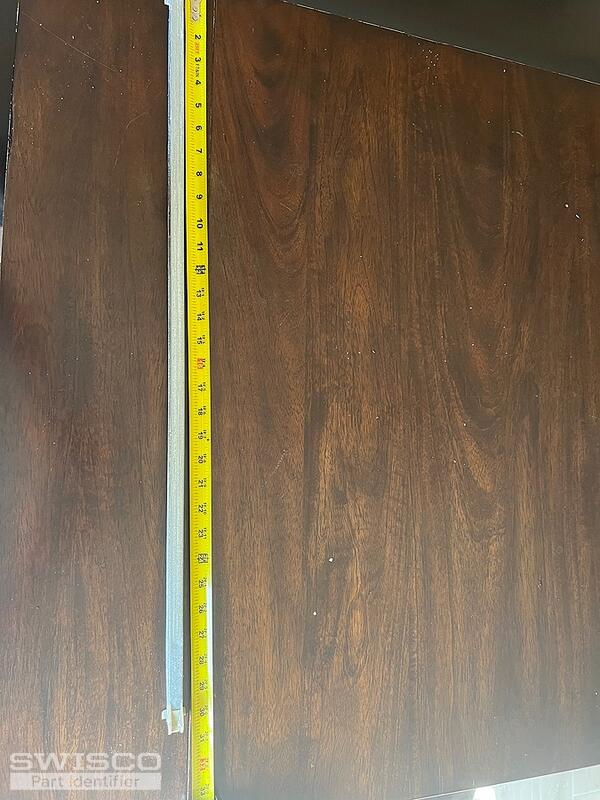

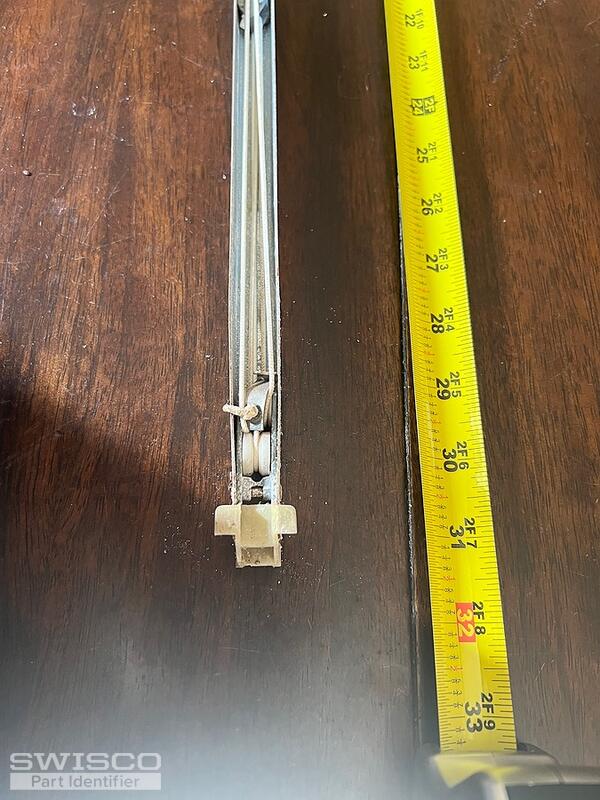

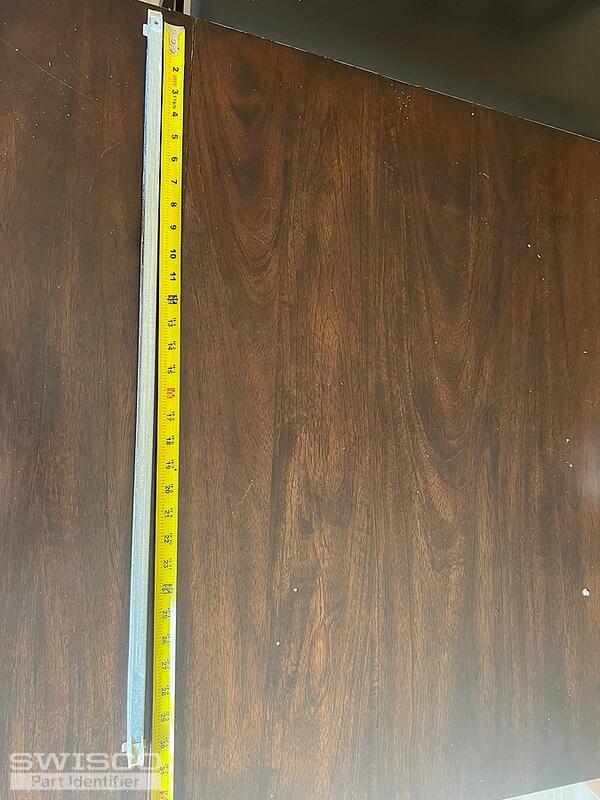

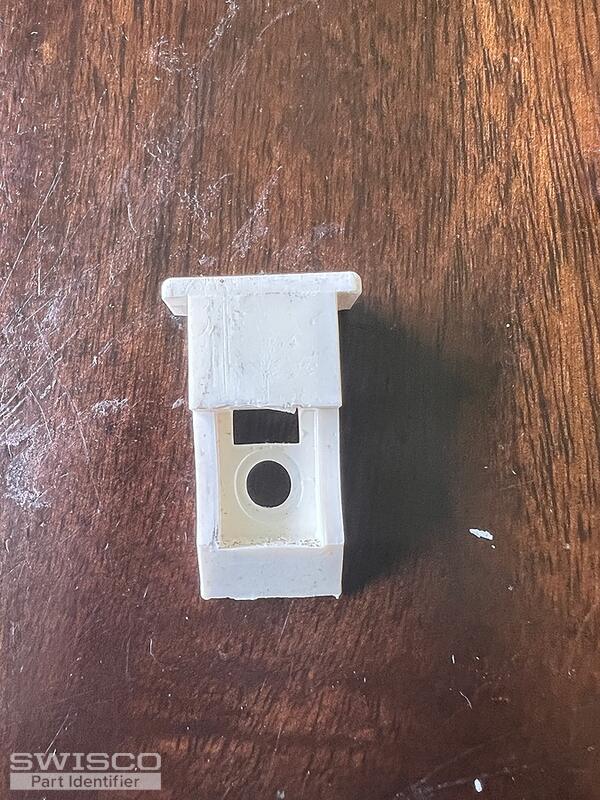

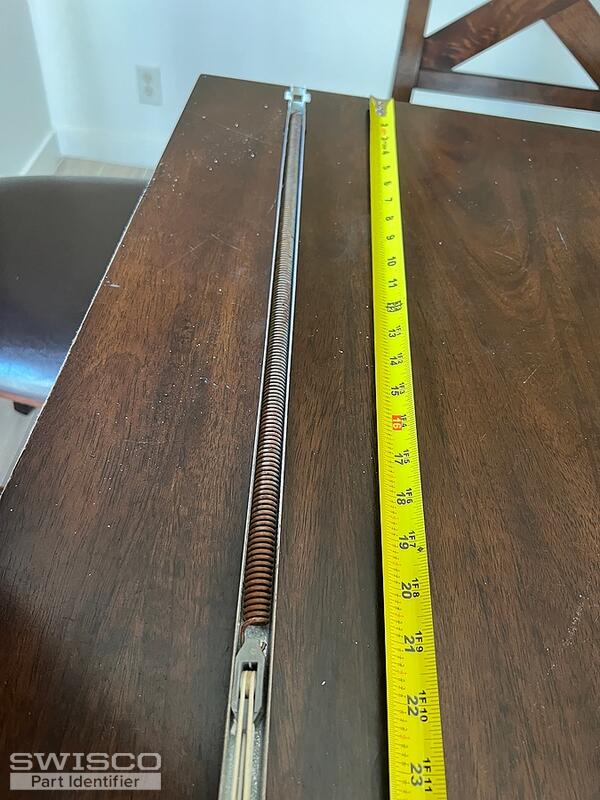

More than half of the windows in my how won't stay open when we lift up the window. From what I saw online, it should be an easy fix. This actually was stuck to the window when I took it out and fell off. Looking to see what I'll need to order to replace them. Have 12 windows, and haven't checked if the same balance is in all. I'm sure they would have to be measured individually.
2C34C234-3E45-4577-AFFC-3AF9C24FA0BC 73AFD0CB-54E0-4713-B8B7-327356F00CAD 9182A761-7CA0-453C-BEA3-A081FD2F6C61 C1AA8DBB-3E2B-4289-8DEC-B152C235C6ED C155754B-DFF6-4FE1-A2D8-A1D4F82445F9
5 user uploaded images
5 Replies
Emily
Emily from SWISCO
Mar 8, 2023 4:00 pm
SWISCO
EXPERT

Hello!

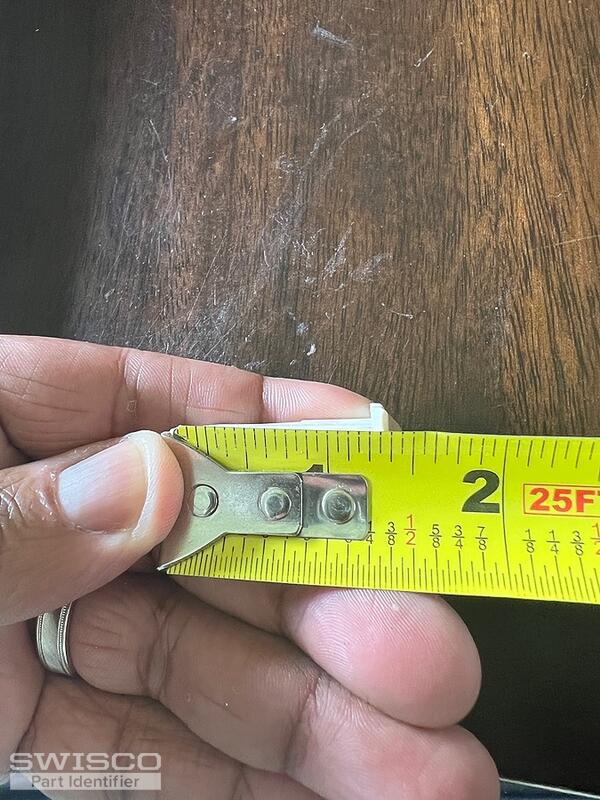

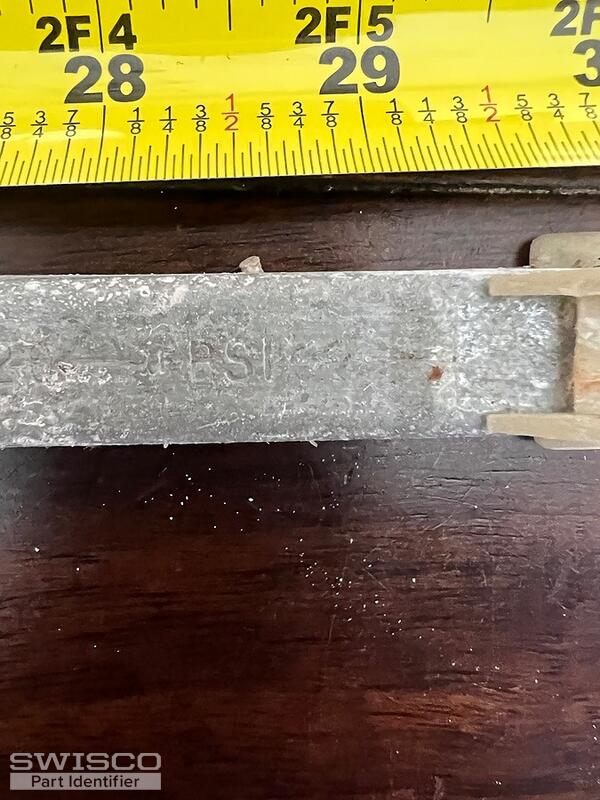

It indeed sounds like you need new window balances. Based on what I see in these photos, my recommendation would be the Series 380 or Series 385. The difference between them is the depth of the bottom fitting so you'll need to measure as shown below. You will also need to refer to the stamp imprinted on the balance's metal channel to determine the proper spring strength option. The one in your last photo is too faded for me to make out, unfortunately. I recommend checking the balance on the other side of the window to see if it has an intact stamp you can use as a reference.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Quick Learner from Boynton Beach, Fl
Mar 8, 2023 4:37 pm
Thank you so much for the response.
It is the series 380 based on my measurements. 2920 is the option on both balances.

Emily
Emily from SWISCO
Mar 9, 2023 7:55 am
SWISCO
EXPERT

I'm glad I could help. Good luck with your repair and let me know if you need anything else!

Quick Learner from Boynton Beach, Fl
Mar 12, 2023 2:05 pm
Do you carry these as well?
D276642D-5311-4F25-BD0A-0A8A2BBFCE47 74A2A213-D8C6-4A78-A8C2-4172E983254E
2 user uploaded images
Emily
Emily from SWISCO
Mar 13, 2023 9:43 am
SWISCO
EXPERT

We do! The part shown here is called a top sash guide. Our 18-201 was my first though but look over the specifications and see how they match up with yours.
