Milgard window shoe

A handy person from Morgam Hill,Ca 95037 says:

I can't seem to locate the shoe I have off a Milguard window I will attached a photo with measurment.

The number on the balancer is 26 2 DW CMC 10. I do need two of all these components.

I hope I have given you a good description of what I need.

Thanks

Gary

Thumbnail of the uploaded file named DSCN0887.JPG
Thumbnail of the uploaded file named DSCN0888.JPG
Thumbnail of the uploaded file named DSCN0889.JPG

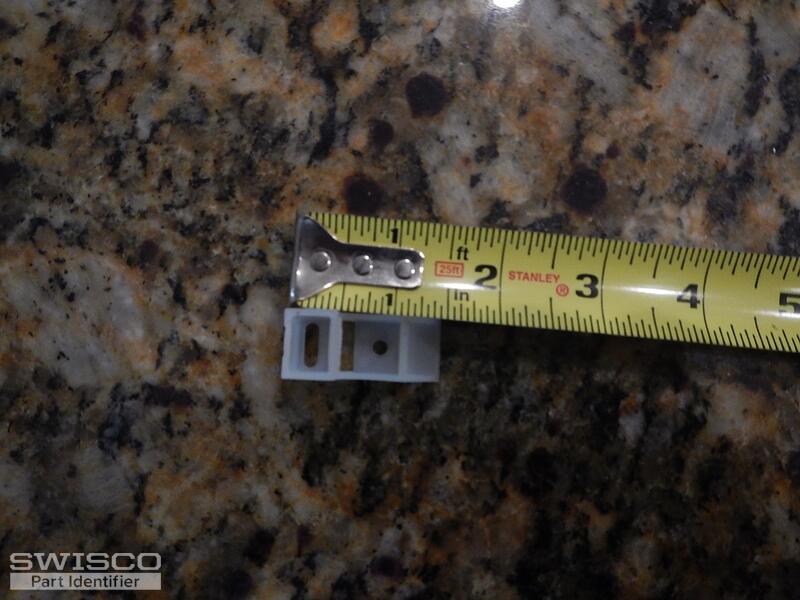

Thumbnail of the uploaded file named DSCN0890.JPG

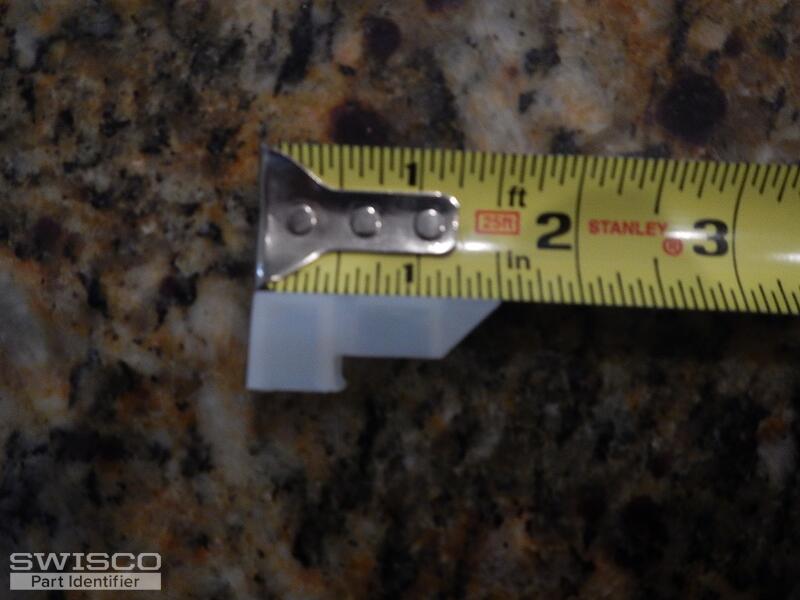

Thumbnail of the uploaded file named DSCN0891.JPG
Profile picture of Bob
Bob from SWISCO responded:

Hello Gary. For the channel balance, I believe you need either our S380-27 or S385-27. The difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare btoh with your old hardware to see what matches best. For a new stamp option you will use 2620.

For the Top Sash Guide, we've seen this type before and I am afraid we don't have an exact match. Look at the ones I've listed on this page and see if any dimensions that match your old one. I think the 18-009 might be the best bet, but I cannot make any guarantees.

A handy person from Morgam Hill,Ca 95037 says:
Morning Bob,

Well I'm not having much luck identifying the two ends so here are more photos. It's definitely a 27" Balancer. Well just send me what you think is my best shot at repairing this Milguard window. By the way this time when I pulled them off the cable broke. SO I need something to replace it with. You the Man!

Thanks Bob

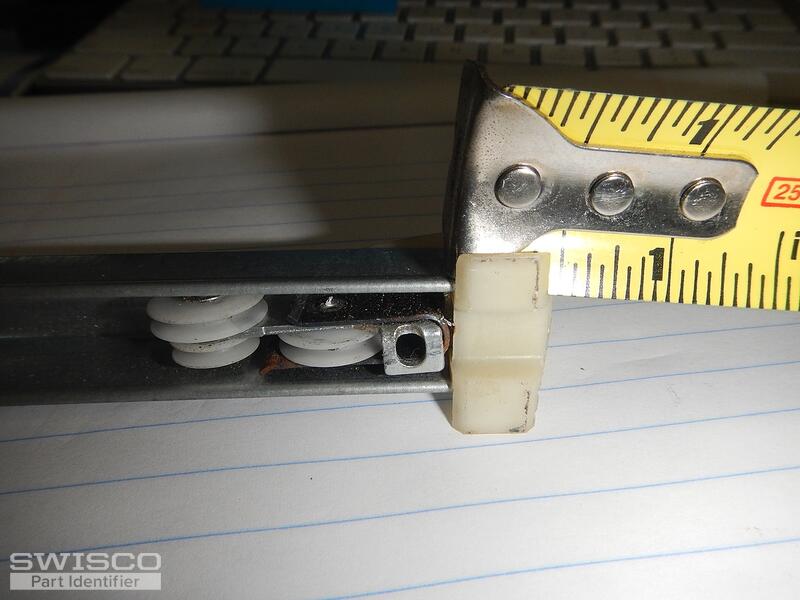

Thumbnail of the uploaded file named DSCN0929.JPG

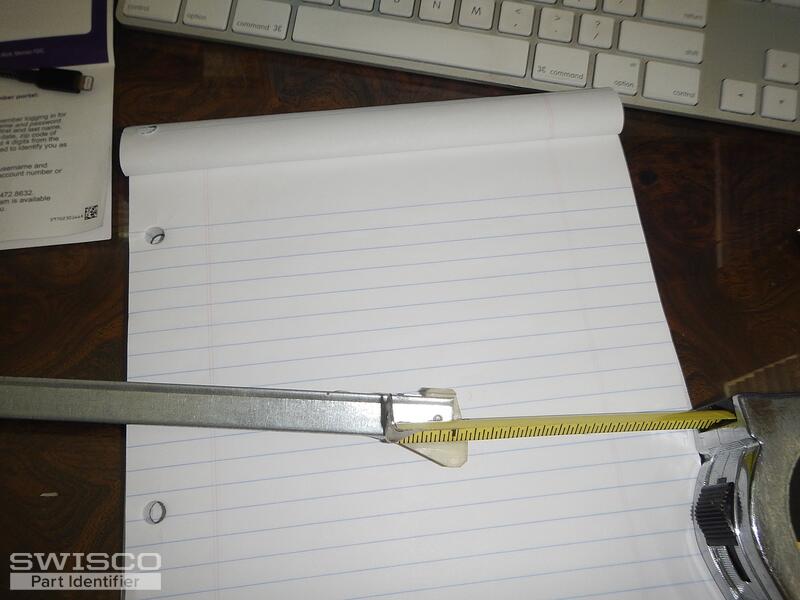

Thumbnail of the uploaded file named DSCN0928.JPG

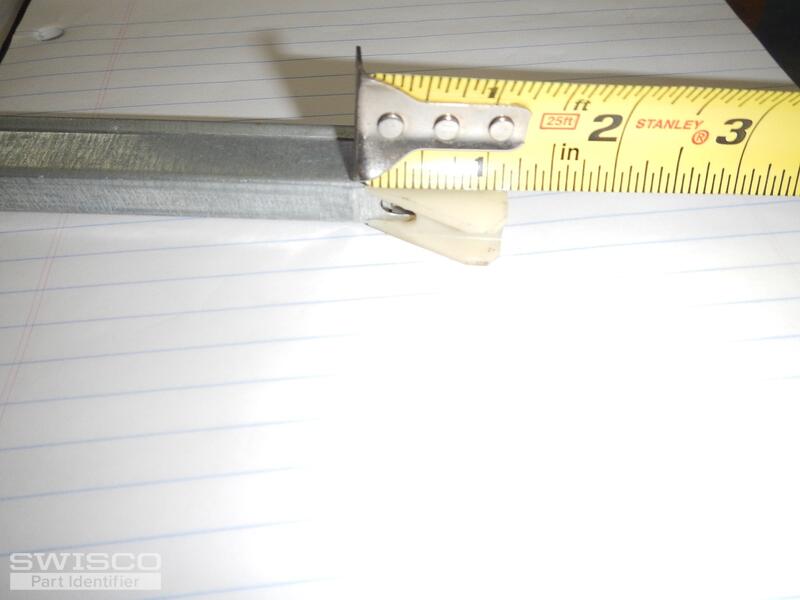

Thumbnail of the uploaded file named DSCN0927.JPG

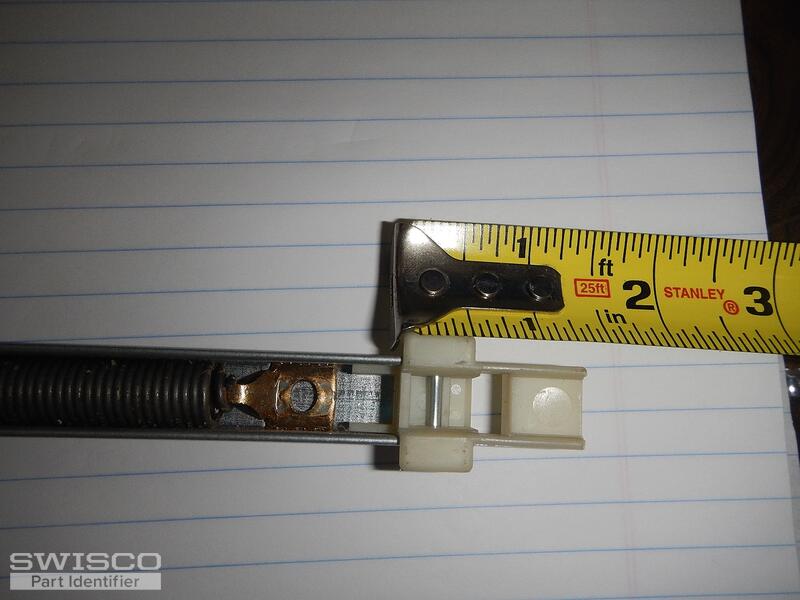

Thumbnail of the uploaded file named DSCN0926.JPG

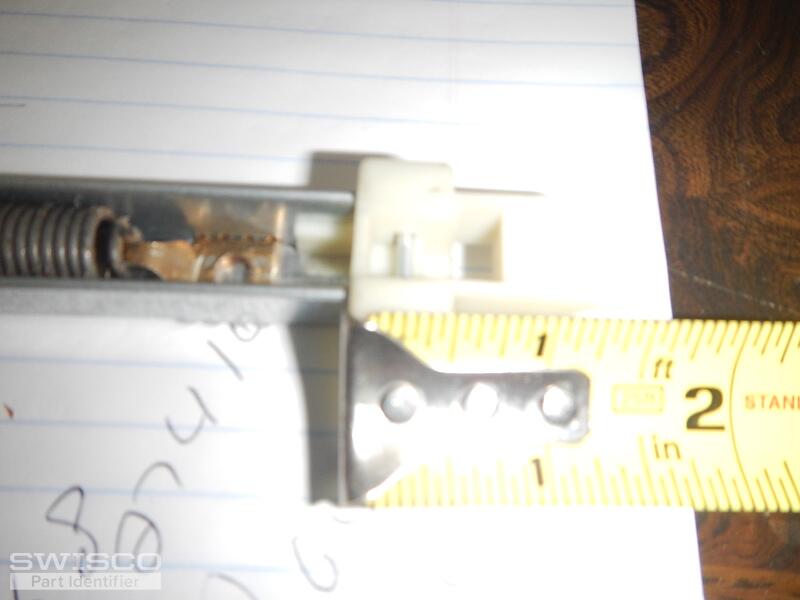

Thumbnail of the uploaded file named DSCN0925.JPG
Profile picture of Bob
Bob from SWISCO responded:

To help, I've put together a diagram for you. The image below demonstrates the different in depth. For the Series 380, the depth is 1"; for the Series 385, the depth is 1-3/32". Compare both to determine what you need.

S380vsS385
A handy person from Morgam Hill,Ca 95037 says:
Morning Bob,

I'M taking the 15-004 which is 1-3/32. 2 of those and I believe I'm good to go.

Thanks for your help!
Profile picture of Bob
Bob from SWISCO responded:

Great, it sounds like you need our S385-27 then. Note that the nylon fittings come attached to this balance, and its ready to install out of the box. Let us know if you have any other questions.
