Need Sash Locks and Keepers to match this

Contractor from Augusta Georgia and Surrounding areas
Nov 28, 2023 5:12 pm

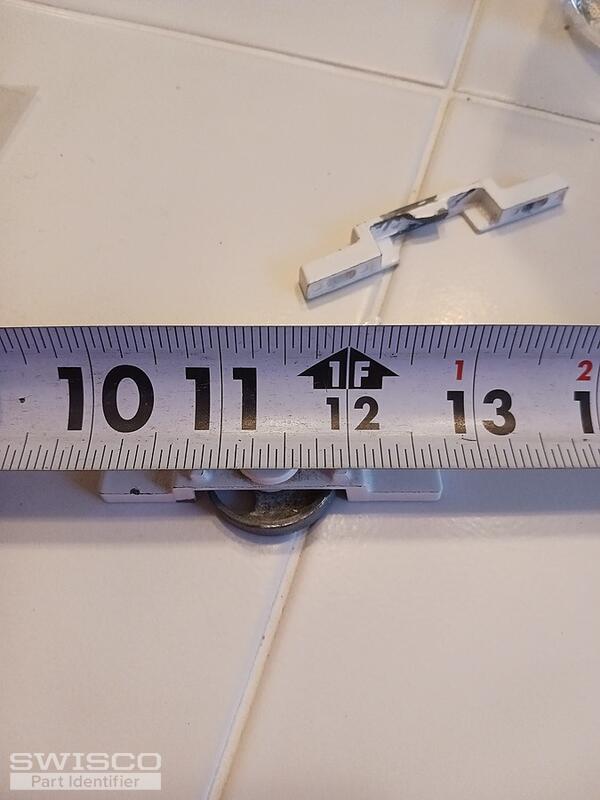

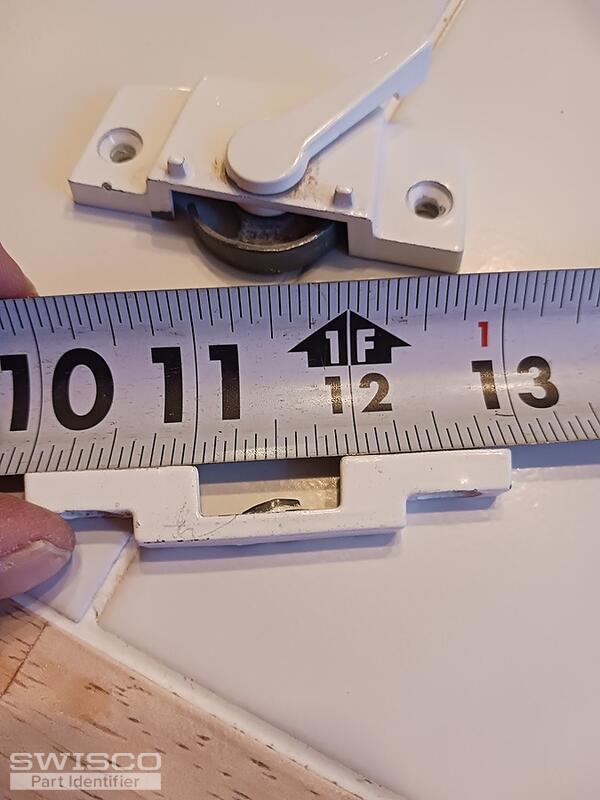

I need 4 of these locks. They are stamped with 680105. The Hole to hole measurement is 2 1/4" width and 3/8" from the front. I have already purchased and tried the 90-161 locks and the keepers are too tall and the throw is too deep.
Thank you!
20231128_170334 20231128_170407 20231128_170436 20231128_170508 20231128_170519
5 user uploaded images
1 Replies
+ Add a Comment
Tom
Tom from SWISCO
Nov 29, 2023 12:15 pm
SWISCO
EXPERT

Hello! Our 90-180 window lock has the same hole pattern at 2-1/4" apart and with a 3/8" backset. Might this be a better match for your application? Check it out and let me know what you think!

Dimensions for 90-180
Dimensions for 90-180

+ Add a Comment
Products and resources found in this discussion
Window Lock & Keeper, 2-1/16"
Window Lock & Keeper, 2-1/16"
90-161
$8.85
Window Sash Lock, 2-1/4"
Window Sash Lock, 2-1/4"
90-180
$3.15
