Need Simonton pivot bars and shoes

Quick Learner from Burke, VA
Nov 14, 2023 1:24 pm
I have ten Simonton double hung, tilt-in windows from the 90's that have issues. Several have broken either the pivot bar or the shoe, or both as I fix up this house.
For the lower sash, weighed in at 15.4 lbs on the 31.5 width x 51 height windows, of which I have four, the coil is stamped "408"
I didn't weigh the 35.5 x 51 window, qty 3. or the 35.5 x 56, also qty 3.
Do you carry the replacements for these?
I likely need 10-12 pivot bars, and a similar number of shoes or shoe/coil assemblies.
Do I need to have the weight of the larger sashes?
Thank you,
Anderw

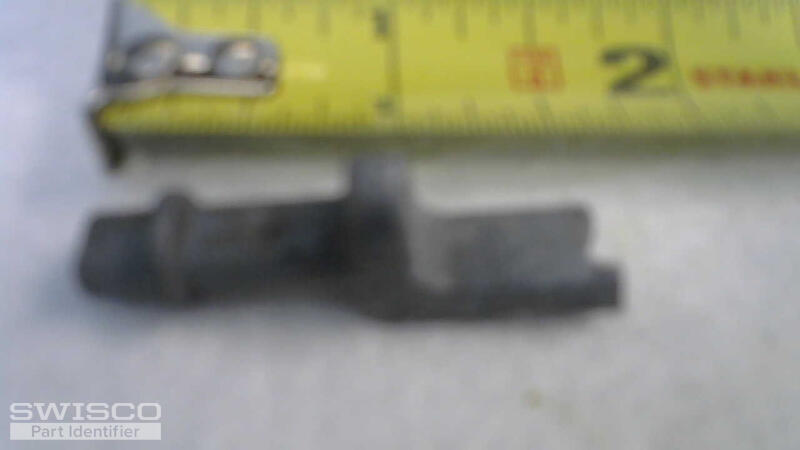

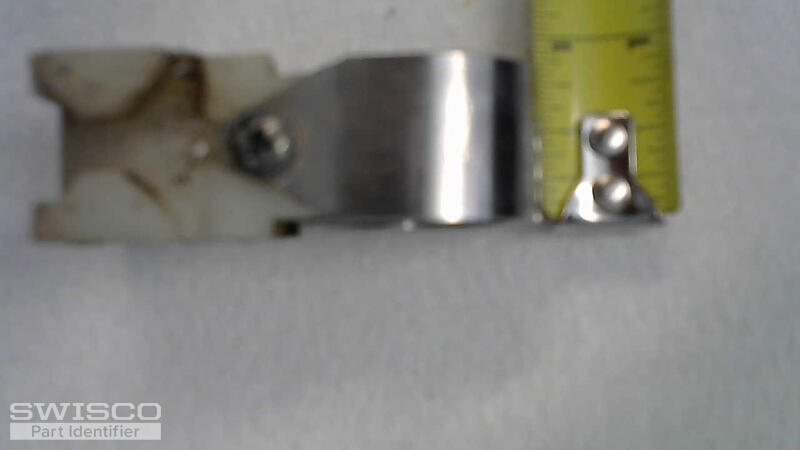

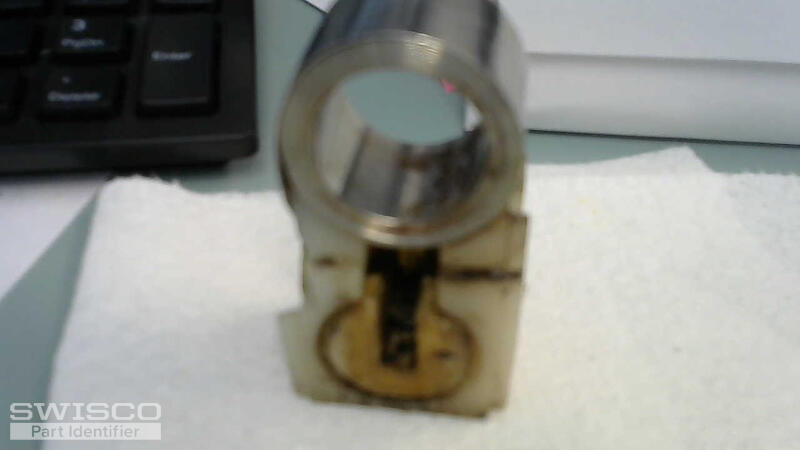

simonton coil .75 width simonton pivot bar simonton coil 408 face
3 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
Nov 15, 2023 12:27 pm
SWISCO
EXPERT

Hey there,

Thanks for writing in! Your Simonton coil balance pivot shoe is no longer made but we do have a replacement solution that will work for you. Take a look at the 15-259 pivot shoe. Take a look over the dimensions below and compare them to your existing shoe to confirm.

Dimensions for 15-259
Dimensions for 15-259

This shoe should fit well in the track, along with the S159 coils springs. For the coils stamped with a "408", you'll need the S159-8. For the other windows, you'll need to confirm the stamp from the springs or the exact weight of the sash to confirm the spring strength. If you need to use the sash weight, you'll need to take the total weight and divide it by the number of coils in the window.

This assembly uses either the 15-255 single support or the 15-256 double support.

Also, keep in mind, to use this assembly the original pivot bars would need to be replaced with our 26-083.

Take a look at the video below for an explanation on how to convert this balance assembly.

Quick Learner from Burke, VA
Nov 15, 2023 2:21 pm
Thank you for the prompt reply, I have watched the video and now just need to weigh a few more sashes as I found some are 17lbs and some are 15.4lbs.
The 17s had two coils, but with new 8.5 coils, I would only need one per side, correct?
Is there an issue with using the 8.5 coils on the 15.4lb sashes? Easy to open, harder to close?

Thank you,
Andrew
Jasmine
Jasmine from SWISCO
Nov 15, 2023 3:07 pm
SWISCO
EXPERT

Hi Andrew,

My apologies, the Series 159 does come in .5lb increments. With that said, for the 15.4lb sash I would suggest using the S159-7.

For the 17lb sash, I would suggest using the S159-8. You should be fine using just one coil.

I hope this helps!

Products and resources found in this discussion
