Need bottom and top nylon/plastic for wood bifold

Quick Learner from Cleveland

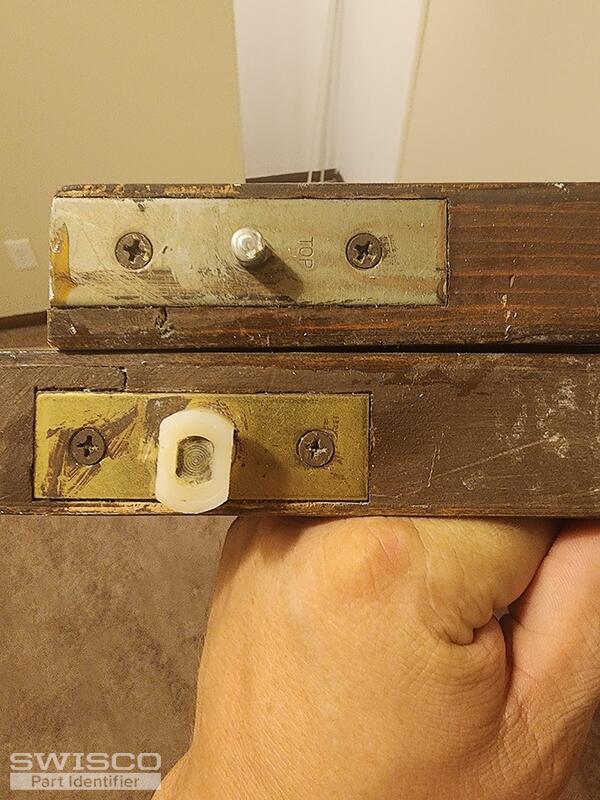

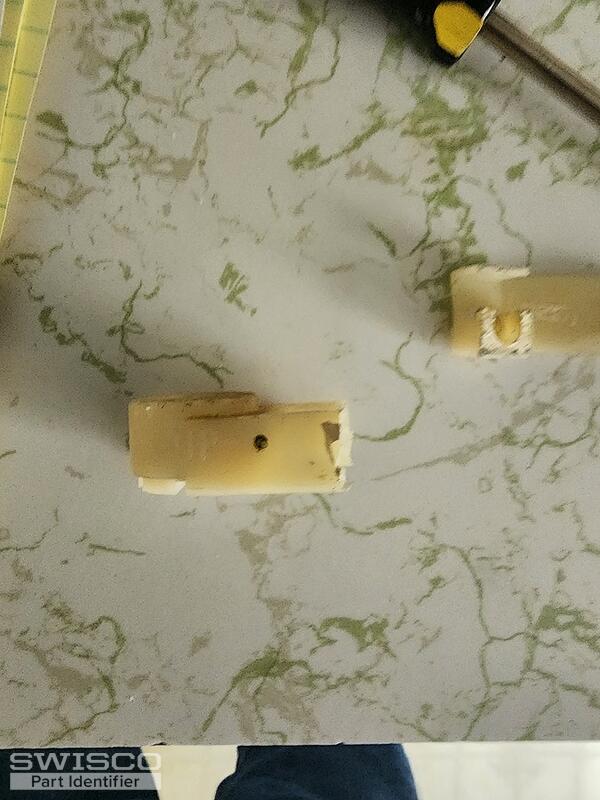

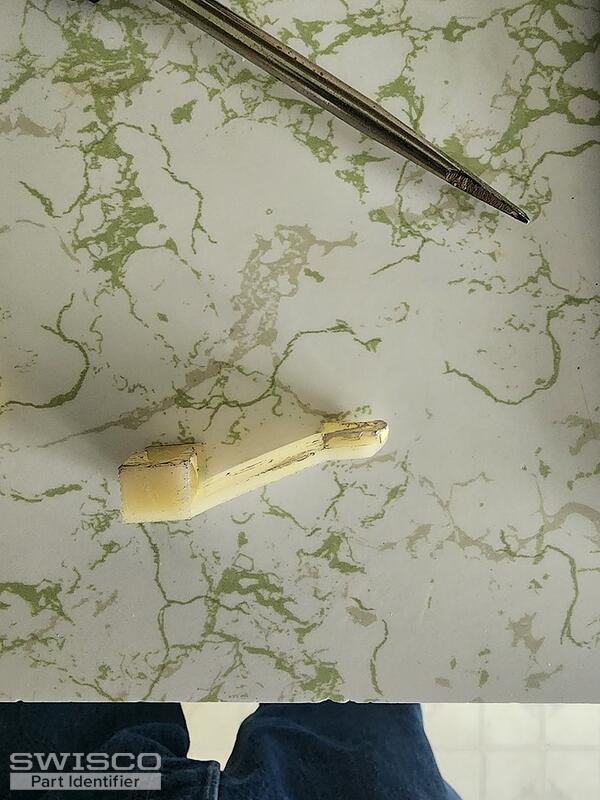

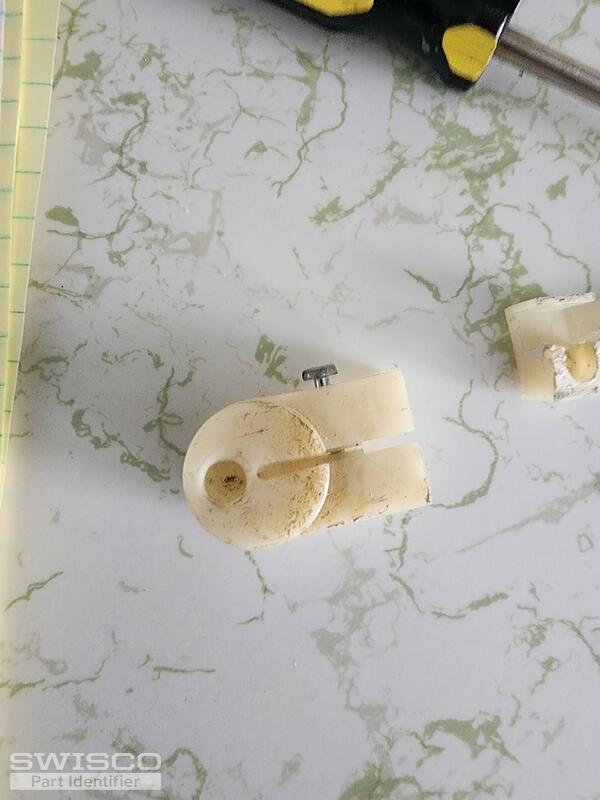

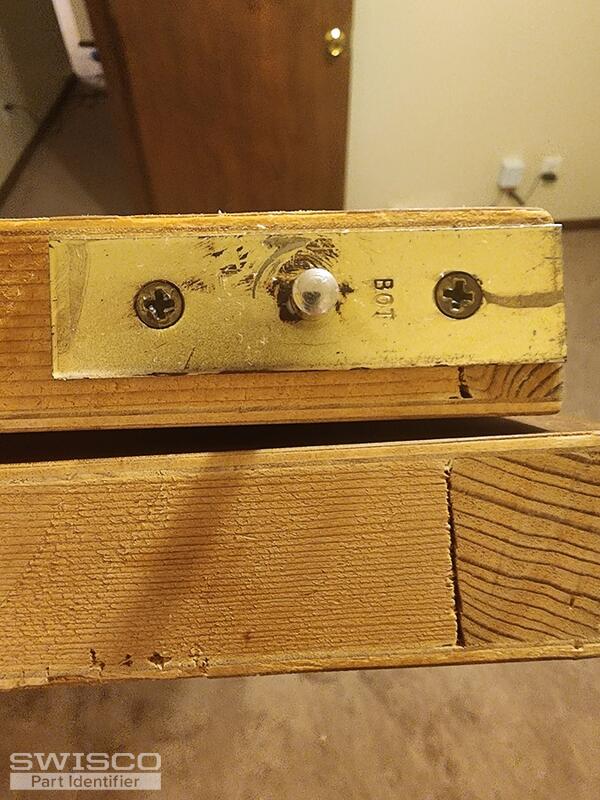

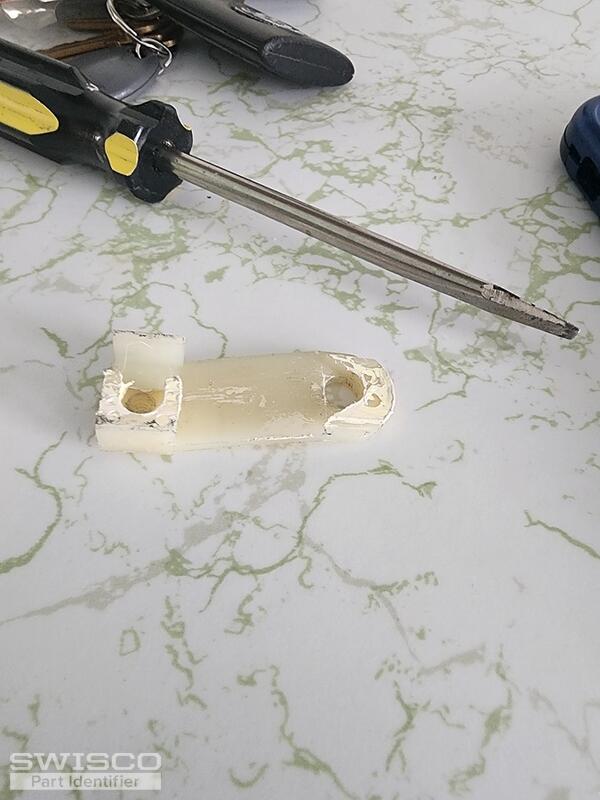

I have brass plates with Pins on wood bifold, probably from the mid to late 70's to early 80's. The plastic top pies that sits in the track is missing it is ramped so that the door can be angled in via the top track. The bottom has a metal bracket with pictured plactic piece that houses a round stepped height adjustment the set screw hold this in place and clamps to the bracket. Please help, fingers crossed!
4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

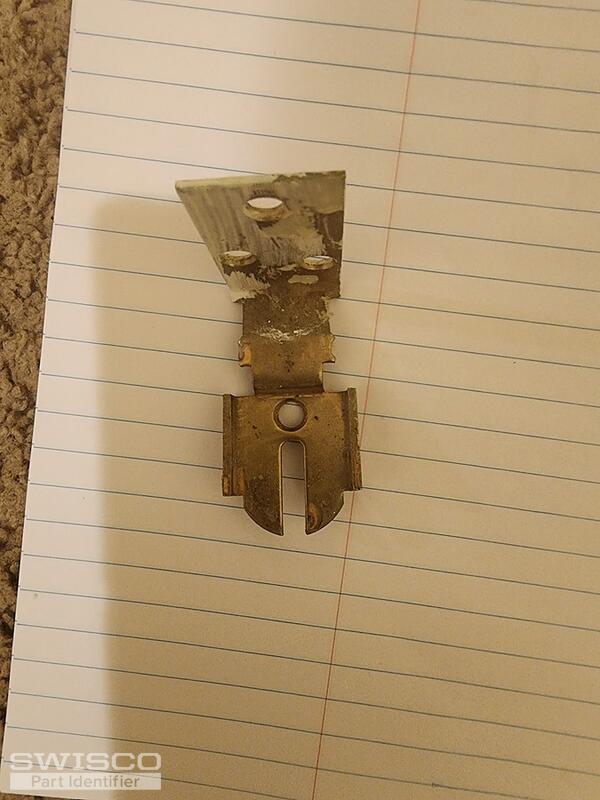

Unfortunately, I do not recognize the plastic guide shown in your photos. Could you show us the metal brackets that you mentioned where the guides install? That will give us a better idea of if any of our parts could work for your application. Thank you.

Quick Learner from Cleveland
4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Based on the information you've provided, you might be able to use the 23-134 top nylon pivot bracket that has somewhat of a ramp, along with the 23-292 bottom pivot bracket. We've also related some other Johnson parts on this page for you to review. Take a look and see how the specifications of these parts compare to yours.

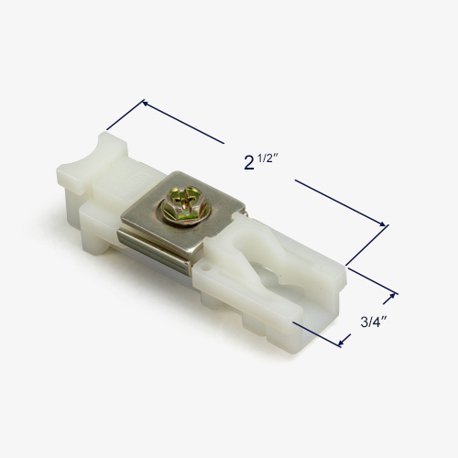

Dimensions for 23-134
Dimensions for 23-134

Dimensions for 23-292
Dimensions for 23-292
