Need help ID'ing balances and shoes

Quick Learner from NY

Jan 28, 2024 6:37 am

I need to replace two, 25" and two, 22" balances and the corresponding shoes.

I've looked at your various parts, but I can't figure out which ones to get.

The balances appear to be 3/8" diameter.

Attached are photos.

Can you ID which parts I need?

Thank you very much.

5 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Jan 29, 2024 2:56 pm

EXPERT

Hey there!

I recommend the Series 900 if the outer tube measures 3/8" in diameter. I can't identify the pivot shoe just yet though. Can you confirm the thickness and width of the pivot shoe? It can be hard to get accurate dimensions from photos of a tape measure.

Quick Learner from NY

Feb 6, 2024 1:37 pm

Sorry for the delay. Here are clear pictures showing the dimensions of the shoes:

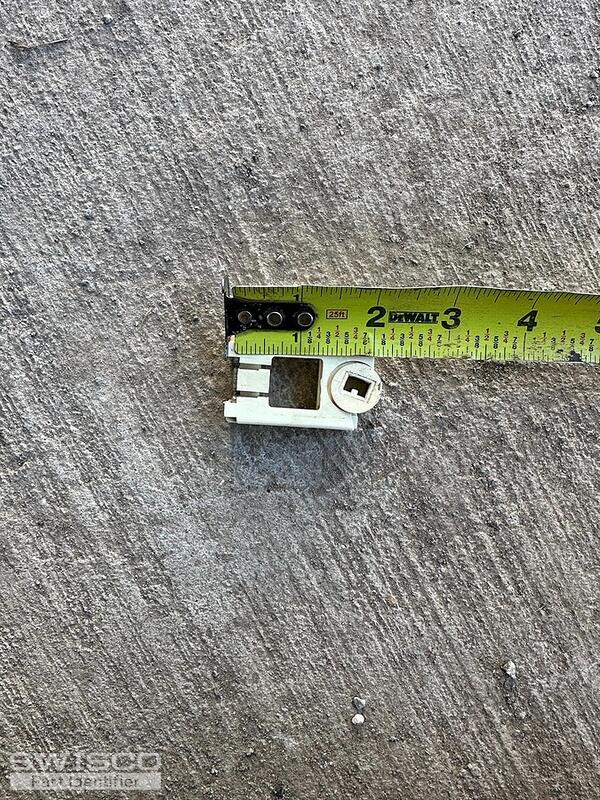

2" tall

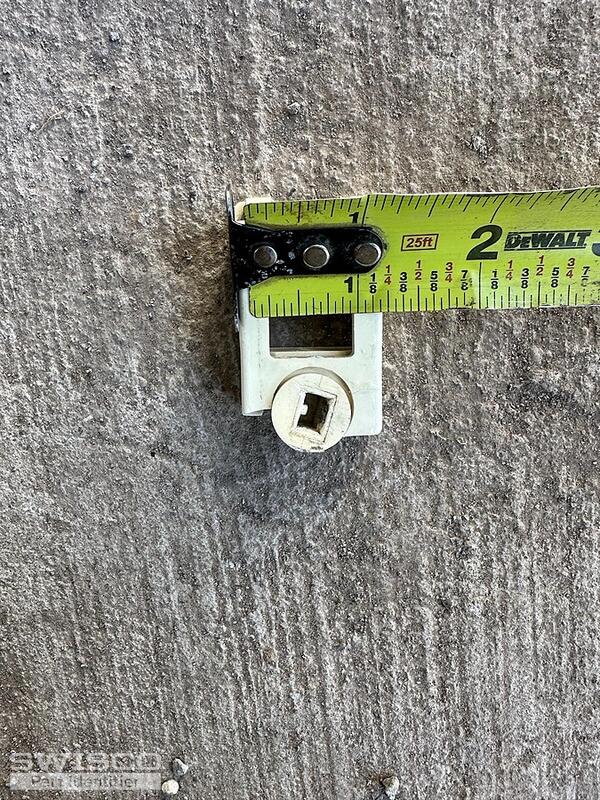

1-1/8" wide

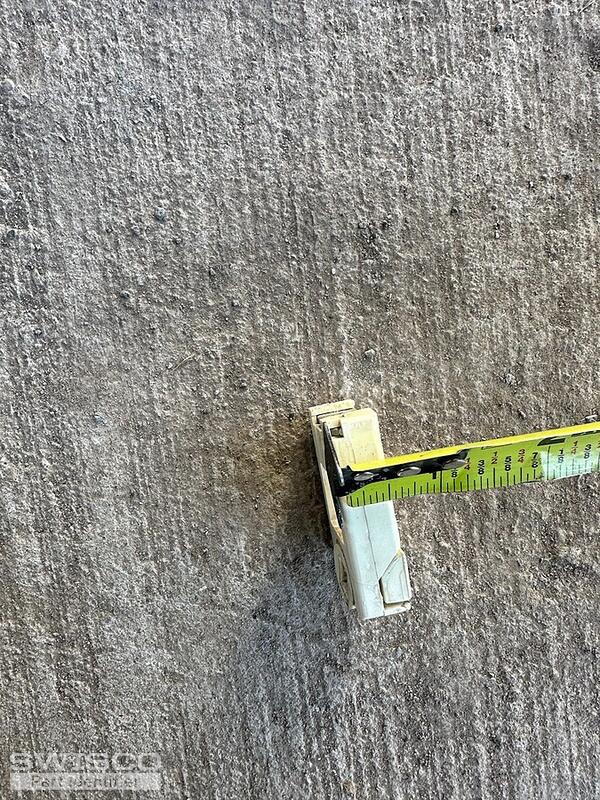

1/2" thick

4 user uploaded images

Paul from SWISCO

Feb 7, 2024 1:21 pm

EXPERT

Thanks for getting back to us. Your pivot shoe looks like the old Silverline shoe which has been replaced with the 15-046. Take a look at the specifications and see what you think.

As for the balance, you may want to double-check the outer tube diameter to be safe. I noticed you have a red nylon bearing and that usually correlates with the 5/8" diameter Series 600.
