Need new 2-mortise lock for patio door

Home Owner from Ormond Beach, Florida
May 6, 2024 3:46 pm
I have a sliding patio door. Ali-ADW-8 ATM 2190 ARG.

The mortise lock has broken, and needs to be replaced.
Please assist.

If needed, i will also purchase a new faceplate and door hardware.

Thank you.

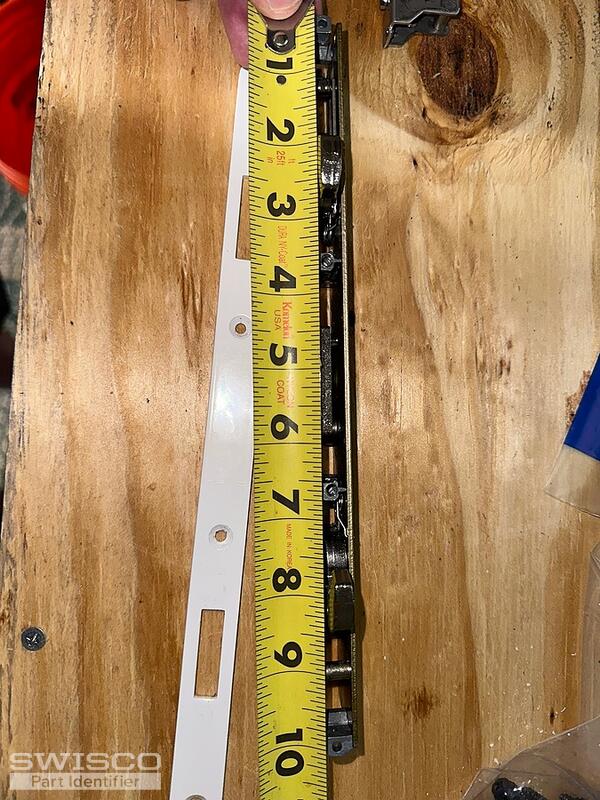

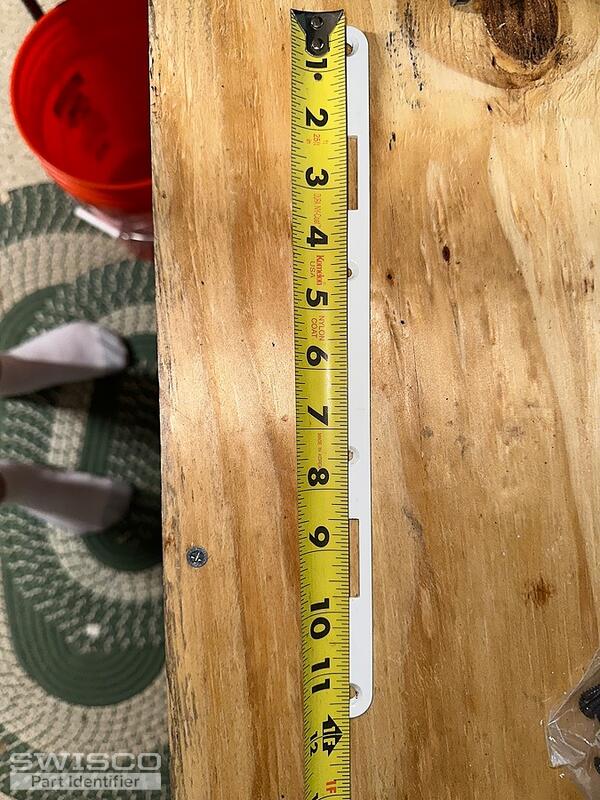

IMG_4865 IMG_4863 IMG_4862 IMG_4861 IMG_4860
5 user uploaded images
3 Replies
Lauren
Lauren from SWISCO
May 8, 2024 2:07 pm
SWISCO
EXPERT

Hello, thank you for posting,

Please review the 82-265 mortise lock that comes with a face plate attached. Compare the dimensions to your original to confirm a good fit!

This lock is designed to work with the 82-249 keeper. We cannot guarantee your original will be compatible. Take a look and let us know if you have any additional questions!

Home Owner from Ormond Beach, Florida
May 10, 2024 9:13 am
Is there a stainless steel version of this? As we live close to the ocean, if a stainless version is available, would purchase that.
Also, what handle set (with key) would go with this?
Thank you again.
Lauren
Lauren from SWISCO
May 10, 2024 10:51 am
SWISCO
EXPERT

We carry the 82-259 stainless steel mortise lock that is the same body, but we do not have a stainless steel face plate available. We cannot guarantee your original lock plate would match up with this lock. We also do not carry the 82-249 keeper in SS.

For the handle set, please start by reviewing the 82-086 keyed lock set that has a 3-15/16" installation hole spacing from center to center. Let us know what you think and if you have any questions!
